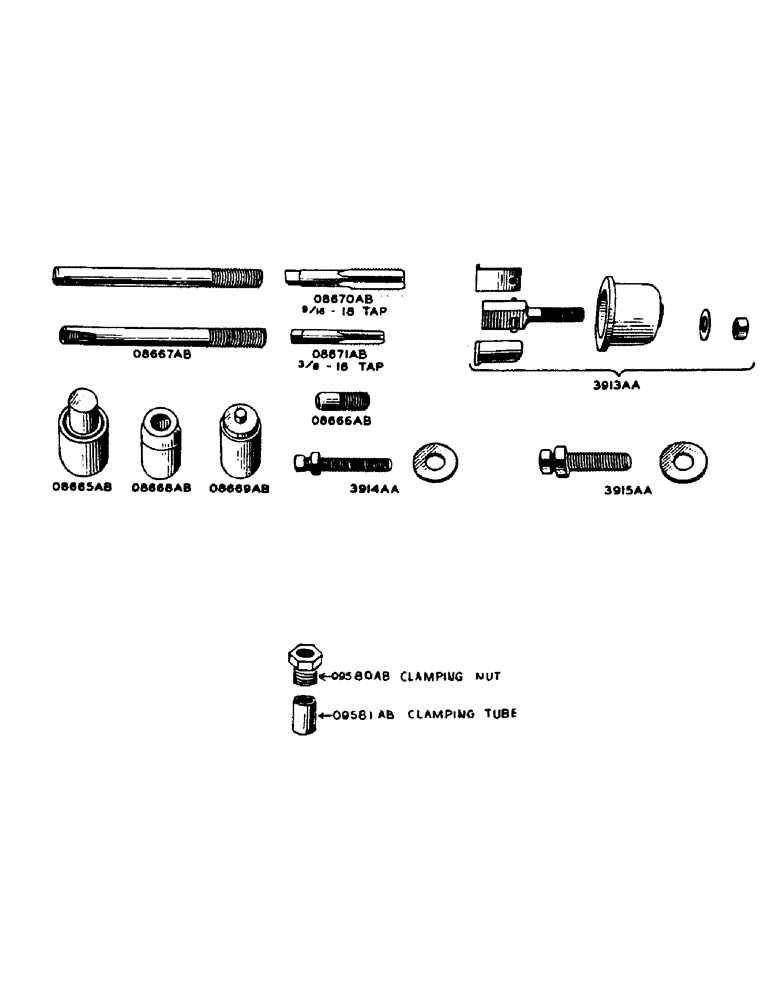

Запчасти Case IH D-SERIES (183) - SPECIAL TOOLS FOR SERVICING HYDRAULIC CONTROL UNIT (88) - ACCESSORIES

6083A

CUP - bearing puller (Use 3913AA)

1шт.

O8665AB

TOOL - bearing pressing

1шт.

O8666AB

STUD - dowel, short

1шт.

O8667AB

STUD - dowel, long

2шт.

O8668AB

THIMBLE - to assemble oil seal on piston rod

1шт.

O8669AB

TOOL - valve seat pressing (Relief valve)

1шт.

O8670AB

TAP - hand, 9/16" - 18 standard plug

1шт.

O8671AB

TAP - hand, 3/8" - 16 standard plug

1шт.

3913AA

PULLER - bearing

1шт.

3914AA

PULLER - relief valve seat (Consists of 1-O8685AB washer with 1-3/8" x 3" N.C. C.P. set screw and hex nut)

1шт.

3915AA

PULLER - ball check seat (Consists of 1-9/16" x 2-1/2" N.F. hex hd. cap screw - min. thrd. lgth. 2-1/4", 1-9/16" light, N.F. hex nut and 1-1/2" plain washer)

1шт.

3920AA

KIT - service (Consists of above listed items. This is a set of special tools for servicing the hydraulic control unit)

1шт.

O9580AB

NUT - clamping, relief valve, speial tools to install 4443AA service kit

1шт.

O9581AB

TUBE - relief valve clamping nut, special tools to install 4443AA service kit

1шт.
