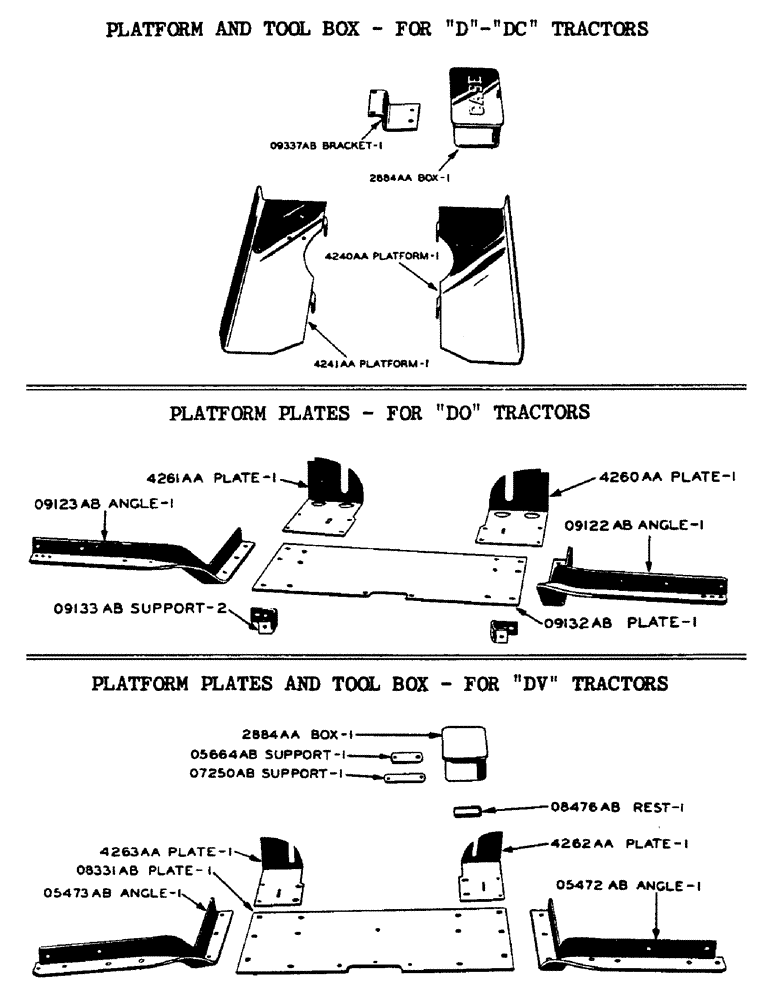

Запчасти Case IH D-SERIES (180) - PLATFORM PLATES & TOOLBOX FOR D & DC TRACTORS, FOR "DO" TRACTORS, & FOR DV TRACTORS D, DC, DO, DV (09) - CHASSIS

O5472AB

ANGLE - fender rear support, R.H. (DV)

1шт.

RIVET - 1/4" x 7/8" W.B. hd. (DV)

2шт.

RIVET - 5/16" x 5/8" W.B. hd. (DV)

1шт.

O5473AB

ANGLE - fender rear support, L.H. (DV)

1шт.

RIVET - 1/4" x 7/8" W.B. hd. (DV)

2шт.

RIVET - 5/16" x 5/8" W.B. hd. (DV)

1шт.

O5664AB

SUPPORT - tool box, front (For PTO) (DV)

1шт.

O7250AB

SUPPORT - tool box, rear (For PTO) (DV)

1шт.

SCREW - 1/2" x 1-1/2" hex hd. cap, N.C. thread (DV)

2шт.

O8331AB

PLATE - platform (Prior to tractor no. 8025740) (See 4067AA) (DV)

1шт.

SCREW - 3/8" x 1-1/4" hex hd. cap, N.F. thread (DV)

4шт.

NUT - 3/8" hex, light, N.F. thread (DV)

4шт.

WASHER - 3/8" std. lock (DV)

4шт.

O8476AB

REST - foot (DV)

2шт.

O9122AB

ANGLE - fender rear support, R.H. (DO)

1шт.

RIVET - 1/4" x 7/8" W.B. hd. (DO)

4шт.

O9123AB

ANGLE - fender rear support, L.H. (DO)

1шт.

RIVET - 1/4" x 7/8" W.B. hd. (DO)

4шт.

O9132AB

PLATE - platform (Prior to tractor no. 8025740) (See 4251AA) (DO)

1шт.

SCREW - 3/8" x 1-1/4" hex hd. cap, N.F. thread (DO)

4шт.

BOLT - 3/8" x 1-1/4" carr., less nut (DO)

4шт.

NUT - 3/8" hex, N.C. thread (DO)

4шт.

NUT - 3/8" hex, light, N.F. thread (DO)

4шт.

WASHER - 3/8" std. lock (DO)

8шт.

WASHER - 3/8" plain (DO)

4шт.

O9133AB

SUPPORT - platform outer (Prior to tractor no. 8025740) (DO)

2шт.

BOLT - 3/8" x 1-3/4" carr., less nut (DO)

2шт.

SCREW - 1/2" x 1-1/2" hex hd. cap, N.F. thread (DO)

2шт.

NUT - 3/8" hex, N.C. thread (DO)

2шт.

NUT - 1/2" hex, light, N.F. thread (DO)

2шт.

WASHER - 3/8" std. lock (DO)

2шт.

WASHER - 1/2" std. lock (DO)

2шт.

O9283AB

SPACER - tool box mounting bracket (D, DC)

1шт.

O9337AB

BRACKET - tool box (D, DC)

1шт.

SCREW - 5/16" x 3/4" truss hd. mach., N.C. thread (D, DC)

2шт.

NUT - 5/16" hex, N.C. thread (D, DC)

2шт.

WASHER - 5/16" std. lock (D, DC)

2шт.

2884AA

BOX - tool

1шт.

SCREW - 5/16" x 5/8" hex hd. cap, N.F. thread

2шт.

WASHER - 5/16" std. lock

2шт.

NUT - 5/16" hex light, N.F. thread

2шт.

4240AA

PLATFORM - R.H. (D, DC)

1шт.

BOLT - 3/8" x 2-1/4" carr., with hex nut (D, DC)

1шт.

WASHER - 3/8" std. lock (D, DC)

1шт.

WASHER - 3/8" plain (D, DC)

1шт.

4241AA

PLATFORM - L.H. (D, DC)

1шт.

BOLT - 3/8" x 2-1/4" carr., with hex nut (D, DC)

1шт.

WASHER - 3/8" std. lock (D, DC)

1шт.

WASHER - 3/8" plain (D, DC)

1шт.

4260AA

PLATE - platform, and brake ratchet pin bracket R.H. (DO)

1шт.

SCREW - 1/4" x 5/8" hex hd. cap, N.F. thread (DO)

1шт.

SCREW - 3/8" x 1" hex hd. cap, N.F. thread (DO)

2шт.

NUT - 1/4" hex, light, N.F. thread (DO)

1шт.

NUT - 3/8" hex, light, N.F. thread (DO)

2шт.

WASHER - 1/4" std. lock (DO)

1шт.

WASHER - 3/8" std. lock (DO)

2шт.

4261AA

PLATE - platform, and brake ratchet pin bracket, L.H. (DO)

1шт.

SCREW - 1/4" x 5/8" hex hd. cap, N.F. thread (DO)

1шт.

SCREW - 3/8" x 1" hex hd. cap, N.F. thread (DO)

2шт.

NUT - 1/4" hex, light, N.F. thread (DO)

1шт.

NUT - 3/8" hex, light, N.F. thread (DO)

2шт.

WASHER - 1/4" std. lock (DO)

1шт.

WASHER - 3/8" std. lock (DO)

2шт.

4262AA

PLATE - platform, and brake ratchet pin bracket, R.H. (DV)

1шт.

SCREW - 1/4" x 5/8" hex hd. cap, N.F. thread (DV)

2шт.

NUT - 1/4" hex, light, N.F. thread (DV)

2шт.

WASHER - 1/4" std. lock (DV)

2шт.

4263AA

PLATE - platform, and brake ratchet pin bracket, L.H. (DV)

1шт.

SCREW - 1/4" x 5/8" hex hd. cap, N.F. thread (DV)

2шт.

NUT - 1/4" hex, light, N.F. thread (DV)

2шт.

WASHER - 1/4" std. lock (DV)

2шт.
