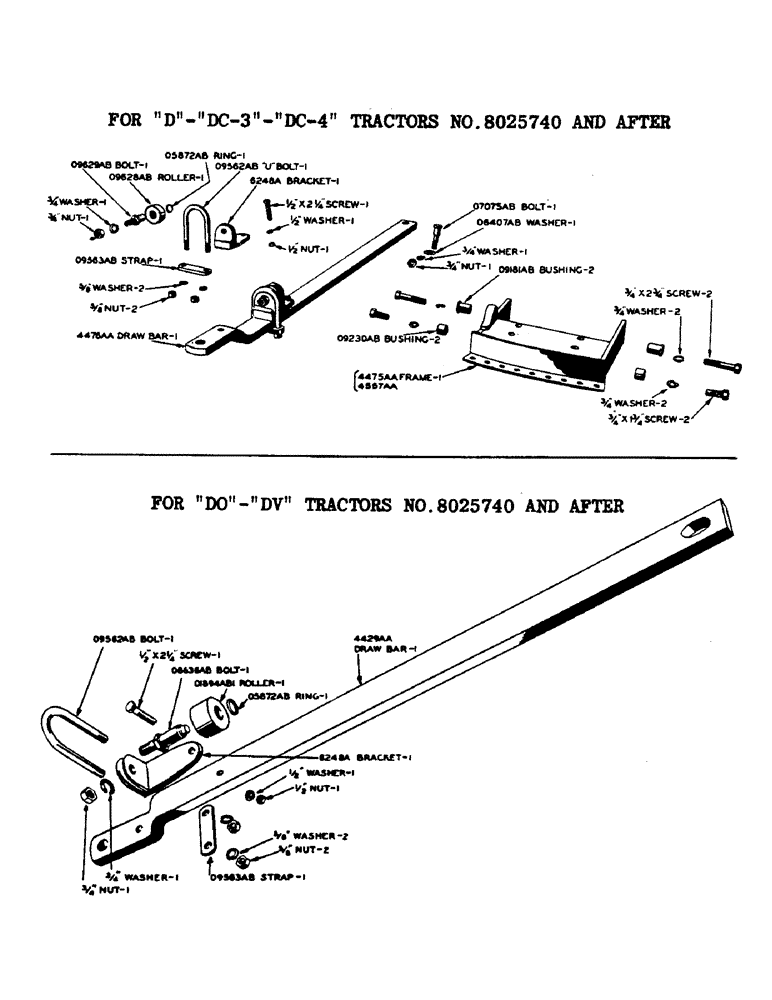

Запчасти Case IH D-SERIES (176) - DRAWBAR, FOR D, DC-3 & DC-4 TRAC. NO. 8025740 & AFTER, FOR DO & DV TRAC. NO. 8025740 & AFTER (09) - CHASSIS

5579A

X

BRACKET - draw bar pivot

1шт.

3/4" X 3-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

6209A

BRACKET - drawbar guide, for 4401AA draw bar (D, DC-3, DC-4)

1шт.

1/2" X 2-1/4" HEX. HD. CAP SCREW, N.F. THRD., WITH HEX NUT AND LOCKWASHER (D, DC-3, DC-4)

1шт.

6248A

BRACKET - draw bar roller (Tractor no. 8025740 and after)

1шт.

1/2" X 2-1/4" HEX. HD. CAP SCREW, N.F. THRD., WITH HEX. NUT AND LOCKWASHER

1шт.

O1894AB1

ROLLER - for 4429AA draw bar (Tractor no. 8025740 and after) (DC-4, DO, DV)

1шт.

O3857AB

BUSHING - draw bar support (D, DC-4, DO, DV)

4шт.

O5872AB

X

SNAP RING - for O836AB and O9629AB draw bar roller bolts

1шт.

O6088AB

X

ROLLER - draw bar (Prior to tractor no. 8025740) (D, DO, DV)

1шт.

O6089AB1

X

BOLT - for O6088AB draw bar roller (See O8636AB) (D, DO, DV)

1шт.

1/8" 45 DEGREES LINCOLN FITTING NO. 5200 (D, DO, DV)

1шт.

1-1/8" HEX. NUT, LIGHT, N.F. THRD. (D, DO, DV)

1шт.

1-1/8" STD. LOCKWASHER (D, DO, DV)

1шт.

O6090AB

X

SNAP RING - draw bar roller bolt (Prior to Tractor no. 8025740) (D, DO, DV)

1шт.

O6407AB

WASHER - draw bar pivot bolt

1шт.

O7075AB

X

BOLT - draw bar pivot

1шт.

3/4" hex. nut, light, N.F. thrd.

1шт.

3/4" std. lockwasher

1шт.

O8636AB

BOLT - for O1894AB1 draw bar roller (See O6089AB1) (DC-4, DO, DV)

1шт.

3/4" HEX. NUT, N.F. THRD. (DC-4, DO, DV)

1шт.

3/4" STD. LOCKWASHER (DC-4, DO, DV)

1шт.

1/8" STR. LINCOLN FITTING NO. 5000 (DC-4, DO, DV)

1шт.

O9181AB

BUSHING - draw bar guide frame (For Eagle hitch tractors) (D, DC-3, DC-4)

2шт.

3/4" X 2-3/4" N.C. HEX. HD. CAP SCREW, WITH LOCKWASHER (D, DC-3, DC-4)

2шт.

O9230AB

BUSHING - guide frame (D, DC-3, DC-4)

2шт.

O9562AB

"U" BOLT - draw bar guide bracket (For 4401AA, 4429AA and 4476AA draw bars)

1шт.

5/8" light hex. nut, N.F. thrd.

2шт.

5/8" std. lockwasher

2шт.

O9563AB

X

STRAP - draw bar guide bracket "U" bolt (For 4401AA, 4429AA and 4476AA draw bars)

1шт.

O9828AB

X

ROLLER - for 4476AA draw bar (Tractor no. 8025740 and after) (D, DC-3, DC-4)

1шт.

O9629AB

BOLT - for O9628AB draw bar roller (Tractor no. 8025740 and after) (D, DC-3, DC-4)

1шт.

1/8" STR. LINCOLN FITTING NO. 5000) (D, DC-3, DC-4)

1шт.

3/4" HEX. NUT, N.F. THRD. (D, DC-3, DC-4)

1шт.

3/4" STD. LOCKWASHER (D, DC-3, DC-4)

1шт.

2826AA

FRAME - draw bar guide (Prior to Tractor no. 8025740) (DC-4)

1шт.

A2831AA

BAR - draw (Use 4429AA)

1шт.

3264AA

ANGLE - guide, with support, for draw bar (Prior to tractor no. 8025740) (D, DO)

1шт.

3/8" X 1-1/4" MACH. BOLT, WITH LOCKWASHER (D, DO)

1шт.

3/8" X 1" N.F. HEX. HD. CAP SCREW, WITH HEX. NUT AND LOCKWASHER (D, DV)

4шт.

3277AA

BAR - draw, complete with O6088AB roller, O6089AB1 bolt and O6090AB snap ring (For tractors without PTO prior to No. 8025740) (See 4476AA and 4429AA) (D, DO, DV)

1шт.

5/8" X 1-3/4" HEX. HD. CAP SCREW, N.F. THRD. WITH HEX. NUT (D, DO, DV)

1шт.

3737AA

ANGLE - guide, with support, for draw bar (Prior to Tractor no. 8025740) (DV)

1шт.

3/8" X 1-1/4" MACH. BOLT, WITH LOCKWASHER (DV)

2шт.

3/8" X 1" N.F. HEX. HD. CAP SCREW, WITH HEX. NUT AND LOCKWASHER (DV)

4шт.

4067AA

ANGLE - draw bar guide and platform (For PTO) (See 3737AA) (DV)

1шт.

3/4" X 1-3/4" N.C. HEX. HD. CAP SCREW, WITH LOCKWASHER (DV)

2шт.

3/4" X 2" N.C. HEX. HD. CAP SCREW, WITH LOCKWASHER (DC)

2шт.

4203AA

BAR - draw (Use 4401AA)

1шт.

4251AA

ANGLE - draw bar guide and platform (For PTO) (See 3264AA) (DO)

1шт.

3/4" X 1-3/4" N.C. HEX. HD. CAP SCREW, WITH LOCKWASHER (DO)

2шт.

3/4" X 2" N.C. HEX. HD. CAP SCREW, WITH LOCKWASHER (DO)

2шт.

4329AA

FRAME - draw bar guide, with O9230AB bushings (For tractor with PTO prior to no. 8025740) (See 4475AA or 4557AA) (D, DC-3, DC-4)

1шт.

3/4" X 1-3/4" HEX. HD. CAP SCREW, N.C. THRD., WITH LOCKWASHER (D, DC-3, DC-4)

4шт.

4401AA

BAR - draw, reversible sliding type, complete (Consists of draw bar with 6209A bracket, O9562AB "U" bolt and O9563AB strap (For tractors with PTO prior to no. 8025740) (See 4476AA) (D, DC-3, DC-4)

1шт.

4429AA

BAR - draw, reversible roller type, complete (For tractors with PTO) (Consists of draw bar with 1 - 6248A, 1 - O1894AB1, 1 - O5872AB, 1 - O8636AB, 1 - O9562AB and 1 - O9563AB) (DO, DV)

1шт.

5/8" X 1-3/4" HEX. HD. CAP SCREW, N.F. THRD. WITH HEX NUT AND LOCKWASHER (DO, DV)

1шт.

4429AA

BAR - draw, reversible roller type, complete (For standard tractors) (See 4476AA) (DO)

1шт.

5/8" X 1-3/4" HEX. HD. CAP SCREW, N.F. THRD., WITH HEX. NUT AND LOCKWASHER (DC-4)

1шт.

4475AA

FRAME - draw bar guide, with O9230AB bushings (Tractor no. 8025740 and after) (See 4329AA) (DC-3, DC-4)

1шт.

4476AA

BAR - draw, reversible roller type complete (Consists of draw bar with 6248A bracket, O5872AB snap ring, O9562AB "U" bolt, O9563AB strap, O9628AB roller and O9629AB bolt) (Tractor no. 8025740 and after) (See 3277AA and 4401AA) (D, DC-3, DC-4)

1шт.

4557AA

FRAME - draw bar guide, with O9230AB bushings (Tractor no. 8025740 and after) (See 4329AA) (D)

1шт.

3/4" X 1-3/4" HEX. HD. CAP SCREW, N.C. THRD., WITH LOCKWASHER (D)

4шт.

3/4" X 2-1/4" HEX. HD. CAP SCREW, N.C. THRD., WITH LOCKWASHER (D)

2шт.
