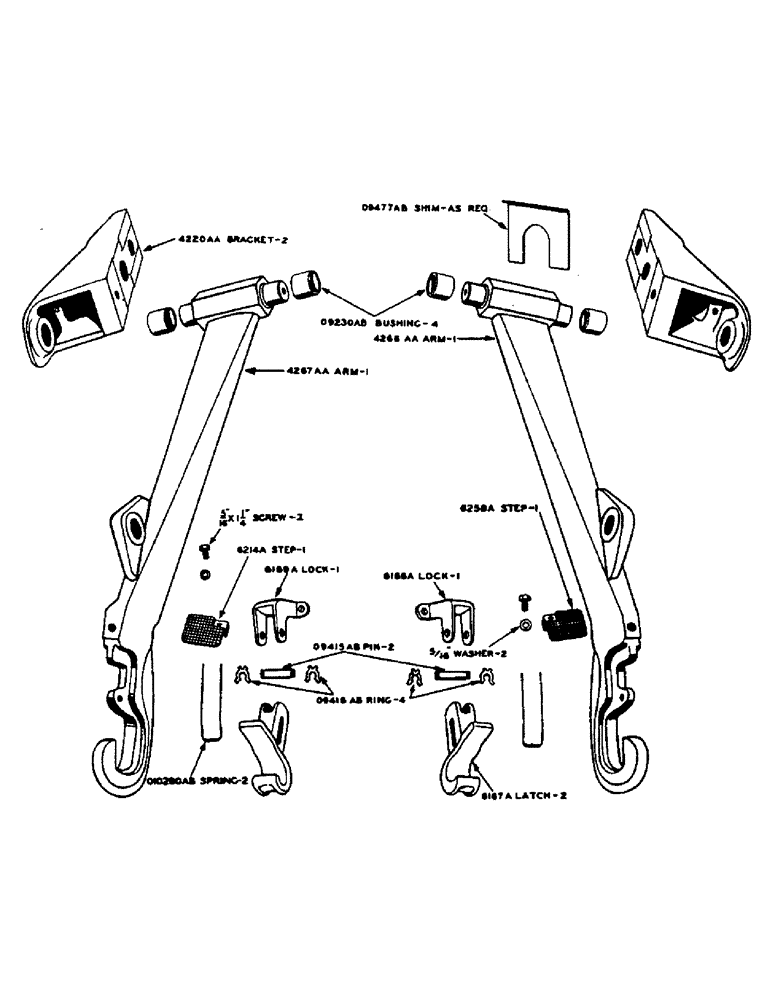

Запчасти Case IH D-SERIES (175) - EAGLE HITCH DRAFTING ARMS, FOR D, DC-3 AND DC-4 TRACTORS (09) - CHASSIS

6166A

BRACKET - (Use 4220AA)

1шт.

6167A

X

LATCH - Eagle hitch

2шт.

6168A

X

LOCK - Eagle hitch latch, R.H.

1шт.

No. 6 std. sash cord, 8-1/2 ft. long

1шт.

6169A

X

LOCK - Eagle hitch latch, L.H.

1шт.

No. 6 std. sash cord, 8-1/2 ft. long

1шт.

6214A

X

STEP - latch, L.H.

1шт.

5/16" x 1-1/4" N.C. hex hd. cap screw w/lockwasher

1шт.

6258A

X

STEP - latch, R.H. (Tractor no. 5621083 and after)

1шт.

5/16" x 1-1/4" N.C. hex hd. cap screw w/lockwasher

1шт.

6292A

BRACKET - (Use 4558AA)

1шт.

6293A

BRACKET - (Use 4559AA)

1шт.

O9228AB

X

SPRING - latch (For tractors without latch steps) (See O10280AB) (DC-3)

2шт.

5/16" x 1/2" N.C. hex hd. cap screw w/lockwasher (DC-3)

2шт.

O9229AB

X

WASHER - retainer, latch spring (Prior to tractor no. 5621083) (DC-3)

1шт.

O9230AB

BUSHING - draft arm pivot pin

4шт.

O9415AB

X

PIN - latch, Eagle hitch

2шт.

O9416AB

X

RING - retaining, latch pin

4шт.

O9477AB

SHIM - draw bar guide frame (#16 ga.)

1шт.

O10280AB

X

SPRING - latch (For tractors with latch steps) (See O9228AB)

2шт.

4220AA

BRACKET - draft arm pivot, with bushing (See 4558AA and 4559AA) (DC-3, DC-4)

2шт.

3/4" x 2" N.F. hex hd. cap screw w/hex nut and lockwasher (DC-3, DC-4)

2шт.

4266AA

ARM - draft, R.H. (See 4562AA) (DC-3, DC-4)

1шт.

4267AA

ARM - draft, L.H. (See 4563AA) (DC-3, DC-4)

1шт.

4558AA

BRACKET - draft arm pivot, with O9230AB bushing, R.H. (See 4220AA) (D)

1шт.

3/4" x 2" N.F. hex hd. cap screw w/hex nut and lockwasher (D)

1шт.

4559AA

BRACKET - draft arm pivot, with O9230AB bushing, L.H. (See 4220AA) (D)

1шт.

3/4" x 2" N.F. hex hd. cap screw w/hex nut and lockwasher (D)

1шт.

4562AA

ARM - draft, R.H. (See 4266AA) (D)

1шт.

4563AA

ARM - draft, L.H. (See 4267AA) (D)

1шт.
