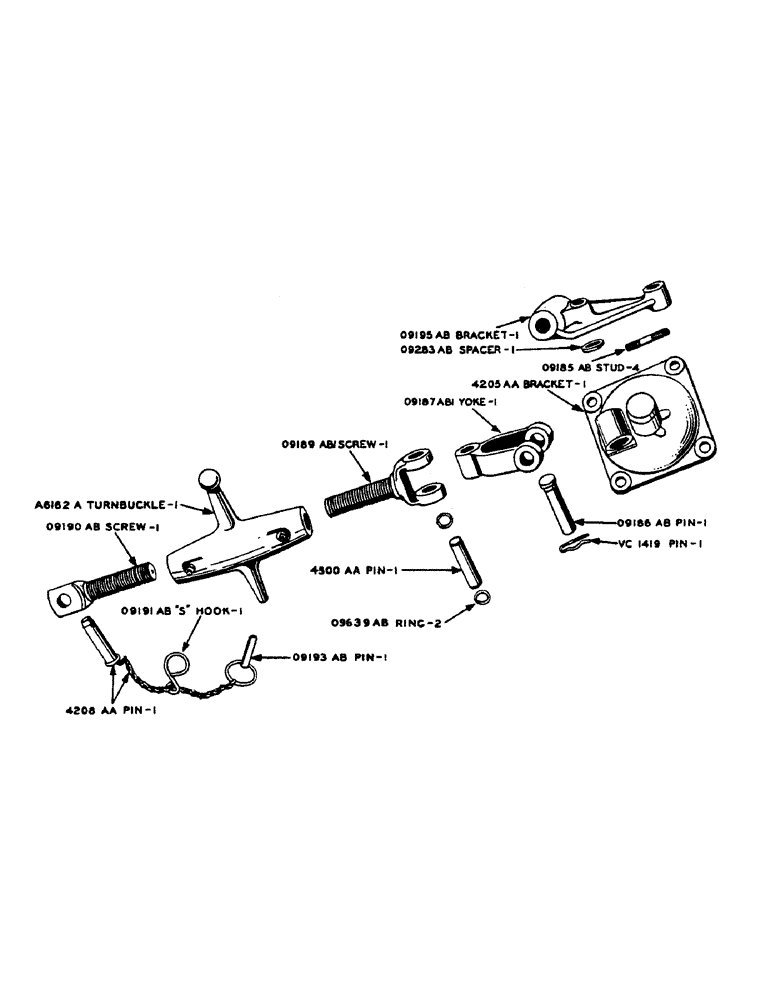

Запчасти Case IH D-SERIES (173) - DEPTH ADJUSTING SCREW, FOR D, DC-3 AND DC-4 TRACTORS (09) - CHASSIS

6162A

TURNBUCKLE - (Use A6162A)

1шт.

A6162A

TURNBUCKLE - depth adjusting screw

1шт.

1/8" str. Lincoln fitting no. 5000

2шт.

6181A

X

BRACKET - (Use 4205AA)

1шт.

O6044AB

X

SNAP RING - for O9188AB pin (See O9639AB)

2шт.

O9185AB

X

STUD - mounting bracket

4шт.

1/2" N.F. hex nut

4шт.

1/2" std. lockwasher

4шт.

O9186AB

PIN - yoke, depth adjusting screw

1шт.

O9187AB1

YOKE - depth adjusting screw

1шт.

O9188AB

PIN - (Use 4500AA)

1шт.

O9189AB1

SCREW - depth adjusting, front (L.H. thread)

1шт.

O9190AB

SCREW - depth adjusting, rear

1шт.

1-1/8" N.C. hex jam nut

1шт.

O9191AB

X

"S" HOOK - mast pin chain

1шт.

O9193AB

PIN - keeper, mast pin

1шт.

O9195AB

BRACKET - mounting, adjusting screw, upper

1шт.

1/2" x 2" N.C. hex hd. cap screw

1шт.

1/2" x 2-3/4" N.C. hex hd. cap screw

1шт.

O9283AB

SPACER - upper mounting bracket (Prior to tractor no. 8025740)

1шт.

O9639AB

X

"E" RING - retaining, depth adjusting screw pin (For 4500AA pin) (See O6044AB)

2шт.

VC1419

X

COTTER - hair pin, for O9186AB pin

1шт.

4205AA

X

BRACKET - mounting, depth adjusting screw, with PTO shaft guard

1шт.

4208AA

PIN - Eagle hitch mast, with chain

1шт.

4500AA

PIN - depth adjusting screw, with 2 - O9639AB "E" rings

1шт.
