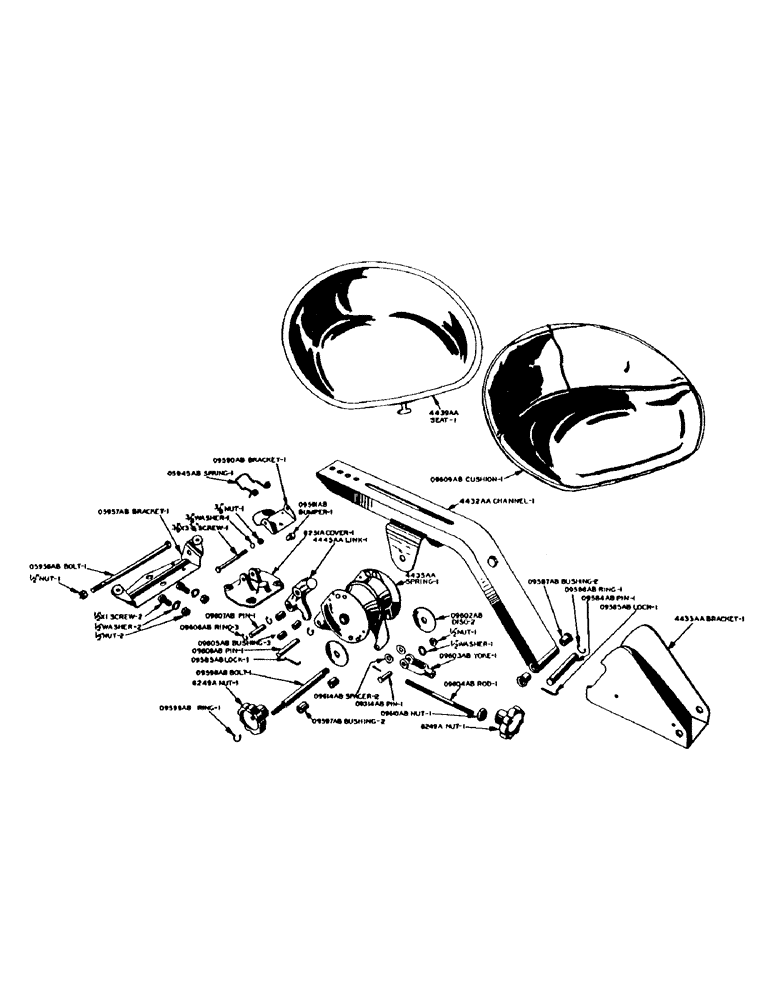

Запчасти Case IH D-SERIES (138) - EASY RIDE OPERATORS SEAT, FOR D, DC-3, DC-4 TRACTORS NO. 8025740 AND AFTER (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
6249A
NUT - adjusting hand wheel
2шт.
6250A
LINK - (Use 4445AA)
1шт.
6251A
COVER - hydraulic pump housing, supports seat
1шт.
1/2" x 1-1/4" N.C. hex hd. cap screw, w/lockwasher
4шт.
O5945AB
SPRING - starting crank holder (DC-3)
1шт.
O5954AB
HINGE - seat
1шт.
O5956AB
BOLT - seat hinge
1шт.
1/2" - 20 light catellated nut, N.F. thread
1шт.
3/32" x 7/8" cotter pin
1шт.
O5957AB
BRACKET - seat rear support
1шт.
1/2" x 1" N.F. hex hd. cap screw w/hex nut and lockwasher
2шт.
O6935AB
X
BUMPER - seat rear support
2шт.
No. 10 x 3/4" rhd. mach. screw w/hex nut and lockwasher
2шт.
O9314AB
X
PIN - for O9603AB yoke
1шт.
3/32" x 3/4" cotter pin
1шт.
O9584AB
PIN - pivot, seat channel
1шт.
O9585AB
X
LOCK - for O9584AB and O9606AB pins
2шт.
O9586AB
X
RING - retaining, for O9584AB pin
1шт.
O9587AB
X
BUSHING - seat channel pivot pin
2шт.
O9590AB
BRACKET - starting crank holder and seat bumper
1шт.
3/8" x 3-3/4" N.F. hex hd. cap screw w/hex nut and lockwasher
1шт.
O9591AB
BUMPER - seat
1шт.
O9597AB
BUSHING - for O9598AB pivot bolt
2шт.
O9598AB
X
BOLT - pivot, seat moutning
1шт.
1/2" N.F. hex jam nut, light
1шт.
1/2" std. lockwasher
1шт.
O9599AB
X
"E" RING - retaining, for O9598AB pivot bolt
1шт.
O9602AB
X
DISC - friction, for 4435AA torsion spring assembly
2шт.
O9603AB
X
YOKE - seat mounting adjusting rod
1шт.
O9604AB
ROD - seat mounting adjusting
1шт.
O9605AB
X
BUSHING - for 4445AA support link
3шт.
O9606AB
PIN - seat mounting support link, upper
1шт.
O9607AB
PIN - seat mounting support link, lower
1шт.
O9608AB
X
RING - retaining, for O9606AB and O9607AB link pins
3шт.
O9609AB
CUSHION - seat
1шт.
O9610AB
NUT - for O9604AB adjusting rod
1шт.
O9614AB
SPACER - adjusting rod yoke pin
2шт.
4432AA
CHANNEL - seat
1шт.
4433AA
BRACKET - seat channel, front end
1шт.
5/8" x 1-1/4" N.C. hex hd. cap screw w/lockwasher
2шт.
4435AA
SPRING - rubber torsion, and side arm assembly
1шт.
4439AA
SEAT - operator's
1шт.
1/2" x 1" N.F. hex hd. cap screw w/hex nut and lockwasher
2шт.
4445AA
LINK - seat mounting support, with 3 - O9605AB bushings
1шт.
Выбрано товаров: 44
