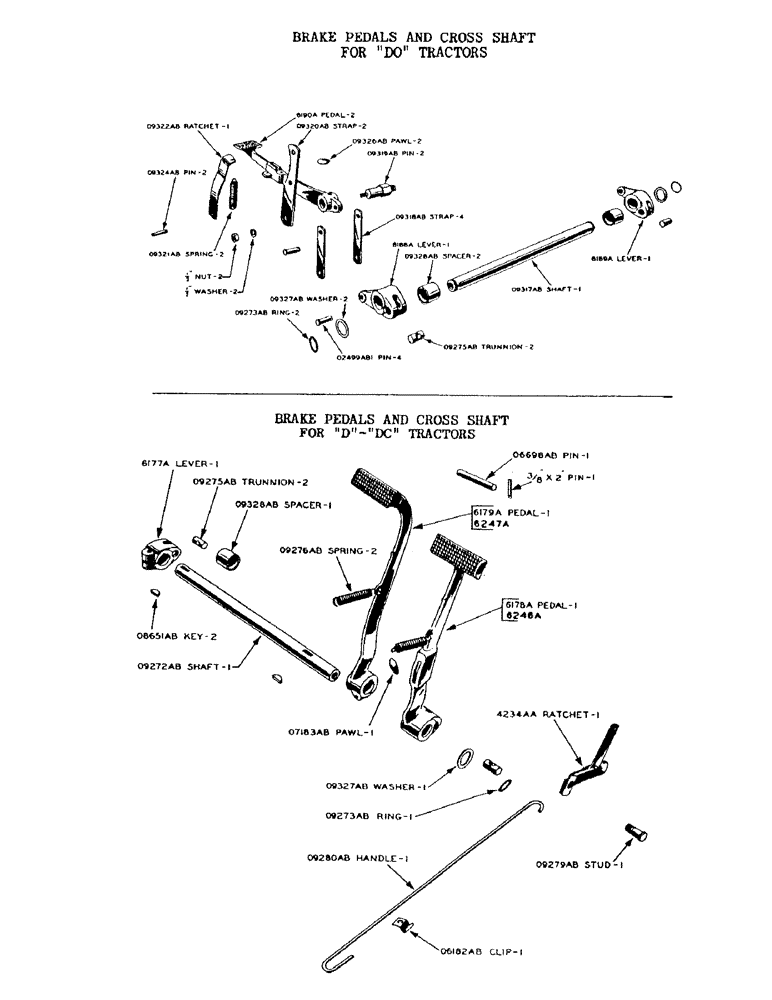

Запчасти Case IH D-SERIES (079) - BRAKE PEDALS AND CROSS SHAFT FOR "DO" TRACTORS, D, DC, DO, DV (07) - BRAKES

6177A

LEVER - cross shaft (D, DC)

1шт.

SCREW - 1/2" x 2-1/2" hex hd. cap, N.F. thread (D, DC)

1шт.

NUT - 1/2" hex, light, N.F. thread (D, DC)

1шт.

WASHER - 1/2" std. lock (D, DC)

1шт.

6178A

PEDAL - foot, R.H. (Prior to tractor no. 8025740) (See 6246A) (D, DC)

1шт.

6179A

PEDAL - foot, L.H. (Prior to tractor no. 8025740) (See 6247A) (D, DC)

1шт.

SCREW - 1/2" x 2-1/2" hex hd. cap, N.F. thread (D, DC)

1шт.

WASHER - 1/2" std. lock (D, DC)

1шт.

NUT - 1/2" hex, light, N.F. thread (D, DC)

1шт.

6188A

LEVER - cross shaft, R.H. (DO, DV)

1шт.

6189A

LEVER - cross shaft, L.H. (DO, DV)

1шт.

6190A

PEDAL - foot (DO, DV)

2шт.

FITTING - 1/8" straight, Lincoln no. 5000 (DO, DV)

2шт.

6246A

PEDAL - brake, R.H. (Tractor no. 8025740 and after) (See 6178A) (D, DC)

1шт.

6247A

PEDAL - brake, L.H. (Tractor no. 8025740 and after) (See 6179A) (D, DC)

1шт.

SCREW - 1/2" x 2-1/2" N.F. hex hd. cap, w/nut and lockwasher (D, DC)

1шт.

O2499AB1

X

PIN - tension strap (DO, DV)

4шт.

PIN - 1/8" x 1" cotter (DO, DV)

4шт.

O6182AB

CLIP - for O9280AB handle (D, DC)

1шт.

SCREW - 5/16" x 5/8" round head machine (D, DC)

1шт.

NUT - 5/16" hex, N.C. thread (D, DC)

1шт.

WASHER - 5/16" std. lock (D, DC)

1шт.

O6698AB

PIN - foot pedal lock (D, DC)

1шт.

PIN - 3/8" x 2" type 1 groove (D, DC)

1шт.

O7183AB

X

PAWL - brake pedal (D, DC)

1шт.

SCREW - 3/8" x 7/8" hex hd. cap, N.C. thread (D, DC)

1шт.

WASHER - 3/8" std. lock (D, DC)

1шт.

O7270AB

BRACKET - ratchet handle, R.H. (DV)

1шт.

SCREW - 1/4" x 1-1/2" hex hd. cap, N.F. thread (DV)

1шт.

NUT - 1/4" hex, light, N.F. thread (DV)

1шт.

WASHER - 1/4" std. lock (DV)

1шт.

O7271AB

BRACKET - ratchet handle, L.H. (DV)

1шт.

SCREW - 1/4" x 1-1/2" hex hd. cap, N.F. thread (DV)

1шт.

NUT - 1/4" hex, light, N.F. thread (DV)

1шт.

WASHER - 1/4" std. lock (DV)

1шт.

O8651AB

X

KEY - Woodruff, for O9272AB shaft (D, DC)

2шт.

O9272AB

SHAFT - cross (D, DC)

1шт.

FITTING - 1/8" straight, Lincoln no. 5000 (D, DC)

2шт.

O9273AB

SNAP RING - cross shaft (D, DC)

1шт.

O9273AB

SNAP RING - cross shaft (DO, DV)

2шт.

O9275AB

X

TRUNNION - brake rod

2шт.

O9276AB

X

SPRING - pedal return (D, DC)

2шт.

O9279AB

STUD - pedal ratchet (D, DC)

1шт.

O9280AB

HANDLE - brake pedal ratchet (D, DC)

1шт.

O9317AB

SHAFT - cross (DO, DV)

1шт.

FITTING - 1/8" straight, Lincoln no. 5000 (DO, DV)

2шт.

O9318AB

STRAP - tension (DO, DV)

4шт.

O9319AB

PIN - pedal fulcrum (DO, DV)

2шт.

NUT - 1/2" hex, light, N.F. thread (DO, DV)

2шт.

WASHER - 1/2" std. lock (DO, DV)

2шт.

O9320AB

STRAP - pedal pin support (DO)

2шт.

SCREW - 5/8" x 1-1/4" hex hd. cap, N.C. thread (DO)

4шт.

WASHER - 5/8" std. lock (DO)

4шт.

O9321AB

X

SPRING - pedal return (DO, DV)

2шт.

O9322AB

RATCHET - pedal R.H. (DO, DV)

1шт.

O9323AB

RATCHET - pedal L.H. (DO, DV)

1шт.

O9324AB

PIN - ratchet (DO, DV)

2шт.

PIN - 3/32" x 5/8" cotter (DO, DV)

4шт.

O9326AB

X

PAWL - brake pedal (DO, DV)

2шт.

SCREW - 3/8" x 7/8" round head machine (DO, DV)

2шт.

WASHER - 3/8" std. lock (DO, DV)

2шт.

O9327AB

WASHER - cross shaft (D, DC)

1шт.

O9327AB

WASHER - cross shaft (DO, DV)

2шт.

O9328AB

SPACER - cross shaft (D, DC)

1шт.

O9328AB

SPACER - cross shaft (DO, DV)

2шт.

O9332AB

STRAP - pedal pin support, R.H. (DV)

1шт.

SCREW - 5/8" x 1-1/4" hex hd. cap, N.C. thread (DV)

2шт.

WASHER - 5/8" std. lock (DV)

2шт.

O9333AB

STRAP - pedal pin support, L.H. (DV)

1шт.

SCREW - 5/8" x 1-1/4" hex hd. cap, N.C. thread (DV)

2шт.

WASHER - 5/8" std. lock (DV)

2шт.

4234AA

RATCHET - differential brake (D, DC)

1шт.
