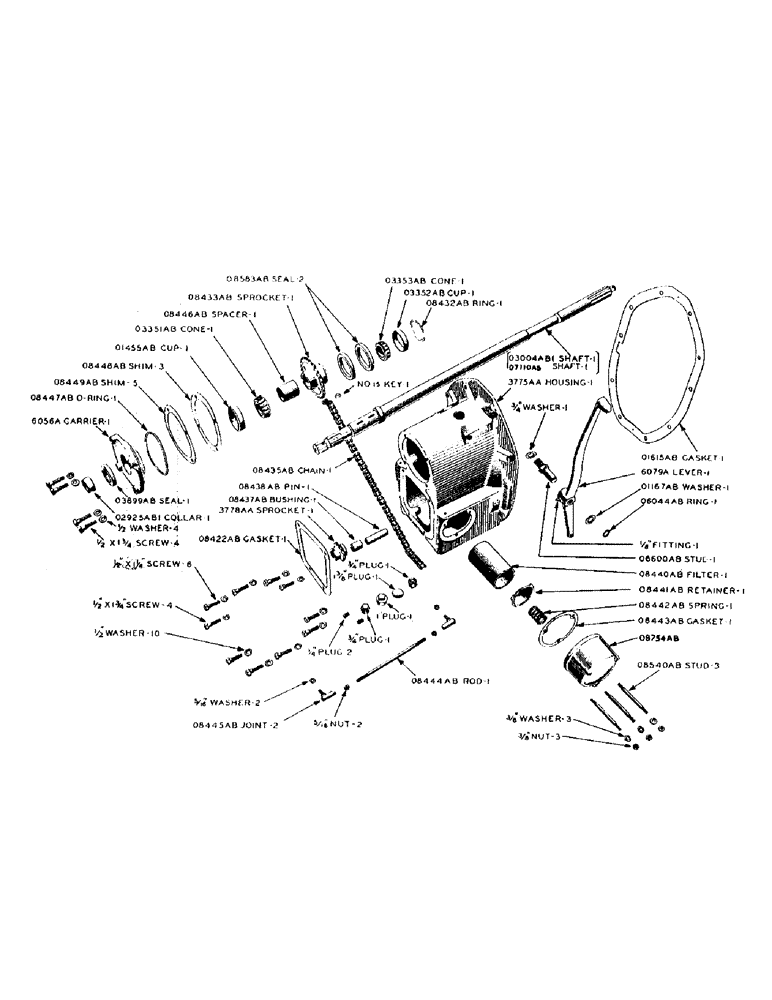

Запчасти Case IH D-SERIES (154) - HYDRAULIC CONTROL UNIT, MAIN HOUSING AND PUMP DRIVE, D, DC, DO (08) - HYDRAULICS

6053A

COVER, hydraulic pump filter (Use O8754AB)

1шт.

6055A

HOUSING, hydraulic main. Use A3775AA, O9370AB and O9371AB brackets

1шт.

A6055A

HOUSING, hydraulic main. Use A3775AA

1шт.

6079A

LEVER, valve control hand (DC)

1шт.

FITTING, 1/8" straight Lincoln (DC)

1шт.

6084A

LEVER, valve control hand (D, DO)

1шт.

FITTING, 1/8" straight Lincoln (D, DO)

1шт.

O1167AB

X

WASHER, hydraulic valve control hand lever

1шт.

O1615AB

X

GASKET, hydraulic main housing

1шт.

O6044AB

X

RING, hydraulic valve control hand lever stud snap

1шт.

O6600AB

STUD, hydraulic valve control hand lever

1шт.

WASHER, 3/4" standard lock

1шт.

O8422AB

X

GASKET, hydraulic valve body

1шт.

O8432AB

X

RING, snap, for hydraulic main housing

1шт.

O8433AB

SPROCKET, hydraulic pump drive

1шт.

O8435AB

X

CHAIN, hydraulic pump drive (39 links and 1 connecting link of no. 50 roller chain)

1шт.

O8437AB

BUSHING, for 3778AA driven sprocket

1шт.

O8438AB

PIN, driven sprocket bearing

1шт.

O8439AB

X

COUPLING, pump drive

1шт.

O8440AB

X

FILTER, oil, hydraulic pump

1шт.

O8441AB

X

RETAINER, hydraulic pump filter

1шт.

O8442AB

X

SPRING, hydraulic pump filter

1шт.

O8443AB

X

GASKET, hydraulic pump filter cover

1шт.

O8444AB

ROD, hydraulic valve control

1шт.

NUT, 5/16" hexagon jam, N.F. thread

2шт.

O8445AB

X

JOINT, hydraulic valve control rod ball

2шт.

WASHER, 5/16" standard lock

2шт.

O8540AB

STUD, hydraulic pump filter cover (Use with 6053A)

3шт.

NUT, 3/8" hexagon, light, N.F. thread w/lockwasher

3шт.

O8754AB

COVER - hydraulic pump filter

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

3шт.

O8755AB

X

FILTER - oil, hydrualic pump

1шт.

A3775AA

HOUSING, hydraulic main

1шт.

PLUG, 3/4" Lisle Magnetic no. 403KQ square head pipe

1шт.

PLUG, 1/4" square head pipe

2шт.

PLUG, 3/4" square head pipe

1шт.

PLUG, 1" square head pipe

1шт.

PLUG, 1-3/8" Welch

1шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.C. thread (Fastens housing to platform) w/lockwasher

2шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread w/lockwasher

4шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

6шт.

3778AA

SPROCKET WITH BUSHING, hydrualic pump driven

1шт.

6056A

CARRIER, power take-off shaft bearing

1шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

4шт.

WASHER, 1/2" standard lock

4шт.

O6693A

BEARING, front end, power take-off shaft, new departure no. 1305

1шт.

O8909AB

SPRING, power take-off shift rod

1шт.

O907AB

WASHER, power take-off shaft, front end

1шт.

O1455AB

X

CUP, power take-off shaft rear bearing

1шт.

O1616AB

COVER, power take-off, front end

1шт.

O1815AB

X

NUT, power take-off shaft, front end

1шт.

O1816AB

WASHER, power take-off, front end

1шт.

O1818AB

CLUTCH, power take-off shaft gear

1шт.

O1920AB

FORK, shifter, power take-off

1шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread

1шт.

WASHER, 3/8" standard lock

1шт.

O2144AB

X

GASKET, front cover, power take-off

1шт.

O2925AB1

COLLAR, power take-off shaft

1шт.

O3004AB1

SHAFT, power take-off

1шт.

PIN, 1/8" x 1-1/4" cotter

1шт.

KEY, no. 15 Woodruff

1шт.

O3351AB

CONE, power take-off shaft rear bearing

1шт.

O3352AB

CUP, power take-off shaft front bearing

1шт.

O3353AB

X

CONE, power take-off shaft front bearing

1шт.

O3674AB

PLUNGER, power take-off shifter

1шт.

O3899AB

X

SEAL, power take-off shaft rear oil

1шт.

O4244AB

SEAL, power take-off shifter shaft oil

1шт.

O5386AB

PLATE, power take-off guard mounting

1шт.

BOLT, 3/8" x 1" carriage

2шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.F. thread

2шт.

NUT, 3/8" hexagon, light, N.F. thread

2шт.

WASHER, 3/8" standard lock

2шт.

WASHER, 3/8" type 40 Shakeproof no. 4020-26 lock

2шт.

WASHER, 3/8" plain

1шт.

O6102AB

BUSHING, power take-off gear

1шт.

O7110AB

SHAFT, power take-off

1шт.

PIN, 5/16" x 1" type 5 center groove

1шт.

O8303AB

X

GUARD, power take-off

1шт.

O8446AB

SPACER, power take-off shaft pipe

1шт.

O8447AB

X

O-RING, power take-off shaft bearing carrier

1шт.

O8448AB

SHIM (.005" thick)

3шт.

O8449AB

X

SHIM (.0125" thick)

5шт.

O8583AB

X

SEAL, power take-off front oil

2шт.

O8794AB

GUARD - PTO shaft tubular

1шт.

A623AA

SHIELD, tubular, power take-off shaft (Use O8794AB)

1шт.

736AA

SUPPORT, with spring power take-off front cover

1шт.

2872AA

GEAR, with bushing, power take-off

1шт.

2897AA

LEVER, power take-off shift head

1шт.
