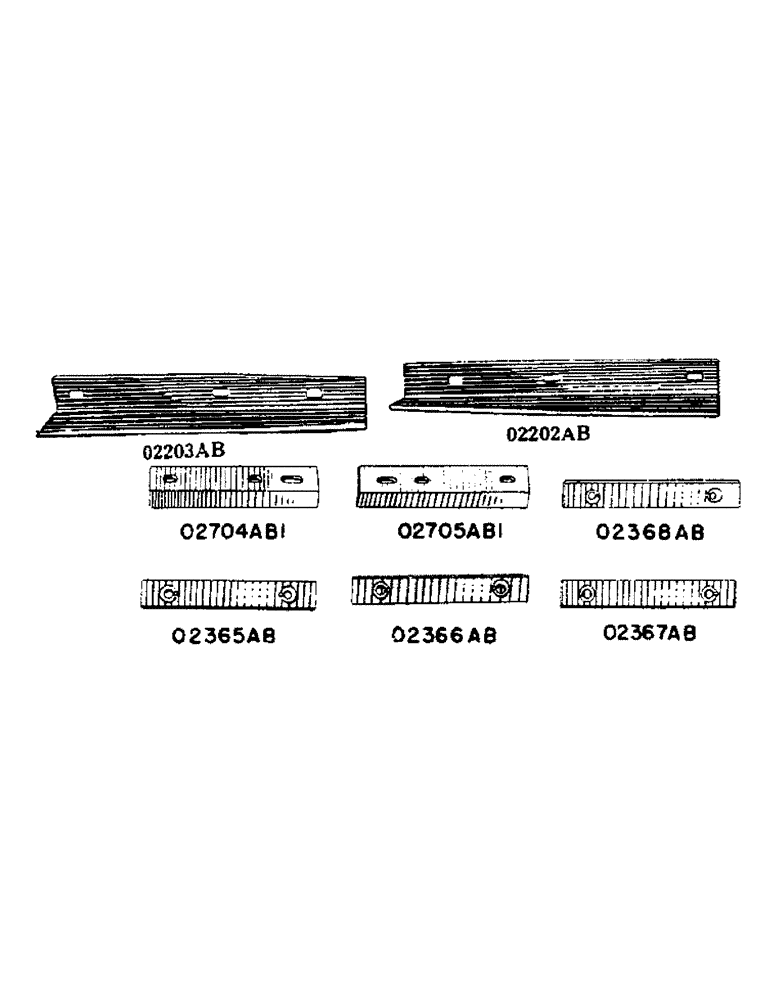

Запчасти Case IH D-SERIES (094) - REAR WHEEL GROUTERS, MODEL "D" TRACTOR (06) - POWER TRAIN

O2202AB

GROUTER, angle, R.H. 3-1/2" x 20". See 215AA

12шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut

24шт.

WASHER, 5/8" standard lock

24шт.

O2203AB

GROUTER, angle, L.H. 3-1/2" x 20". See 215AA

12шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut

24шт.

WASHER, 5/8" standard lock

24шт.

O2365AB

GROUTER, road, R.H., 1" x 13-3/16". See 309AA

24шт.

BOLT, 5/8" x 2" no. 7 key head plow bolt with hex. nut

48шт.

WASHER, 5/8" standard lock

48шт.

O2366AB

GROUTER, road, L.H., 1" x 13-3/16". See 309AA

24шт.

BOLT, 5/8" x 2" no. 7 key head plow bolt with hex. nut

48шт.

WASHER, 5/8" standard lock

48шт.

O2367AB

GROUTER, road, R.H., 1" x 13-29/32". See 310AA

15шт.

BOLT, 5/8" x 2" no. 7 key head plow bolt with hex. nut

30шт.

WASHER, 5/8" standard lock

30шт.

O2368AB

GROUTER, road, L.H., 1" x 13-29/32". See 310AA

15шт.

BOLT, 5/8" x 2" no. 7 key head plow bolt with hex. nut

30шт.

WASHER, 5/8" standard lock

30шт.

O2704AB1

GROUTER, angle, R.H., 2" x 12-1/2". See A413AA

15шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut

30шт.

WASHER, 5/8" standard lock

30шт.

O2705AB1

GROUTER, angle, L.H., 2" x 12-1/2". See A413AA

15шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut

30шт.

WASHER, 5/8" standard lock

30шт.

215AA

GROUTER, set of angle iron, 3-1/2" x 20". Consists of: 12 - O2202AB, 12 - O2203AB and 48 - 5/8" x 1-1/2" machine bolts with nuts and washers. (Machinery account)

1шт.

309AA

GROUTERS, set of road, 1" x 13-3/16". Consists of: 24 - O2365AB, 24 - O2366AB and 96 - 5/8" x 2" no. 7 key head plow bolts with nuts and washers. (Machinery account)

1шт.

310AA

GROUTERS, set of road, 1" x 13-29/32". Consists of: 15 - O2367AB, 15 - O2368AB and 60 - 5/8" x 2" no. 7 key head plow bolts with nuts and washers. (Machinery account)

1шт.

A413AA

GROUTERS, set of angle iron, 2" x 12-1/2". Consist of: 15 - O2704AB1, 15 - O2705AB1 and 60 - 5/8" x 1-1/2" machine bolts with nuts and washers. (Machinery account)

1шт.
