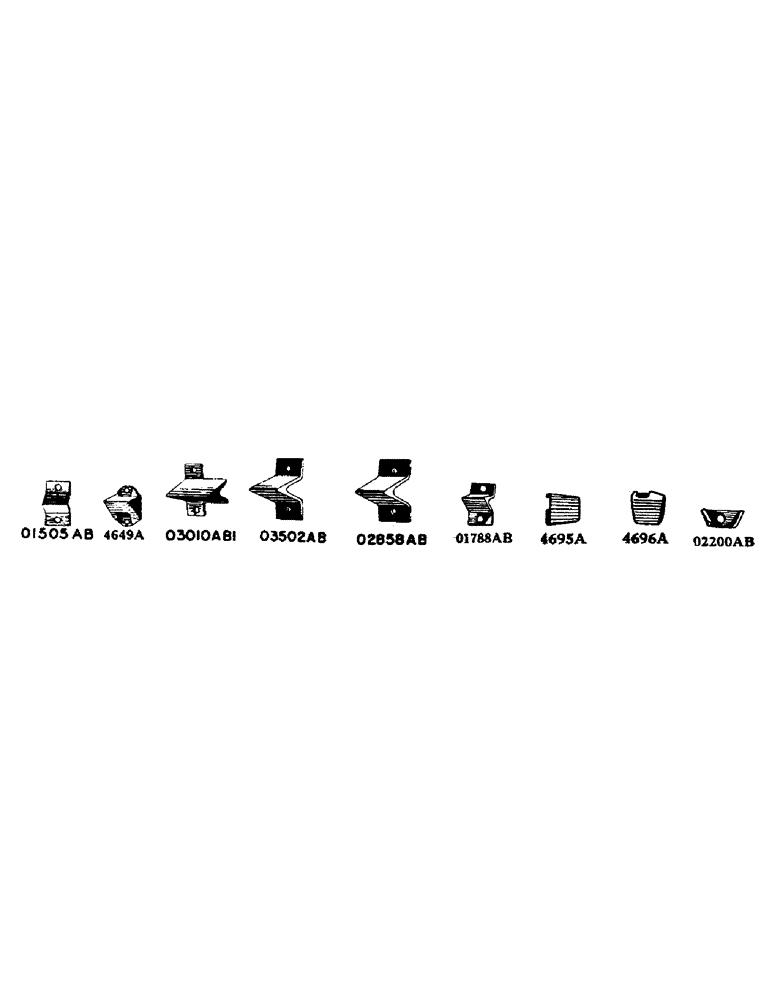

Запчасти Case IH D-SERIES (092) - LUGS FOR STEEL REAR WHEELS, D, DC, DO (06) - POWER TRAIN

4649A

LUG, cast iron spade, 5-3/4" (Regular for "DO") see 66AA, 74AA, 737AA

48шт.

BOLT, 5/8" x 4 " machine, with hex. nut

96шт.

WASHER, 5/8" standard lock

96шт.

4695A

LUG, cast iron spade, R.H., (Open wheel). See 224AA (DC)

24шт.

BOLT, 5/8" x 4" machine, with hex. nut (DC)

48шт.

WASHER, 5/8" standard lock (DC)

48шт.

4696A

LUG, cast iron spade, L.H., (Open wheel). See 224AA (DC)

24шт.

BOLT, 5/8" x 4" machine, with hexagon nut (DC)

48шт.

WASHER, 5/8" standard lock (DC)

48шт.

4955A

LUG, 4-1/4" cast iron spade, R.H., (Open wheel). See 1109AA (DC)

24шт.

BOLT, 3/4" x 4-1/4" machine, with hex. nut (DC)

48шт.

WASHER, 3/4" standard lock (DC)

48шт.

4956A

LUG, 4-1/4" cast iron spade, L.H., (Open wheel). See 1109AA (DC)

24шт.

BOLT, 3/4" x 4-1/4" machine, with hex. nut (DC)

48шт.

WASHER, 3/4" standard lock (DC)

48шт.

O1505AB

LUG, steel spade, 5" high x 3-1/2" wide. Use O3502AB

1шт.

O1788AB

LUG, steel spade, 4" x 3-1/2", (Regular for "D"). See 73AA, 131AA or 670AA

48шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut

96шт.

WASHER, 5/8" standard lock

96шт.

O2200AB

CLIP, cast lug, (Used with 4695A and 4696A lugs) (DC)

48шт.

O2858AB

LUG, 6" steel spade, (Special). See 558AA, 559AA or 738AA

48шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut

96шт.

WASHER, 5/8" standard lock

96шт.

O3010AB1

LUG, 4" x 5" steel spade, offset. (Regular for DC). See 739AA (DC)

36шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut (DC)

72шт.

WASHER, 5/8" standard lock (DC)

72шт.

O3376AB

CLIP, lug. Used with 4955A and 4956A lugs (DC)

48шт.

O3502AB

LUG, 5" steel spade. See 1230AA, 1231AA or 3006AA

48шт.

BOLT, 5/8" x 1-1/2" machine, with hex. nut

96шт.

WASHER, 5/8" standard lock

96шт.

O7977AB

SPUD, square shoulder tractor wheel, for golf course or hay field See 458AA, 640AA, 641AA or 642AA

1шт.

66AA

LUGS, set of 5-3/4" cast iron spade. (Regular for "DO" and special for "D" - "DC".) Consists of: 48 - 4649A lugs with 96 - 5/8" x 1-3/4" machine bolts with nuts and lockwashers (Machinery account)

1шт.

73AA

LUGS, set of 4" steel spade, for extension rims. (Special) Consists of: 24 - O1788AB lugs with 36 - 5/8" x 1-1/2" machine bolts with nuts, 12 - 5/8" x 2" machine bolts with nuts and 48 - 5/8" lockwashers. (Machinery account)

1шт.

74AA

LUGS, set of 5-3/4" cast iron spade, for extension rims. (Special) Consists of: 24 - 4649A lugs with 36 - 5/8" x 1-3/4" machine bolts with hex. nuts, 12-5/8" x 2-1/4" machine bolts with hex. nuts and 48 - 5/8" lockwashers. (Machinery account)

1шт.

131AA

LUGS, set of 4" steel spade. (Regular for "D") Consists of: 48 - O1788AB lugs with 96 - 5/8" x 1-1/2" machine bolts with nuts and lockwashers. (Machinery account)

1шт.

224AA

LUGS, set of cast iron spade. (Special - used with 227AA and 230AA open type rear wheels). Consists of: 24 - 4695A lugs, 24 - 4696A lugs, 48 - O2200AB clips, 96 - 5/8" x 4" machine bolts with hex. nuts and lockwashers. (Machinery account) (DC)

1шт.

458AA

SPUDS, set of, for solid type rear wheels. (Special). Consists of 120 - O7977AB spuds with 120 - 5/8" hex. nuts and lockwashers (Machinery account) (DC)

1шт.

558AA

LUGS, set of 6" steel spade. (Special). Consists of: 48 - O2858AB lugs with 96 - 5/8" x 1-1/2" machine bolts with hex. nuts and lockwashers. (Machinery account)

1шт.

559AA

LUGS, set of 6" steel spade, for extension rims. (Special). Consists of: 24 - O2858AB lugs with 36 - 5/8" x 1-1/2" machine bolts with hex. nuts, 12 - 5/8" x 2" machine bolts with hex. nuts and 48 - 5/8" lockwashers. (Machinery account)

1шт.

640AA

SPUDS, set of golf course, (Or steel cone lugs), special for front and rear wheels. Consists of: 80 - O7977AB spuds with 5/8" hex. nuts and lockwashers. (Machinery account) (D, DO)

1шт.

641AA

SPUDS, set of golf course, (Or steel cone lugs), special for rear extension rims. Consists of: 30 - O7977AB spuds with 5/8" hex. nuts and lockwashers. (Machinery account) (D, DO)

1шт.

642AA

SPUDS, set of golf course, (Or steel cone lugs), special for front extension rims. Consists of: 20 - O7977AB spuds with 5/8" hex. nuts and lockwashers. (Machinery account) (D, DO)

1шт.

670AA

LUGS, set of 4" x 3-1/2" steel spade, (Special - for narrow rim rear wheels). Consists of: 36 - O1788AB lugs with 72 - 5/8" x 1-1/2" machine bolts with hex. nuts and lockwashers. (Machinery account) (DC)

1шт.

737AA

LUGS, set of 5-3/4" cast iron spade, (Special - for narrow rim rear wheels). Consists of: 36 - 4649A lugs with 72 - 5/8" x 1-3/4" machine bolts with hex. nuts and lockwashers. (Machinery account) (DC)

1шт.

738AA

LUGS, set of 6" x 3-1/2" steel spade. (Special for narrow rim rear wheels). Consists of: 36 - O2858AB lugs with 72 - 5/8" x 1-1/2" machine bolts with hex. nuts and lockwashers. (Machinery account) (DC)

1шт.

739AA

LUGS, set of 4 " x 5" steel spade offset. (Regular). Consists 36 - O3010AB lugs with 72 - 5/8" x 1-1/2" machine bolts with hex. nuts and lockwashers. (Machinery account) (DC)

1шт.

1109AA

LUGS, set of 4-1/4" cast iron spade. (Special - for open type rear wheels). Consists of: 24 - 4955A lugs, 24 - 4956A lugs, 48 - O3376AB clips, 96 - 3/4" x 4-1/4" machine bolts with hex. nuts and lockwasher. (Machinery account) (DC)

1шт.

1230AA

LUGS, set of 5" steel spade, (Special). Consists of: 48 - O3502AB lugs with 96 - 5/8" x 1-1/2" machine bolts with hex. nuts and lockwashers. (Machinery account)

1шт.

1231AA

LUGS, set of 5" steel spade. (Special for extension rims). Consists of: 24 - O3502AB lugs with 36 - 5/8" x 1-1/2" machine bolts with hex. nuts, 12 - 5/8" x 2" machine bolts with hex. nuts and 48 - 5/8" lockwashers. (Machinery account)

1шт.

3006AA

LUGS, set of 5" steel spade. (Special). Consists of: 36 - O3502AB lugs with 72 - 5/8" x 1-1/2" machine bolts with hex. nuts and lockwashers. (Machinery account) (DC)

1шт.
