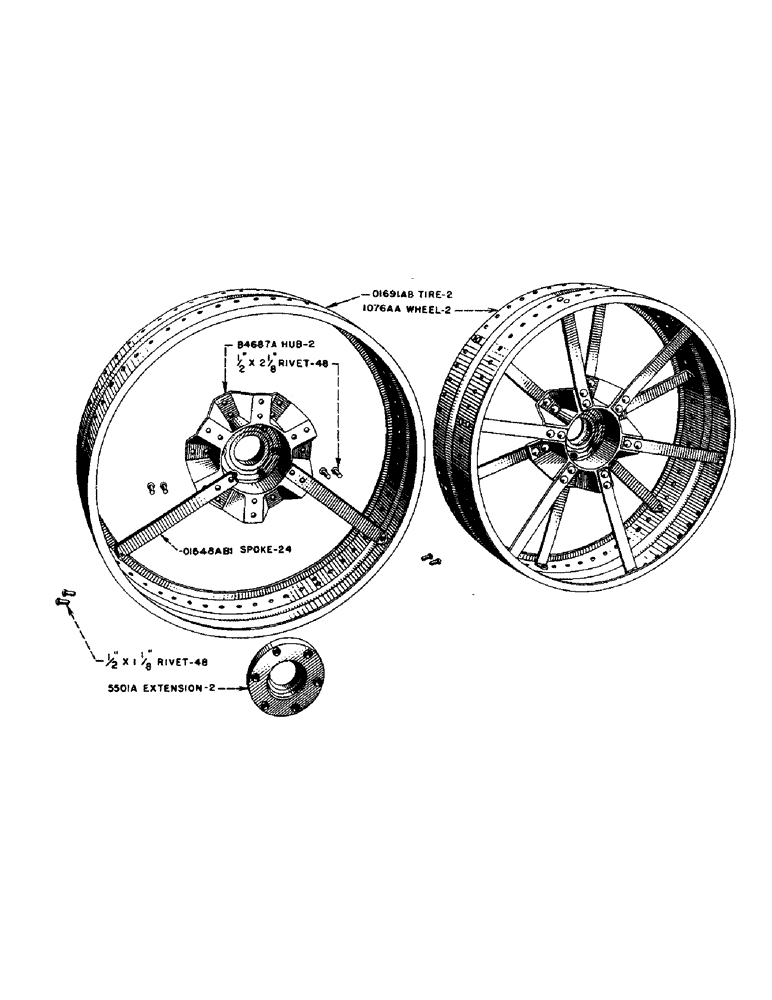

Запчасти Case IH D-SERIES (089) - STEEL REAR WHEELS FOR "D" - "DO" TRACTORS (06) - POWER TRAIN

B4687A

HUB, rear wheel

2шт.

A4825A

HUB, rear wheel extension (1-1/4") tractor no. 5419957 and after (See 5501A) (D)

2шт.

5501A

HUB, rear wheel extension (2") tractor no. 4607033 and after (DO)

2шт.

5501A

HUB, rear wheel extension (2") tractor no. 4607033 thru tractor no. 5419956 (See A4825A) (D)

2шт.

O1648AB1

SPOKE, rear wheel

24шт.

RIVET, 1/2" x 1-1/8" round head

48шт.

RIVET, 1/2" x 2-1/8" round head

48шт.

O1691AB

TIRE, rear wheel

2шт.

O2193AB

BOLT, rear wheel 4-7/8" long (Prior to tractor no. 4607033) See O2921AB, O7229AB

2шт.

NUT, 3/4" hex., N.F. thrd. w/lockwasher

12шт.

O2921AB

BOLT, rear wheel, 6-3/4" long (Used with A4825A hub) See O2193AB, O7229AB (D)

2шт.

NUT, 3/4" hex., N.F. thrd. w/lockwasher (D)

12шт.

O7229AB

BOLT, rear wheel, 6" long (Used with 5501A hub) See O2193AB, O2921AB

12шт.

NUT, 3/4" hex., N.F. thrd. w/lockwasher

12шт.

1076AA

WHEEL, rear

2шт.
