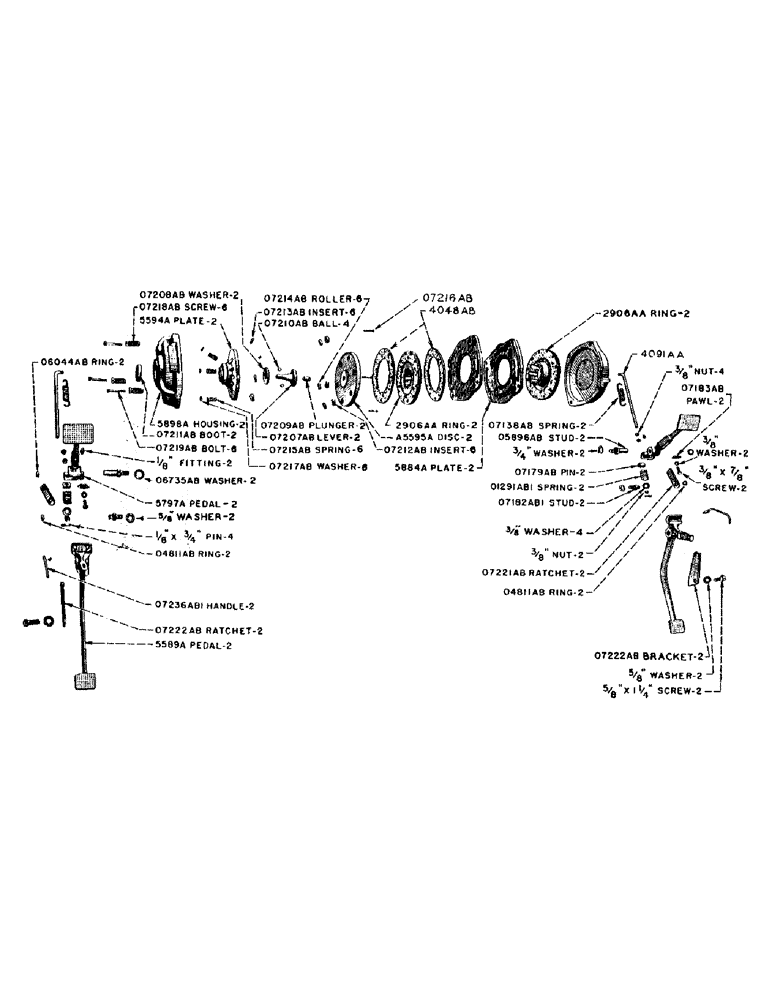

Запчасти Case IH D-SERIES (074) - INDEPENDENT BRAKE, D, DC, DO, DV (06) - POWER TRAIN

5562A

PLATE, brake, prior to tractor no. 4900000 - See 5884A (D, DC, DO)

2шт.

5589A

PEDAL, brake. See 5797A (D, DO)

2шт.

FITTING, 1/8" straight, Lincoln, no. 5000 (D, DO)

2шт.

5593A

HOUSING, brake, (BP8599A) prior to Tractor no. 4900000 - See 5898A (D, DC, DO)

2шт.

5594A

PLATE, independent brake power (BP8505)

2шт.

5595A

DISC, primary, use A5595A

1шт.

A5595A

DISC, primary. BP8510A

2шт.

5596A

RING, brake middle. Use 2906AA

1шт.

5660A

PEDAL, brake, prior to tractor no. 4605288 - See 5797A (DC)

2шт.

FITTING, 1/8" straight Lincoln, no. 5000 (DC)

2шт.

5661A

LOCK, brake pedal, prior to tractor no. 4605288 (DC)

2шт.

5797A

PEDAL, brake, tractor no. 4605288 and after - See 5660A (DC)

2шт.

FITTING, 1/8" straight Lincoln, no. 5000 (DC)

2шт.

5797A

PEDAL, brake. Replaces 5589A when power take-off with motor life and raising bail is installed (DV)

2шт.

5807A

PEDAL, independent brake, L.H. (DV)

1шт.

FITTING, straight Lincoln, no. 5000 (DV)

1шт.

5810A

PEDAL, independent brake, R.H. (DV)

1шт.

FITTING, straight Lincoln, no. 5000 (DV)

1шт.

5884A

PLATE, brake, tractor no. 4900001 and after - See 5562A

2шт.

5898A

HOUSING, independent brake. (BP8599B). Tractor no. 4900001 and after - See 5593A

2шт.

O1291AB1

SPRING, brake rod

2шт.

O4811AB

X

RING, snap, brake pedal lock stud

2шт.

O5894AB

YOKE

brake arm, prior to tractor no. 4605288 (DC)

2шт.

O5896AB

STUD, brake pedal

2шт.

WASHER, 3/4" standard lock

2шт.

O5897AB

STUD, brake pedal lock, prior to tractor no. 4605288 (DC)

2шт.

WASHER, 5/8" standard lock (DC)

2шт.

O5925AB

X

PIN, brake arm yoke, prior to tractor no. 4605288 (DC)

2шт.

PIN, 3/32" x 5/8" cotter (DC)

2шт.

O6044AB

X

RING, snap, brake pedal stud

2шт.

O6735AB

WASHER, independent brake pedal stud

2шт.

O7138AB

SPRING

brake pedal

2шт.

O7179AB

PIN, brake pedal

2шт.

O7181AB

RATCHET, brake (DC)

2шт.

O7181AB

RATCHET, brake. Replaces O7221AB when power take-off with motor lift and raising bail is installed (DV)

2шт.

O7182AB1

STUD, brake ratchet

2шт.

NUT, 5/8" hexagon, jam, N.C. thread

2шт.

WASHER, 5/8" standard lock

2шт.

O7183AB

X

PAWL, brake pedal

1шт.

SCREW, 3/8" x 7/8" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O7207AB

LEVER, actuator

2шт.

O7208AB

WASHER, actuator lever

2шт.

O7209AB

PLUNGER, actuator

2шт.

O7210AB

X

BALL, actuator steel, 1/2" diameter

4шт.

O7211AB

BOOT

actuator lever enclosure

2шт.

O7212AB

X

INSERTS, with lock nib. Prior to tractor no. 5201270. See note after O7214AB

1шт.

O7213AB

X

INSERTS, without lock nib. Prior to tractor no. 5201270. See note after O7214AB

1шт.

O7214AB

X

ROLLER, power, 3/8" diameter. Prior to tractor no. 5201270. See note (D, DC, DO)

6шт.

O7215AB

SPRING

disc separating

6шт.

O7216AB

PIN

spring lock

6шт.

O7217AB

WASHER

spring retainer

6шт.

O7218AB

ADJUSTER,Hex, 9/16" - 11 x 2 3/4", Gr 5

SCREW, adjusting

6шт.

O7219AB

BOLT, lock, adjusting screw

6шт.

O7221AB

RATCHET, brake - See O7181AB (D, DO, DV)

2шт.

O7222AB

BRACKET, brake ratchet (D, DO, DV)

2шт.

SCREW, 5/8" x 1-1/4" hexagon head cap, N.C. thread (D, DO, DV)

2шт.

WASHER, 5/8" standard lock (D, DO, DV)

2шт.

O7236AB1

HANDLE, brake ratchet, See O8119AB (D, DV)

2шт.

O7236AB1

HANDLE, brake ratchet, tractor no. 4605288 to tractor no. 5220480 See. O8466AB (DO)

2шт.

O7270AB

BRACKET, independent brake ratchet handle, R.H. (DV)

1шт.

1/4" X 1/2" N.F. FIN. HEX. BOLT (DV)

1шт.

O7271AB

BRACKET, independent brake ratchet handle, L.H. (DV)

1шт.

1/4" X 1/2" FIN. HEX. BOLT (N.F) (DV)

1шт.

O8119AB

HANDLE, brake ratchet. Replaces O7236AB1 when power take-off with motor lift and raising bail is installed (DV)

2шт.

O8295AB

X

INSERT, independent brake. Tractor no. 5201270 and after

12шт.

O8296AB

X

BALL, actuator, 5/8" diameter steel. Tractor no. 5201270 and after

6шт.

O8304AB

SHIM, actuating lever washer. Tractor no. 5201270 and after

4шт.

O8466AB

HANDLE, brake ratchet. Tractor no. 5220480 and after. See O7236AB1 (DO)

2шт.

PIN, 3/32" x 5/8" cotter (DO)

2шт.

2906AA

RING

middle, with brake linings

2шт.

4048AA

KIT

LININGS - set of two, with rivets

2шт.

4091AA

X

rod, brake. (Consists of 2 - O5925AB pin, 2 - O8967AB Rod and 3/32" x 5/8" cotter pin

2шт.
