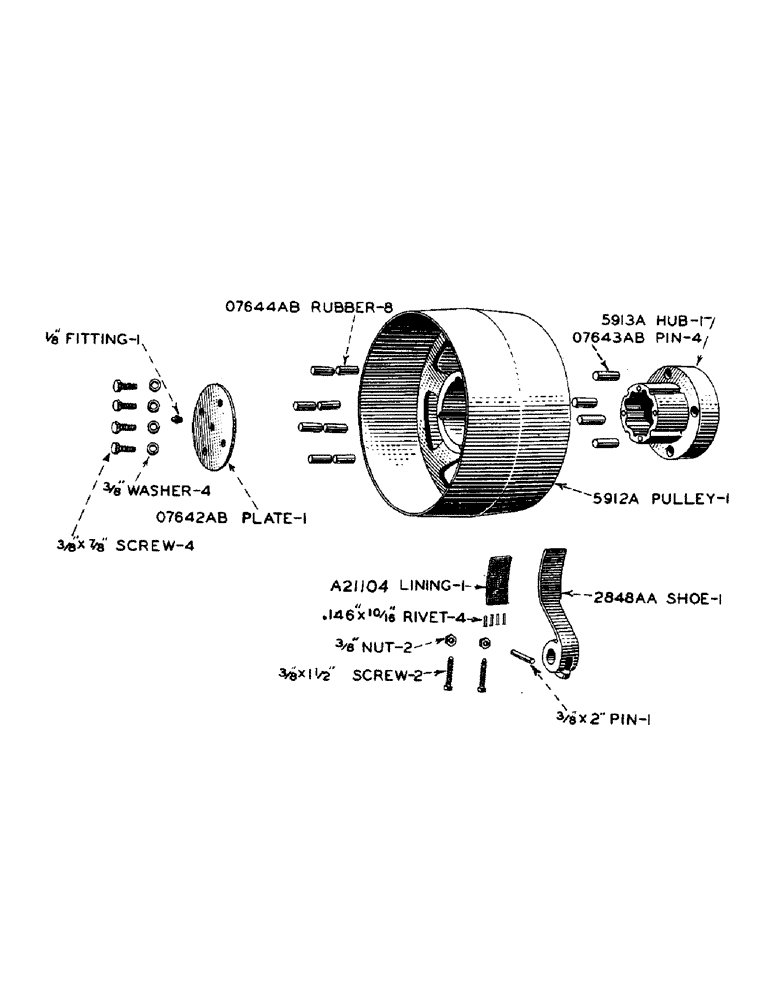

Запчасти Case IH D-SERIES (066) - RESILIENT BELT PULLEY, TRACTOR NUMBER 4805353 TO NUMBER 4818099, D, DC, DO (06) - POWER TRAIN

A21104

LINING

- set of, with .146" x 10/16" brass tubular rivets no. 2561

1шт.

5569A

SHOE, belt pulley brake, use 2848AA

1шт.

5912A

PULLEY, belt, less hub, (12-1/4" diameter with 7-1/4" face) - See 3362AA

1шт.

5913A

HUB, belt pulley

1шт.

O7642AB

PLATE, belt pulley

1шт.

FITTING, 1/8" straight Lincoln, no. 5000

1шт.

SCREW, 3/8" x 7/8" hexagon head cap, N.C. thread

4шт.

WASHER, 3/8" standard lock

4шт.

O7643AB

PIN, belt pulley driving

4шт.

O7644AB

RUBBER, belt pulley

8шт.

2848AA

SHOE, belt pulley brake, with lining

1шт.

PIN, 3/8" x 2" type 5 groove

1шт.

SCREW, 3/8" x 1-1/2" cup point set, N.C. thread

2шт.

NUT, 3/8" hexagon, N.C. thread

2шт.

3362AA

PULLEY, resilient belt, complete. Consists of 1 - 5912A pulley, 1 - 5913A hub, 1 - O7642AB plate, 4 - O7643AB pins, 8 - O7644AB rubbers, 1-1/8" fitting, 4 - 3/8" x 7/8" cap screws and 4 - 3/8" lockwashers

1шт.
