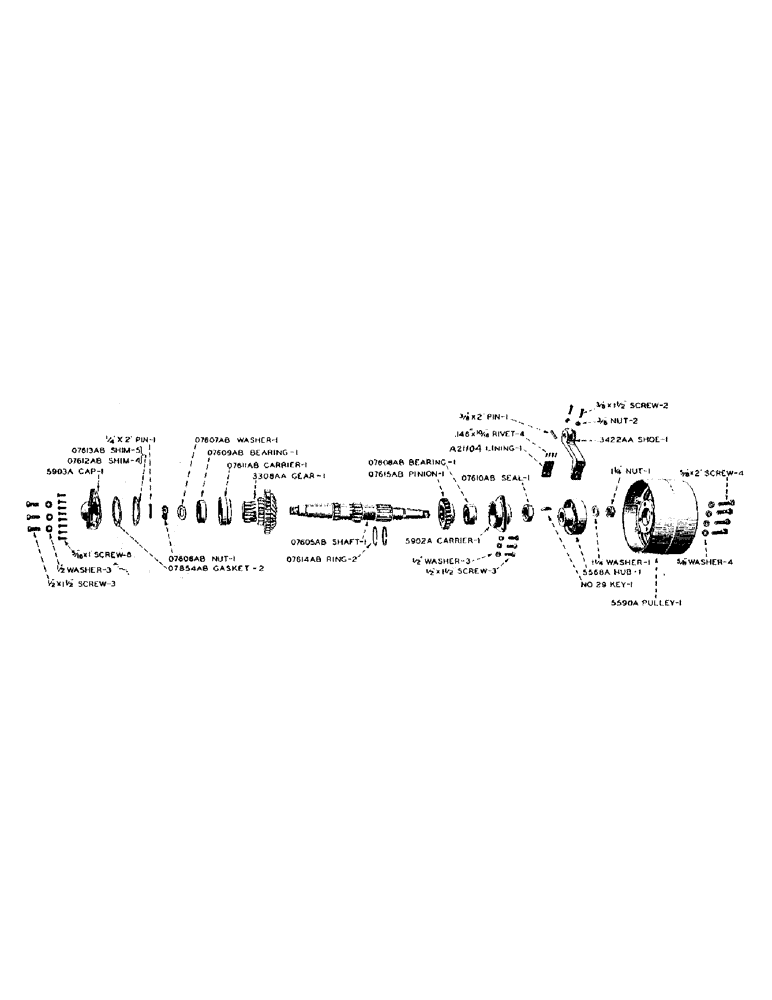

Запчасти Case IH D-SERIES (064) - BELT PULLEY SHAFT, TRACTOR NUMBER 4805353 AND AFTER, D, DC, DO, DV (06) - POWER TRAIN

A21104

LINING

- set of, with .146" x 10/16" brass tubular rivets, no. 2561

1шт.

5567A

PULLEY, belt, less hub - 12-1/4" diameter x 6-1/4" face, for DO tractor equipped with 12-26, 12.75-24, or 13-26 oversize tires. See 5590A (DO)

1шт.

SCREW, 5/8" x 2" hexagon head cap, N.C. thread (DO)

4шт.

WASHER, 5/8" standard lock (DO)

4шт.

5568A

HUB, belt pulley, and brake drum

1шт.

5590A

PULLEY, belt, less hub - 12-1/4" diameter x 7-1/4" face. See 5567A (D, DV, DO)

1шт.

SCREW, 5/8" x 2" hexagon head cap, N.C. thread (D, DC, DO)

4шт.

WASHER, 5/8" standard lock (D, DC, DO)

4шт.

5902A

CARRIER, belt pulley shaft bearing, R.H.

1шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.C. thread

3шт.

WASHER, 1/2" standard lock

3шт.

5903A

CAP, belt pulley shaft bearing carrier L.H.

1шт.

SCREW, 5/16" x 1" hexagon head cap, N.C. thread

8шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.C. thread

3шт.

WASHER, 1/2" standard lock

3шт.

5916A

SHOE, belt pulley brake - Use 3422AA

1шт.

O7605AB

SHAFT, belt pulley

1шт.

KEY, no. 29 Woodruff

1шт.

NUT, 1-1/4" hexagon, light, jam, N.F. thread

1шт.

WASHER, 1-1/4" standard lock

1шт.

O7606AB

NUT, belt pulley shaft

1шт.

PIN, 1/4" x 2" cotter

1шт.

O7607AB

WASHER, belt pulley shaft

1шт.

O7608AB

X

BEARING, belt pulley shaft, R.H., New Departure no. 1210

1шт.

O7609AB

BEARING, belt pulley shaft, L.H., New Departure no. 5209

1шт.

O7610AB

OIL SEAL

SEAL, oil, belt pulley shaft

1шт.

O7611AB

CARRIER, belt pulley shaft, L.H.

1шт.

O7612AB

SHIM, belt pulley shaft bearing carrier, .003" thick

4шт.

O7613AB

SHIM, belt pulley shaft bearing carrier, .005" thick

5шт.

O7614AB

X

RING, snap, third speed pinion

2шт.

O7615AB

PINION, third speed

1шт.

O7854AB

GASKET, belt pulley shaft bearing carrier and cap

2шт.

3285AA

SHAFT AND PINION, clutch, with transmission bevel gear, from tractor no. 4805353 to tractor no. 4818099 (D, DC, DO)

1шт.

3308AA

SHAFT AND PINION, clutch with transmission bevel gear, tractor no. 4818099 and after

1шт.

3422AA

SHOE, belt pulley brake, with lining

1шт.

PIN, 3/8" x 2" type 5 groove

1шт.

SCREW, 3/8" x 1-1/2" flat point set

2шт.

NUT, 3/8" hexagon, jam, N.C. thread

2шт.
