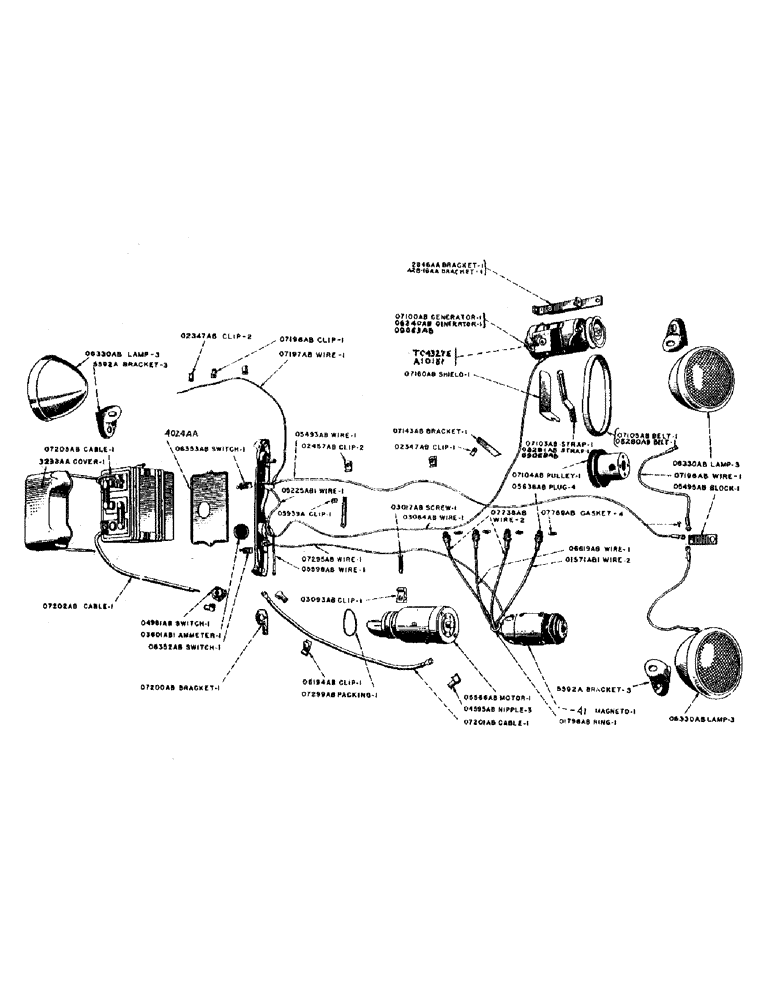

Запчасти Case IH D-SERIES (032) - ELECTRIC LIGHTING AND STARTING PARTS, GENERATOR, D, DC, DO, DV (04) - ELECTRICAL SYSTEMS

A10151

X

REGULATOR - voltage, for O9063AB generator (Auto-Lite No. VRR4104A or 8-36)

1шт.

O5939A

CLIP - generator wire (On water pump)

1шт.

O1798AB

RING - ignition cable (Rubber)

1шт.

O2347AB

CLIP - generator wire

1шт.

BOLT - 1/4" x 5/8" rhd. stove, with nut and lockwasher

1шт.

O3084AB

WIRE -, Serial Range: generator-ammeter

1шт.

O3601AB1

X

AMMETER (DO, DV)

1шт.

O4599AB

CLIP - front lamp and generator wire

1шт.

O5225AB1

WIRE - ammeter to light switch

1шт.

O5598AB

WIRE - ammeter to starter switch

1шт.

O6240AB

GENERATOR - tractor no. 5203324 and after (See note) Auto-Lite no. GBM4809-B

1шт.

O7100AB

GENERATOR - (Prior to tractor no. 5203324) (See note) Auto-Lite no. GAS4167

1шт.

O7103AB

STRAP - generator belt adjusting (Used with O7100AB generator) See O8281AB and O9069AB (D, DC, DO)

1шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.C. thrd. (D, DC, DO)

1шт.

SCREW - 5/16" x 3/4" hex. hd. cap, N.C. thrd. w/lockwasher and plain washer (D, DC, DO)

1шт.

O7104AB

X

PULLEY - generator drive

1шт.

O7105AB

BELT

- generator (Use with O7100AB generator) See O8280AB (D, DC, DO)

1шт.

O7143AB

BRACKET - for generator wire and magneto ground wire clips

1шт.

BOLT - 1/4" x 5/8" rhd. stove, with nut and lockwasher

1шт.

O7160AB

SHIELD - generator

1шт.

O8280AB

BELT

Generator (Used with O6240AB and O9063AB generator), See O7105AB

1шт.

O8281AB

STRAP - generator belt adjusting (Used with O6240AB generator) See O7103AB and O9069AB

1шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.C. thrd.

1шт.

O8282AB

STUD - generator belt adjusting (Used with O6240AB generator)

1шт.

NUT - 5/16" hex., light, N.F. thrd.

1шт.

WASHER - 5/16" std. lock

2шт.

WASHER - 5/16" std. plain

1шт.

O9063AB

GENERATOR - (Auto-Lite no. GHD6001C) (See note)

1шт.

O9069AB

STRAP - generator belt adjusting

1шт.

SCREW - 5/16" x 3/4" hex. hd. cap, N.C. thrd. w/lockwasher and plain washer

1шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.C. thrd.

1шт.

2846AA

BRACKET - generator, with strap (Used with O7100AB generator) See A2846AA (D, DC, DO)

1шт.

A2846AA

BRACKET - generator with strap (Used with O6240AB generator) See 2846AA

1шт.

4119AA

BRACKET - generator, with strap

1шт.

SCREW - 5/16" x 1" hex. hd. cap, N.F. thrd. w/nut and lockwasher

2шт.

SCREW - 3/8" x 1-1/4" hex. hd. cap, N.F. thrd. w/nut and lockwasher

2шт.

TC4327E

REGULATOR - voltage for O6240AB and O7100AB generator (Auto-Lite no. TC4327R or 9-15)

1шт.

O3017AB

SCREW, starting motor

1шт.

NUT, 5/8" hexagon jam, N.C. thread

1шт.

O3018AB

GASKET, starting motor, cork. See O7299AB

1шт.

O3093AB

CLIP, starting cable to cylinder block

1шт.

A21753

CAP

NIPPLE, starting terminal

3шт.

O4981AB

SWITCH

starting

1шт.

BOLT, 1/4" x 3/4" round head stove, with nut

2шт.

WASHER, 1/4" standard lock

2шт.

O5566AB

STARTING MOTOR, purchased from the Electric Auto Lite Co., Toledo Ohio - their no. MAB4105

1шт.

O5598AB

WIRE, starter, Serial Range: switch-ammeter

1шт.

O6194AB

CLIP, cable, starting switch to starting motor

1шт.

O6352AB

SWITCH

magneto ground. Tractor no. 4607033 and after (D, DC, DV)

1шт.

O6352AB

SWITCH

magneto ground. Tractor no. 4607033 and after (DO)

2шт.

O7200AB

BRACKET, starting switch

1шт.

WASHER, 1/4" standard plain

1шт.

O7201AB

CABLE, starter switch to starting motor

1шт.

O7202AB

CABLE, battery to starter switch

1шт.

O7299AB

PACKING

starting motor, rubber. See O3018AB

1шт.

BATTERY, storage, (17 plate, 6 volt) Not furnished by J. I. Case Co.

1шт.

O3092AB

CLIP, ground cable. Used only when power take-off with motor lift and raising bail is installed (DO)

1шт.

SCREW - 3/8" x 3/4" hexagon head cap, N.F. thread (DO)

1шт.

NUT, 3/8" hexagon, light, N.F. thread (DO)

1шт.

WASHER, 3/8" standard lock (DO)

1шт.

O6731AB

CABLE, ground. Replaces O7203AB when power take-off with motor lift and raising bail is installed (DO)

1шт.

O7202AB

CABLE, battery to starter switch

1шт.

O7203AB

CABLE , battery ground

1шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.F. thread

1шт.

WASHER, 3/8" standard lock

1шт.

NUT, 3/8" hexagon, light, N.F. thread

1шт.

O8214AB

REINFORCEMENT, fender, L.H. (DO)

1шт.

B2900AA

SUPPORT - battery, and lamp bracket (DC)

1шт.

SCREW - 1/2" x 3/4" hex. hd. cap, N.C. thread (DC)

2шт.

WASHER - 1/2" std. lock (DC)

2шт.

B3012AA

SUPPORT - battery (DO)

1шт.

SCREW - 1/2" x 1-3/4" hex. hd. cap, N.C. thread (DO)

1шт.

A3233AA

COVER - battery

1шт.

NUT - 5/16" wing, N.C. thread (Cadmium plated)

2шт.

A3665AA

SUPPORT, battery. Replaces 3012AA when power take-off with motor lift and raising bail is installed (DO)

1шт.

BOLT, 5/16" x 3/4" overhead stove (DO)

2шт.

WASHER, 5/16" standard lock (DO)

2шт.

4024AA

SUPPORT - battery (D, DV)

1шт.

SCREW - 1/2" x 3/4" hex. hd. cap, N.C. thread (D, DV)

2шт.

WASHER - 1/2" std. lock (D, DV)

2шт.

5324A

BRACKET - tractor lamp, (Prior to tractor no. 4607033) See 5804A (D)

2шт.

5324A

BRACKET - tractor lamp, (Prior to tractor no. 4607033) See 5804A (DO)

1шт.

SCREW - 5/16" x 1" hex. hd. cap, N.F. thrd. w/nut and lockwasher (DO)

2шт.

SCREW - 5/16" x 1-1/4" hex. hd. cap, N.F. thrd. w/nut and lockwasher (D)

4шт.

A5592A

3шт.

SCREW - 3/8" x 1-1/2" hex. hd. cap, N.F. thrd. w/nut, lockwasher and plain washer (DC)

3шт.

A5804A

BRACKET - tractor lamp, (Tractor no. 4607033 and after) See 5324A (DO, DV)

1шт.

A5804A

BRACKET - tractor lamp, (Tractor no. 4607033 and after) See 5324A (D)

2шт.

SCREW - 5/16" x 1" hex. hd. cap, N.F. thrd. w/nut and lockwasher (DO, DV)

2шт.

SCREW - 5/16" x 1-1/4" hex. hd. cap, N.F. thrd. w/nut and lockwasher (D)

4шт.

6122A

X

BRACKET - front and rear lamps (D)

3шт.

SCREW - 3/8" x 1-1/2" hex. hd. cap, N.F. thrd. w/nut and lockwasher (D)

3шт.

6122A

X

BRACKET - rear lamp (DC)

1шт.

6122A

X

BRACKET - head lamp (DO, DV)

2шт.

6123A

X

BRACKET - head lamp (DC)

2шт.

SCREW - 3/8" x 1-1/2" hex. hd. cap, N.F. thrd. w/nut and lockwasher (DC)

2шт.

6123A

X

BRACKET - rear lamp (DO, DV)

1шт.

O5939A

CLIP - rear lamp wire (DO, DV)

2шт.

O5939A

CLIP - rear lamp wire (D)

4шт.

BOLT - 3/8" x 1" rhd. stove (N.C.) w/lockwasher (DO, DV)

2шт.

BOLT - 3/8" x 1" rhd. stove (N.C.) w/lockwasher (D)

4шт.

O2347AB

CLIP - rear lamp wire (DO, DV)

2шт.

O2457AB

CLIP - switch to lamp lead wire (DC, DO, DV)

2шт.

O2825AB

X

CLIP - front lamp wire (DC)

5шт.

BOLT - 1/4" x 5/8" rhd. stove w/lockwasher (DC)

5шт.

O4599AB

CLIP - front lamp and generator wire (DO, DV)

1шт.

O5225AB1

WIRE - light, Serial Range: switch-ammeter

1шт.

O5231AB

SWITCH - light, (Prior to tractor no. 4607033) See O6353AB (D, DC, DO)

1шт.

O5493AB

WIRE - tractor lamp, light switch to front junction (DO, DV)

1шт.

O5495AB

BLOCK - terminal, tractor lamp wire (DO, DV)

1шт.

SCREW - 3/16" x 1/2" rhd. mach., N.F. thrd. w/nut and lockwasher (DO, DV)

1шт.

WASHER - 1/2" std. plain (DO, DV)

1шт.

O5496AB

PLATE - rear lamp bracket mounting (DO, DV)

1шт.

SCREW - 3/8" x 1" hex. hd. cap, N.F. thrd. w/nut, lockwasher and plain washer (DO, DV)

2шт.

O6168AB

CLIP - rear lamp wire (D, DC)

1шт.

O6330AB

LAMP - tractor (Use O9642AB or O9668AB)

1шт.

O6353AB

SWITCH

- light, (Tractor no. 4607033 and after) See O5231AB (Includes VT2124 fuse)

1шт.

O6366AB

CLIP - fender lamp wire (D)

2шт.

O7195AB

SUPPORT - rear lamp bracket (DC)

1шт.

SCREW - 1/2" x 1-1/4" hex. hd. cap, N.F. thrd. w/nut and lockwasher (DC)

1шт.

O7196AB

WIRE - front lamp (DC)

1шт.

O7197AB

WIRE - fender lamp (Tractor no. 4605288 to tractor no. 5300000) See O5046AB (D)

2шт.

O7197AB

WIRE - rear lamp (Prior to tractor no. 5300000) (DC)

1шт.

O7198AB

CLIP - rear lamp wire (DC)

1шт.

O7224AB

WIRE - front lamp (DC, DV)

1шт.

O7225AB

WIRE - rear lamp (DO, DV)

1шт.

O7549AB

CONNECTOR - two wire line (Tractor no. 5300001 and after) (DC)

1шт.

O8335AB

X

WIRE - rear lamp, dash to connector (Tractor no. 5300001 and after) (DC)

1шт.

O8336AB

WIRE - rear lamp, connector to lamp (Tractor no. 5300001 and after) (DC)

1шт.

O8810AB

LAMP

- combination flood and tail

1шт.

O8899AB

SUPPORT - rear lamp bracket (DC)

1шт.

SCREW - 1/2" x 1-1/4" hex. hd. cap, N.F. thrd. w/nut and lockwasher (DC)

1шт.

O9642AB

LAMP - tractor, sealed beam, vertical mounting (D, DO, DV)

2шт.

O9642AB

LAMP - tractor, sealed beam, vertical mounting (DC)

3шт.

O9668AB

LAMP - tractor, sealed beam, horizontal mounting (D, DO, DV)

2шт.

O9668AB

LAMP - tractor, sealed beam, horizontal mounting (DC)

3шт.

VT2124

X

FUSE - for O6353AB light switch (SFE 20 AMP)

1шт.
