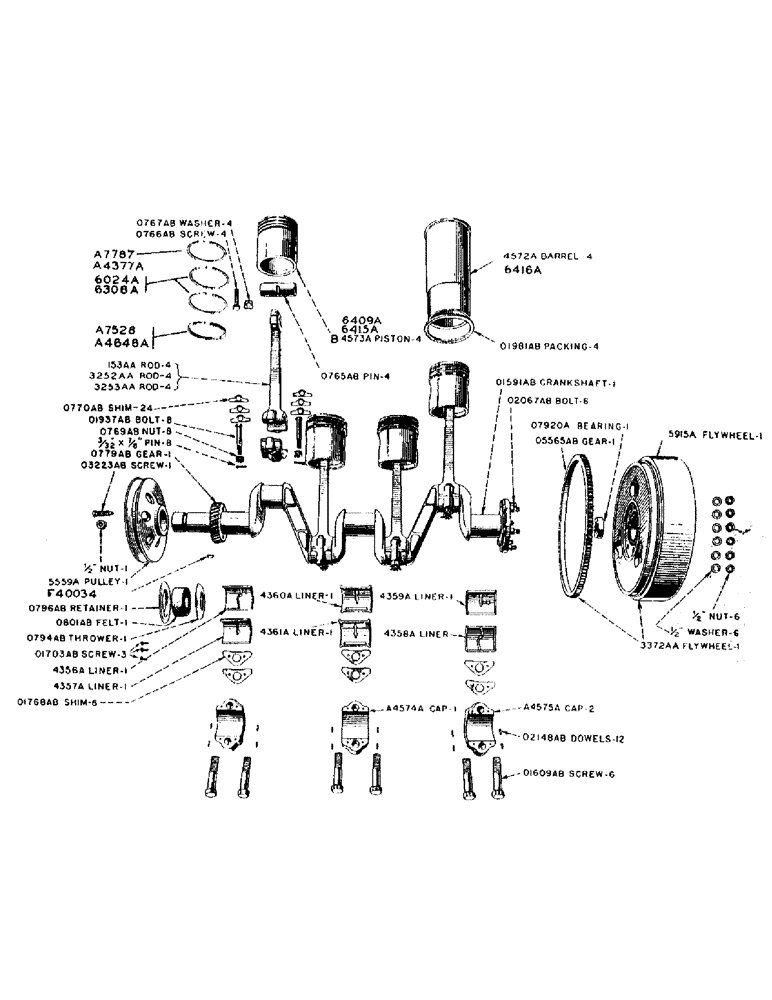

Запчасти Case IH D-SERIES (008) - PISTONS, CONNECTING RODS, AND CRANKSHAFT, PISTONS, RINGS AND SLEEVES, (3- 7/8" BORE) (02) - ENGINE

A8086

RING

S - set of 2 in 1 chrome piston

1шт.

A4377A

RING - piston compression (See 3721AA and A8086) (See note)

4шт.

4572A

SLEEVE - cylinder (See A7493 and 4865AA cylinder sleeve sets)

4шт.

B4573A

X

PISTON (See A7493 and 4865AA cylinder sleeve sets)

4шт.

A4648A

RING - piston, oil (See 3721AA and A8086) (See note)

4шт.

6024A

RING - piston, taper faced compression (See 3721AA and A8086) (See note)

8шт.

6025A

RING - piston, continuous groove scraper for 3721AA

4шт.

O765AB

X

PIN - piston

4шт.

O1981AB1

X

PACKING - cylinder sleeve

4шт.

3721AA

PISTON RING SET

RINGS - set of (16) low cost replacement piston (Consists of: 4- A4648A, 8-6024A and 4-6025A) See A8086 set of 2 in 1 chrome rings

1шт.

A7493

SLEEVES - cylinder, set of (4) fitted with pistons, rings, pins and packing (For use with A2399AA and 4092AA cylinder heads for gasoline of A2873AA cylinder head for low cost fuel) (See 4865AA)

1шт.

A7528

RING - piston oil (See note)

4шт.

A7787

RING - piston compression (Top) (See note)

4шт.

A8095

KIT

RINGS - set of 2 in 1 chrome piston

1шт.

6308A

X

RING - piston compression (Second and third) (See note)

8шт.

6409A

X

PISTON - for A7493 sleeve set (See 6415A)

4шт.

6415A

X

PISTON - for 4865AA sleeve set (See 6409A)

4шт.

6416A

X

SLEEVE - cylinder

4шт.

O765AB

X

PIN - piston

4шт.

O1981AB1

X

PACKING - cylinder sleeve

4шт.

4865AA

SLEEVES - cylinder, set of (4) fitted with pistons, rings, pins and packing (For use with A2873AA cylinder head for gasoline) (See A7493)

1шт.

O765AB

X

PIN - piston

4шт.

O766AB

X

SCREW - piston pin clamp

4шт.

O767AB

X

WASHER - lip, piston pin clamp screw

4шт.

O769AB

NUT - connecting rod bolt

8шт.

O770AB

X

SHIM - connecting rod (.003")

24шт.

O1937AB

BOLT - connecting rod

8шт.

3/32" X 7/8" COTTER PIN

8шт.

153AA

X

ROD - connecting, with bolts, nuts and shims (See 3252AA and 3253AA) (See note)

4шт.

3252AA

ROD - connecting, with bolts, nuts and shims (.10" undersize) (See 153AA) (See note)

4шт.

3253AA

ROD - connecting, with bolts, nuts and shims (.020" undersize) (See 153AA) (See note)

4шт.

F40034

KEY

- Woodruff, for fan pulley and crankshaft gear

2шт.

4356A

X

LINER - crankshaft bearing, front, lower. Standard size (Not fitted) (See 6015A)

1шт.

4357A

X

LINER - crankshaft bearing, front, upper. Standard size (Not fitted) (See 6014A)

1шт.

4358A

X

LINER - crankshaft bearing, rear, lower. Standard size (Not fitted) (See 6019A)

1шт.

4359A

X

LINER - crankshaft bearing, rear, upper. Standard size (Not fitted) (See 6018A)

1шт.

4360A

X

LINER - crankshaft bearing, center, upper. Standard size (Not fitted) (See 6016A)

1шт.

4361A

X

LINER - crankshaft bearing, center, lower. Standard size (Not fitted) (See 6017A)

1шт.

A4574A

CAP - crankshaft bearing, center

1шт.

A4575A

CAP - crankshaft bearing, front and rear

2шт.

4855A

FLYWHEEL (Use A866AA) (Prior to tractor No. 4818099) See 5915A

1шт.

5559A

PULLEY - fan drive

1шт.

5915A

FLYWHEEL - (Use 3372AA) (Tractor no. 4818099 and after) See 4855A

1шт.

6014A

LINER - crankshaft bearing, front upper, .090" undersize (Not fitted) (See 4357A)

1шт.

6015A

LINER - crankshaft bearing, front, lower, .090" undersize (Not fitted) (See 4356A)

1шт.

6016A

LINER - crankshaft bearing, center, upper, .090" undersize (Not fitted) (See 4360A)

1шт.

6017A

LINER - crankshaft bearing, center, lower, .090" undersize (Not fitted) (See 4361A)

1шт.

6018A

LINER - crankshaft bearing, rear, upper .090" undersize (Not fitted) (See 4359A)

1шт.

6019A

LINER - crankshaft bearing, rear, lower, .090" undersize (Not fitted) (See 4358A)

1шт.

07920A

BEARING - pilot, clutch shaft, flywheel end (New Departure no. 7505)

1шт.

O779AB

GEAR - crankshaft

1шт.

O794AB

THROWER - crankshaft oil

1шт.

O796AB

RETAINER - felt, crankshaft front

1шт.

O801AB

WASHER - felt, crankshaft

1шт.

O1591AB

CRANKSHAFT

1шт.

O1609AB

SCREW - crankshaft bearing cup

6шт.

O1703AB

SCREW - crankshaft felt retainer

3шт.

O1768AB

SHIM - crankshaft bearing

6шт.

O2067AB

BOLT - flywheel

6шт.

NUT - 1/2" hex., light, jam, N.F. thread w/lockwasher

6шт.

O2148AB

DOWEL - crankshaft bearing cap

12шт.

O3223AB

SCREW - set, fan drive pulley

1шт.

NUT - 1/2" hex. jam, N.C. thread

1шт.

O5565AB

GEAR, RING

GEAR - flywheel ring, (112 teeth)

1шт.

O7752AB

PLUG - crankshaft oil, for tractors no. 4818099 and after

1шт.

A866AA

FLYWHEEL WITH RING GEAR (Prior to tractor no. 4818099) See 3372AA

1шт.

3372AA

FLYWHEEL - with ring gear (Tractor no. 4818099 and after) See A866AA

1шт.
