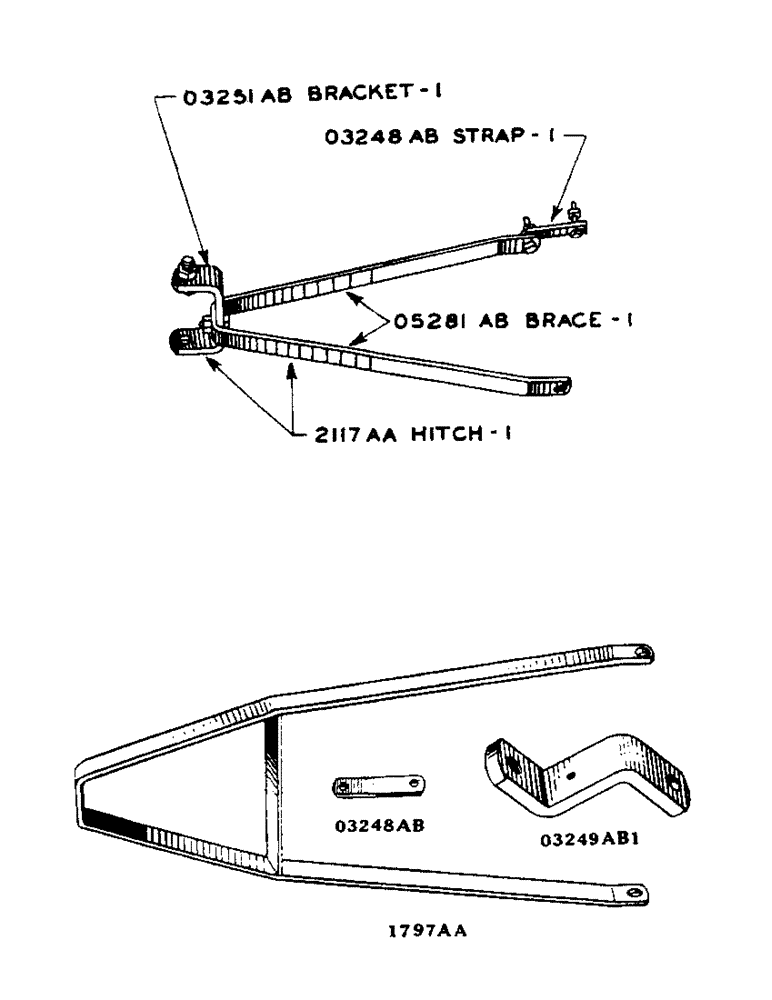

Запчасти Case IH D-SERIES (173) - DRAW BAR HITCH, MODEL "D" TRACTOR, DRAW BAR RAISED HITCH (09) - CHASSIS

O3248AB

STRAP, draw bar hitch

1шт.

BOLT, 1/2" x 3" machine, with hexagon nuts

2шт.

WASHERS, 1/2" standard lock

2шт.

O3251AB

BRACKET, draw bar hitch

1шт.

BOLT, 5/8" x 2" machine, with hexagon nuts

1шт.

BOLT, 1" x 3" machine, with hexagon nuts

1шт.

WASHER, 1" standard lock

1шт.

WASHER, 5/8" standard lock

1шт.

O5281AB

BRACE, draw bar hitch

1шт.

2117AA

DRAW BAR HITCH ATTACHMENT. Consists of the above items. (Machinery account)

1шт.

O3248AB

STRAP, draw bar hitch

1шт.

BOLT, 1/2" x 3" machine

2шт.

WASHER, 1/2" standard lock

2шт.

O3249AB1

BRACKET, draw bar hitch

1шт.

BOLT, 1/2" x 1-3/4" machine

1шт.

BOLT, 1" x 3" machine

1шт.

WASHER, 1" standard lock

1шт.

WASHER, 1/2" standard lock

1шт.

1797AA

BRACE, draw bar hitch, with spacer

1шт.

862AA

SPECIAL DRAW BAR HITCH ATTACHMENT. Consists of above items. (Machinery account)

1шт.
