Запчасти Case IH 706 (K-02[A]) - DRAWBARS AND HITCHES, FIXED DRAWBAR, FARMALL HI-CLEAR TRACTORS Drawbars & Hitches

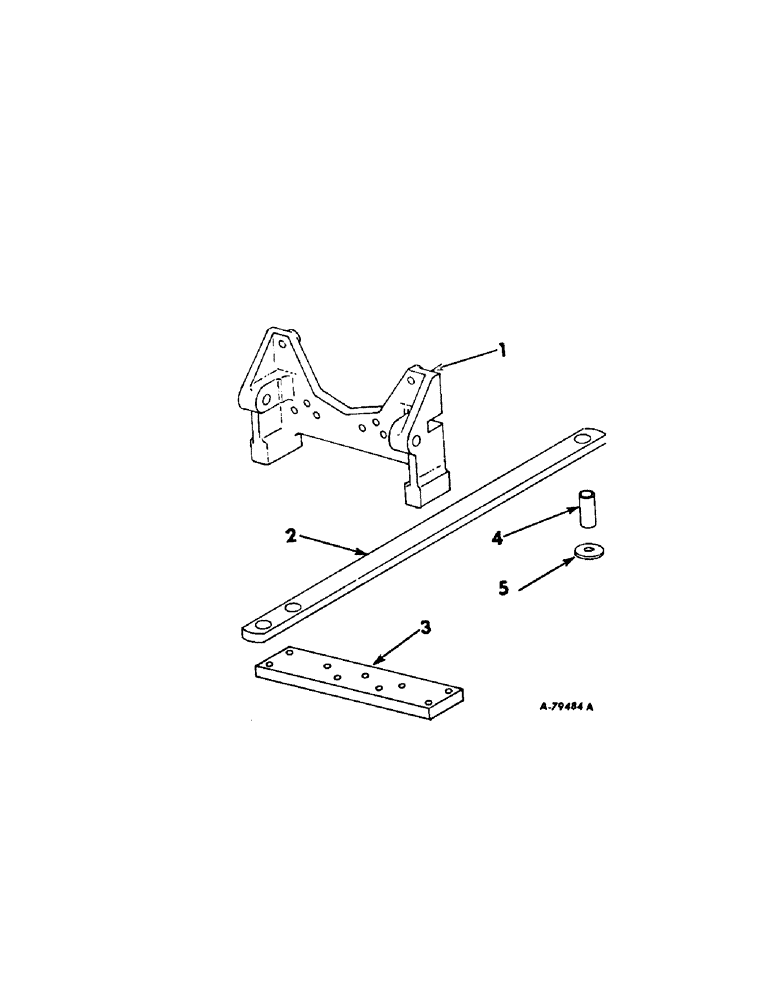

Схема запчастей Case IH 706 - (K-02[A]) - DRAWBARS AND HITCHES, FIXED DRAWBAR, FARMALL HI-CLEAR TRACTORS Drawbars & Hitches
4
1
2
3
5

Артикул

Название

Примечание

Количество

1

383385R3

SPROCKET ASSY.

SUPPORT, drawbar, tractors w/o three point hitch

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

220081

NUT

3/4-10 hex

2шт.

2

387227R1

DRAWBAR

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

382198R1

BAR

PLATE, drawbar support

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd. cap

4шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot

1шт.

5

57655D

PLATE

drawbar pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 12
