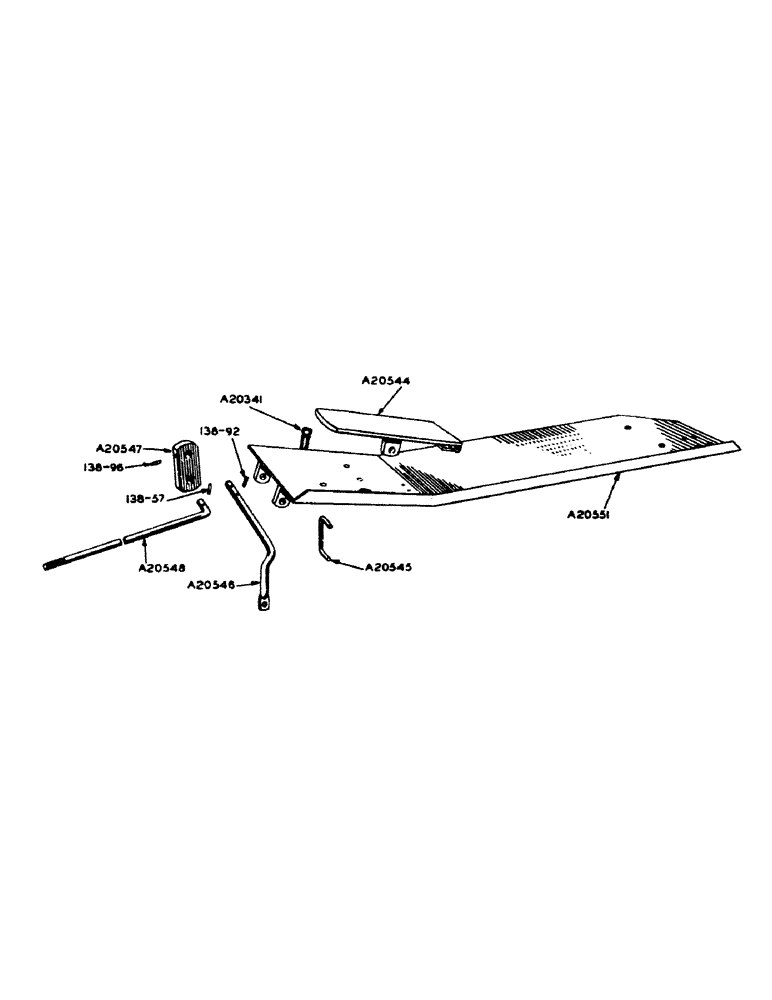

Запчасти Case IH 700 (105) - TREADLE CLUTCH PEDAL, "800" SERIES (06) - POWER TRAIN

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , A20548 rod 1/8" x 3/4", Slotted

1шт.

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Clutch pedal lever 3/16" x 3/4", Slotted

1шт.

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , A20546 to A20547 3/16" x 1", Slotted

1шт.

A20341

SCREW, clutch pedal stop

1шт.

NSS

NOT SOLD SEPARAT

1/4" N.F. hex nut

2шт.

A20544

PEDAL, clutch

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. truss hd. mach. screw w/hex nut and lockwasher

2шт.

A20545

LINK, clutch pedal

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin

2шт.

A20546

LEVER

clutch pedal

1шт.

A20547

LEVER, clutch control rod

1шт.

A20548

ROD, lower valve spool control

1шт.

A20726

PIN, clutch pedal return catch

1шт.
