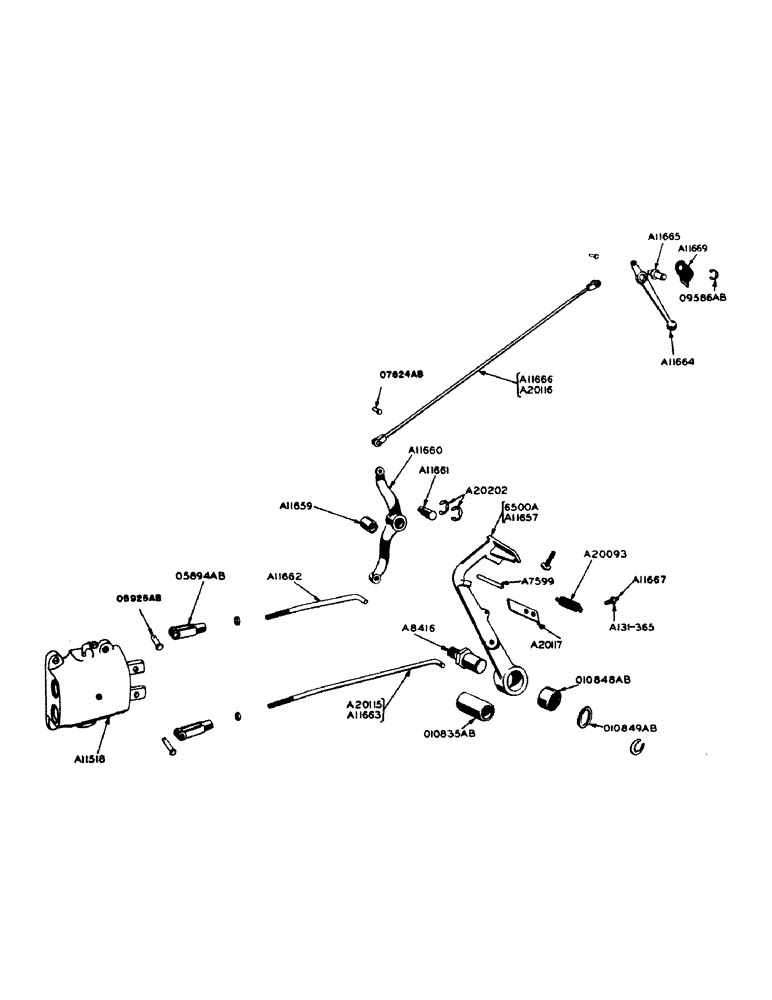

Запчасти Case IH 700 (104) - DIRECT DRIVE AND CLUTCH CONTROL PARTS, "800" SERIES (06) - POWER TRAIN

131-365

LOCK NUT

MARSDEN NUT, 3/8" (A11667)

1шт.

A7599

PIN, clutch pedal stop (all but Orchard)

1шт.

A7824

X

PIN, control rod clevis

2шт.

NSS

NOT SOLD SEPARAT

3/32" x 5/8" cotter pin

2шт.

A8416

STUD, clutch pedal pivot (Orchard only)

1шт.

A11657

TOOL

PEDAL, clutch (for all but Orchard models) see 6500A

1шт.

NSS

NOT SOLD SEPARAT

3/8" fin. hex jam nut (NC)

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting

1шт.

A11658

CRANK, direct drive bell (use A11660)

1шт.

A11659

BUSHING, bell crank

1шт.

A11660

CRANK, bell, direct drive w/bushing

1шт.

A11661

PIN, pivot, bell crank

1шт.

A11662

ROD, upper valve spool control

1шт.

NSS

NOT SOLD SEPARAT

3/8" fin. hex jam nut (NF)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

A11663

ROD, lower valve spool control (all but Orchard models) (see A20115)

1шт.

NSS

NOT SOLD SEPARAT

3/8" fin. hex jam nut (NF)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

A11664

LEVER

direct drive hand

1шт.

A11665

STUD, hand lever

1шт.

NSS

NOT SOLD SEPARAT

1/2" std. lockwasher

1шт.

A11666

ROD, direct drive link (for all but orchard models) (see A20116)

1шт.

A11667

SCREW, clutch pedal return spring

1шт.

A11668

BRACKET, hand lever stop (see A11669)

1шт.

A11669

BRACKET, direct drive stop assembly

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1/2" roll pin

1шт.

NSS

NOT SOLD SEPARAT

1/4" NC fin. hex jam nut

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" (NC) fin. hex bolt

1шт.

A20093

SPRING

clutch pedal return

1шт.

A20115

ROD, lower valve spool control (orchard models only) (see A11663)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

3/8" fin. hex jam nut (NF)

1шт.

A20116

ROD, direct drive link (for orchard models only) (see A11666)

1шт.

A20117

BAR, adjustable clutch pedal stop (for orchard models only)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" carr. bolt (NC) w/fin. nuts and lockwashers

2шт.

A20139

SCREW, stop, clutch pedal

1шт.

A20202

RING

"E" RING, bell crank pivot pin

2шт.

6500A

PEDAL, clutch (orchard only) (see A11657)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 90 Lincoln fitting #5400

1шт.

O5894AB

YOKE

CLEVIS, converter valve control rod

2шт.

O5925AB

X

PIN, control rod clevis

2шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

2шт.

O9586AB

X

"E" RING, hand lever stud

1шт.

O10835AB

X

SLEEVE, brake pedal cross shaft and clutch pedal (for all but Orchard models)

1шт.

O10848AB

X

BEARING, needle clutch pedal (Torrington #B2420-OH) (for Orchard model only)

1шт.

O10849AB

X

OIL SEAL, clutch pedal (for Orchard models only)

2шт.
