Запчасти Case IH 700 (102) - TORQUE CONVERTER AND PARTS (06) - POWER TRAIN

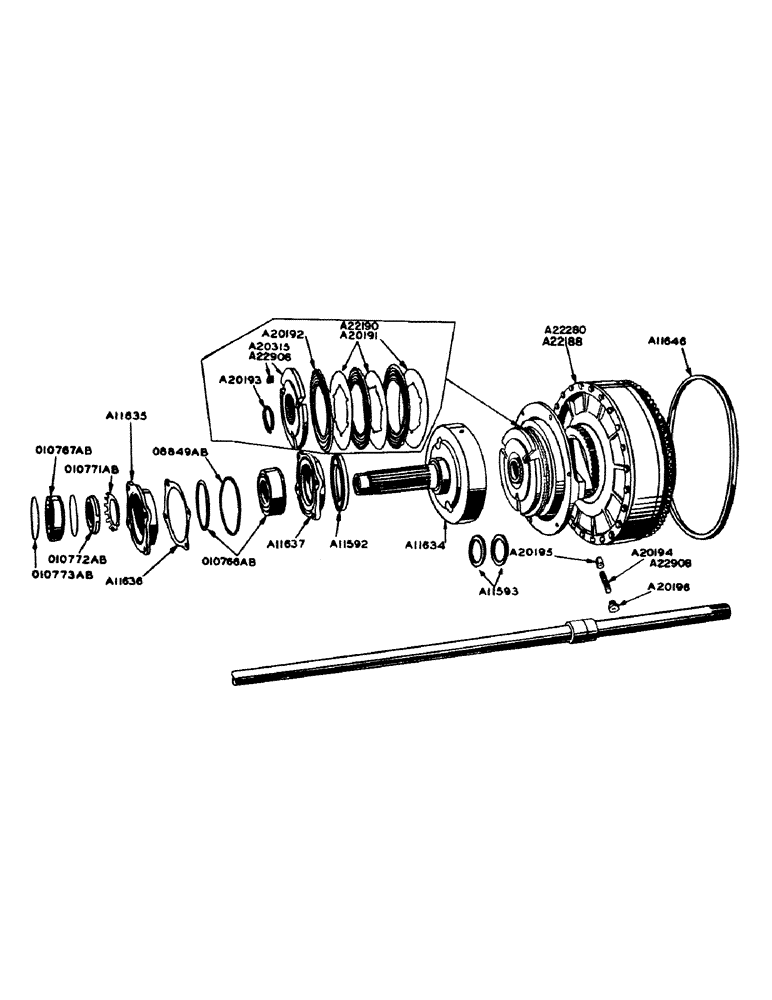

Схема запчастей Case IH 700 - (102) - TORQUE CONVERTER AND PARTS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A11593

OIL RESERVOIR

OIL SEAL, clutch shaft and PTO shaft

2шт.

A11646

GASKET

, Serial Range: converter-flywheel

1шт.

A20191

PLATE

clutch, driven (polished steel) (A22188 converter)

3шт.

A20192

PLATE

clutch drive, bronze with grooves (A22188 converter)

3шт.

A20193

RING

SNAP RING

1шт.

A20194

SPRING, relief valve (A22188 converter)

1шт.

A20195

PLUNGER

relief valve

1шт.

A20196

GASKET

CAP, relief valve

1шт.

A20315

BACKPLATE, converter clutch (includes locks and screws) (A22188 converter)

1шт.

A21295

KIT

SHAFT, clutch, P.T.O. and hydraulic drive (use with A22188 converter) (Replaces A21290)

1шт.

A21372

SHAFT, clutch, PTO and hydraulic drive (use with A22820 converter)

1шт.

A22188

CONVERTER, torque, clutch assembly (use A22820)

1шт.

A22190

X

PLATE, driven (steel) (A22820 converter)

3шт.

A22191

LARGE PLATE

PLATE, drive (bronze with grooves) (A22820 converter)

3шт.

A22820

CONVERTER, torque, clutch assembly, type "E"

1шт.

For breakdown of torque converter parts, see insert in hardcopy of this catalogue

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. 12 pt. bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex nut self-locking

2шт.

A22906

X

BACK PLATE, converter clutch (includes locks and screws) (A22820 converter)

1шт.

A22908

SPRING

relief valve (dyed yellow) (A22820 converter)

1шт.

A22909

BEARING

new

1шт.

A21273

SEALING RING

RING

1шт.

A20278

WASHER

deflector

1шт.

Выбрано товаров: 23
