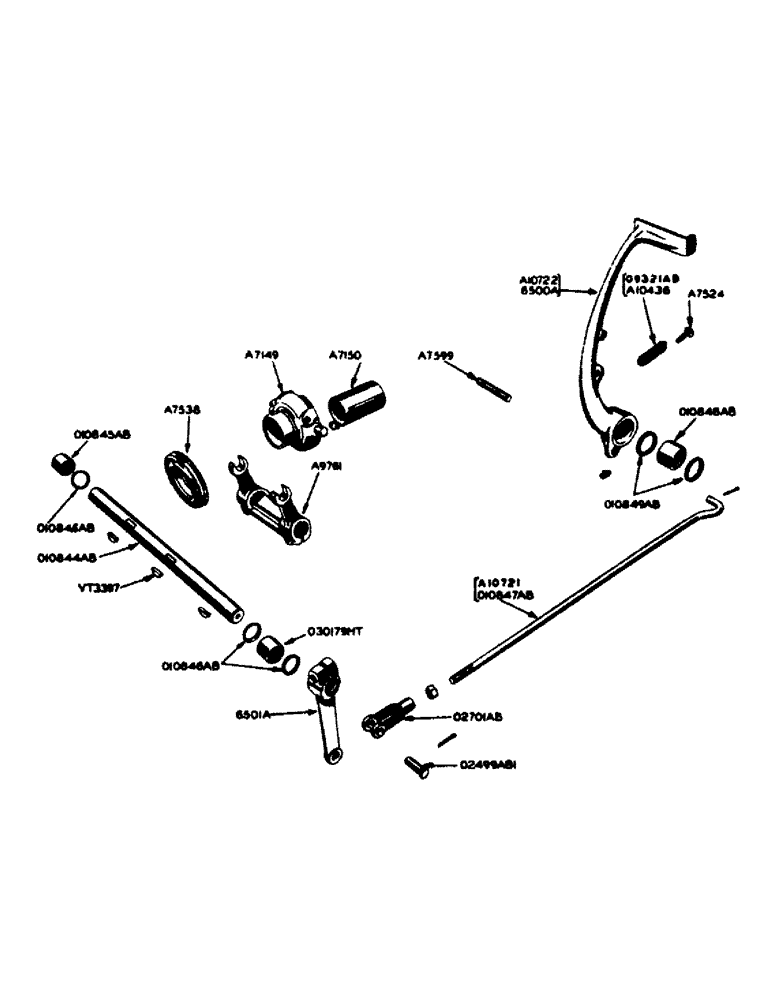

Запчасти Case IH 700 (101) - FOOT CLUTCH THROWOUT PARTS, "700" SERIES (06) - POWER TRAIN

A7149

SLEEVE

clutch release

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting No. 5000

1шт.

A7150

TUBE

clutch release sleeve

1шт.

A7524

SCREW, clutch pedal return spring (in platform) (all but orchard models)

1шт.

NSS

NOT SOLD SEPARAT

3/8" N.C. hex nut and lockwasher

1шт.

A7538

BEARING

clutch release (aetna no. A2201-1)

1шт.

A7599

PIN, clutch foot pedal stop, in A7593 top cover

1шт.

A9761

YOKE

clutch throwout

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" hex bolt w/lockwasher

2шт.

A10436

VALVE SPRING

SPRING, clutch pedal return (all but orchard models)

1шт.

A10721

ROD, clutch throwout (orchard models)

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

A10722

PEDAL, clutch (Orchard models)

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting #5400

1шт.

A10723

CLIP, clutch pedal return spring (Orchard models)

1шт.

6499A

X

YOKE (use A9761)

1шт.

6500A

PEDAL, clutch (all but Orchard models)

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

6501A

LEVER, clutch throwout shaft

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.F. hex bolt w/hex nut and lockwasher

1шт.

O2499AB1

X

PIN, clutch throwout rod yoke

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

O2701AB

X

YOKE, clutch throwout rod

1шт.

O9321AB

X

SPRING, clutch pedal return (Orchard models)

1шт.

O10844AB

SHAFT, clutch throwout

1шт.

O10845AB

X

BEARING, needle, clutch throwout shaft, closed end (Torrington no. M16161)

1шт.

O10846AB

X

OIL SEAL, clutch throwout shaft

3шт.

O10847AB

ROD, clutch throwout

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

O10848AB

X

BEARING, needle, clutch pedal (Torrington no. B2420-OH)

1шт.

O10849AB

X

OIL SEAL, clutch pedal

2шт.

O30179HT

X

BEARING, needle, clutch throwout shaft, open end (Torrington no. B1616-OH)

1шт.

VT3397

KEY, for 010844AB shaft (Woodruff #15 hardened)

3шт.
