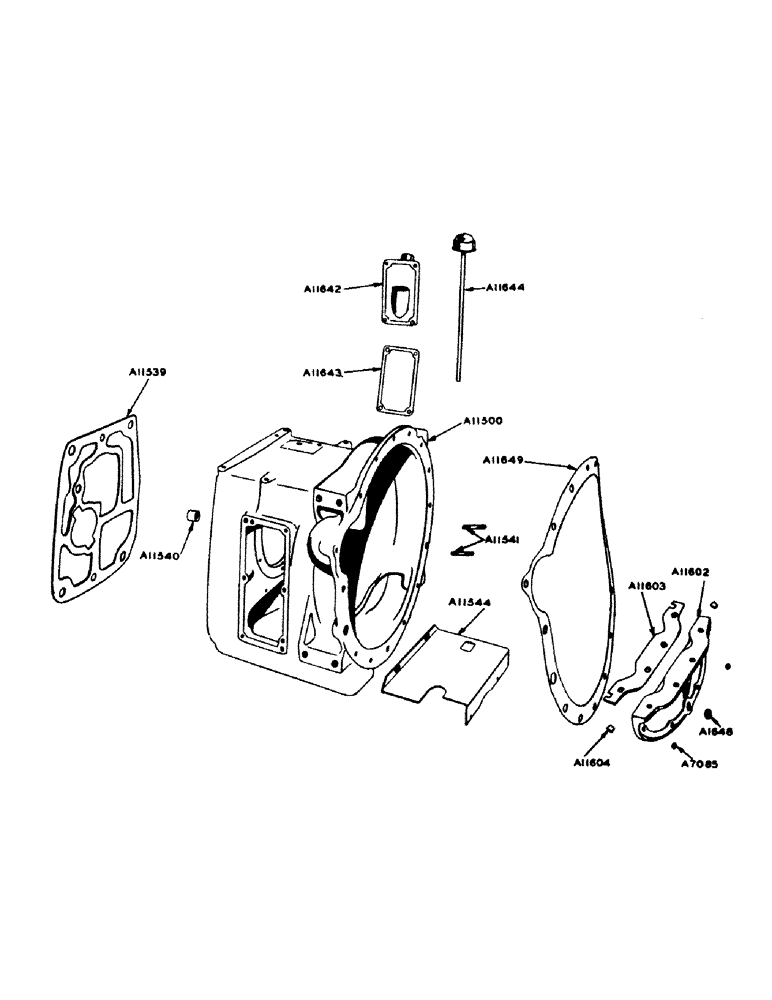

Запчасти Case IH 700 (099) - CONVERTER HOUSING AND BREATHER, "800" SERIES (06) - POWER TRAIN

131-528

LOCK NUT,3/8"-24

NUT, LOCK, , Flexloc #20 3/8"-24

2шт.

NSS

NOT SOLD SEPARAT

3/8" STD. LOCKWASHER

2шт.

A7085

WASHER

converter housing seal plate

2шт.

A11500

X

HOUSING, torque converter

1шт.

NSS

NOT SOLD SEPARAT

3/4" PT sq. hd. mag. drain plug

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" (NF) hex bolt w/lockwasher and nut

4шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" (NC) hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" (NF) hex bolt w/lockwasher and nut

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-3/4" (NC) hex bolt w/lockwasher

1шт.

A11539

GASKET

converter housing to transmission case

1шт.

A11540

CUP

shift rail seal

1шт.

A11541

SPINDLE

STUD, converter support

2шт.

A11544

BUSHING

BAFFLE, converter oil, bottom

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" fin. hex bolt w/lockwasher

4шт.

A11602

PLATE, converter housing seal

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" fin. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" fin. hex bolt w/lockwasher

4шт.

A11603

OIL PAN GASKET SET

seal plate (included in A20171 gasket kit on pages 7 and 43)

1шт.

A11604

OIL PAN GASKET SET

seal plate (included in A20171 gasket kit on pages 7 and 43)

2шт.

A11640

ANGLE

COVER, filler and breather (use A11642)

1шт.

A11642

COVER AND TUBE, filler and breather

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" fin. hex bolt (NC) w/lockwasher

4шт.

A11643

GASKET

filler and breather cover

1шт.

A11644

BREATHER AND DIP STICK

1шт.

A11648

WASHER, converter seal plate (used on general purpose and high clearance tractors)

1шт.

NSS

NOT SOLD SEPARAT

9/16" x 2-1/2" N.F. hex bolt w/nut and lockwasher

1шт.

A11649

GASKET

cyl. block to converter housing

1шт.
