Запчасти Case IH 700 (098) - CLUTCH HOUSHING, "700" SERIES (06) - POWER TRAIN

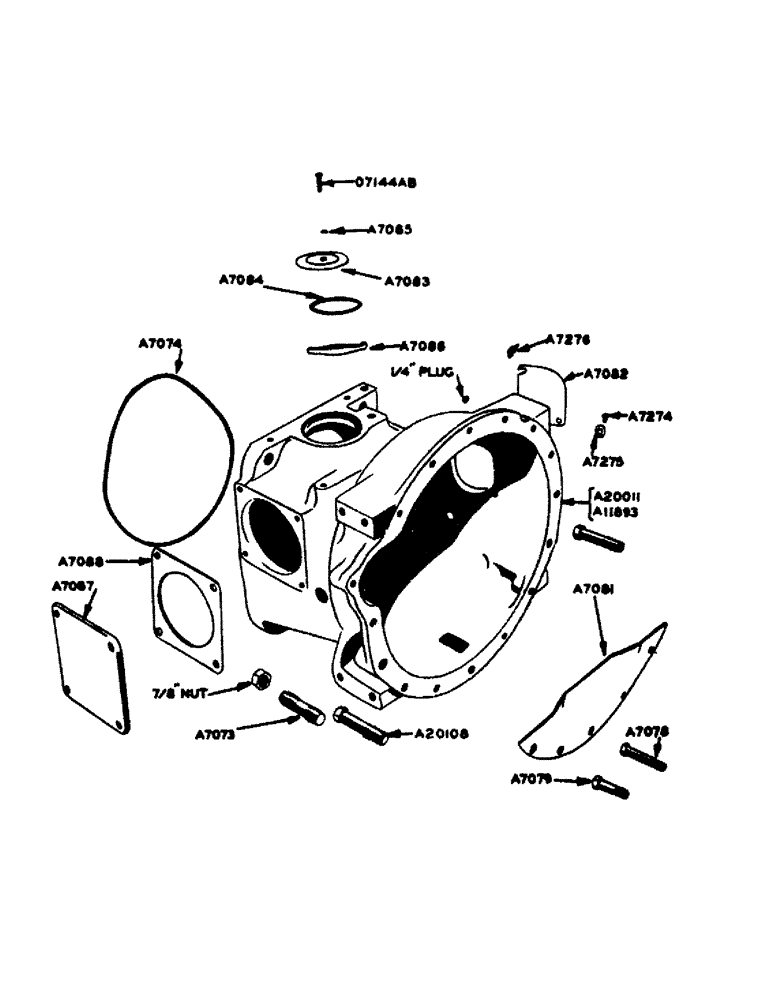

Схема запчастей Case IH 700 - (098) - CLUTCH HOUSHING, "700" SERIES (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7073

STUD

transmission case to clutch housing

4шт.

NSS

NOT SOLD SEPARAT

7/8" N.F. hex nut

4шт.

NSS

NOT SOLD SEPARAT

7/8" STD. LOCKWASHER

4шт.

A7074

GASKET

clutch housing to transmission case

1шт.

A7078

STEP BOLT

dowel, clutch housing to cylinder block, long

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut and lockwasher

1шт.

A7079

TUBE

BOLT, dowel, clutch housing to cylinder block, short

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut and lockwasher

1шт.

A7081

BEARING

SHIELD, dust, clutch housing

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" N.C. hex bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

A7082

COVER

clutch housing hand hole

1шт.

A7083

COVER

clutch housing top

1шт.

A7084

GASKET

clutch housing top cover

1шт.

A7085

WASHER

clutch housing top cover screw

1шт.

A7086

PIN

CLAMP, clutch housing top cover

1шт.

A7087

SPINDLE

COVER, belt pulley housing

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" N.C. hex bolt w/lockwasher

4шт.

A7088

GASKET

belt pulley housing cover (A7087)

1шт.

A7274

BOLT, shoulder, for A7082 cover

1шт.

A7275

WASHER, spring, for A7082 cover

1шт.

A7276

SCREW, wing, for A7082 cover

1шт.

A11893

X

HOUSING, clutch (see A20011)

1шт.

NSS

NOT SOLD SEPARAT

1/4" sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.F. hex bolt w/nut and lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.F. hex bolt w/hex nut and lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-3/4" N.C. hex bolt w/lockwasher

1шт.

A20011

HOUSING, hand clutch

1шт.

A20108

BOLT, cylinder block to clutch housing

2шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. hex nut and lockwasher

2шт.

O7144AB

SCREW, clutch housing top cover

1шт.

Выбрано товаров: 32
