Запчасти Case IH 700 (175) - STEERING ARMS, TIE ROD AND DRAG LINK, FOR STANDARD 4-WHEEL TRACTORS (05) - STEERING

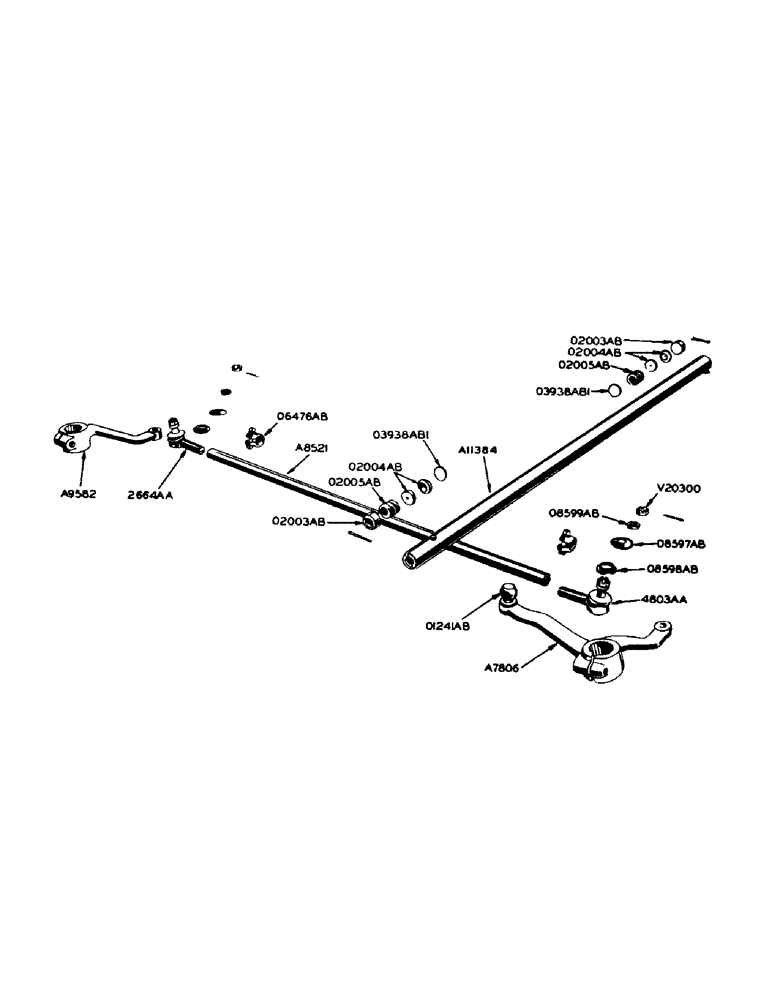

Схема запчастей Case IH 700 - (175) - STEERING ARMS, TIE ROD AND DRAG LINK, FOR STANDARD 4-WHEEL TRACTORS (05) - STEERING

Артикул

Название

Примечание

Количество

A7794

ARM, front wheel steering, R.H. (use A9582)

1шт.

A7806

ARM, front wheel steering, L.H., with 01241AB ball and 1/2" x 3" N.F. hex bolt, nut and lockwasher

1шт.

A8521

TUBE, tie rod (38" long)

1шт.

A9582

U-BOLT

ARM, front wheel steering, R.H., with 1/2" x 3" N.F. hex bolt, nut and lockwasher

1шт.

A11384

LINK, steering drag, complete with springs and bearings

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

2шт.

2664AA

X

END, tie rod, R.H.

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

4803AA

X

END, tie rod, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

O1241AB

BALL, for L.H. steering arm

1шт.

O2003AB

X

SCREW, adjusting, drag link

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 2" cotter pin

2шт.

O2004AB

BEARING, drag link

4шт.

O2005AB

X

SPRING, drag link

2шт.

O3938AB1

X

SEAT, drag link

2шт.

O6476AB

X

CLAMP, tie rod tube, with 3/8" x 1-3/4" N.F. hex bolt, hex nut and lockwasher

2шт.

O8597AB

X

COVER, dust, lower

2шт.

O8598AB

X

WASHER, dust cover, rubber

2шт.

V20300

OPERATOR MANUAL

NUT, slotted hex

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

2шт.

Выбрано товаров: 21
