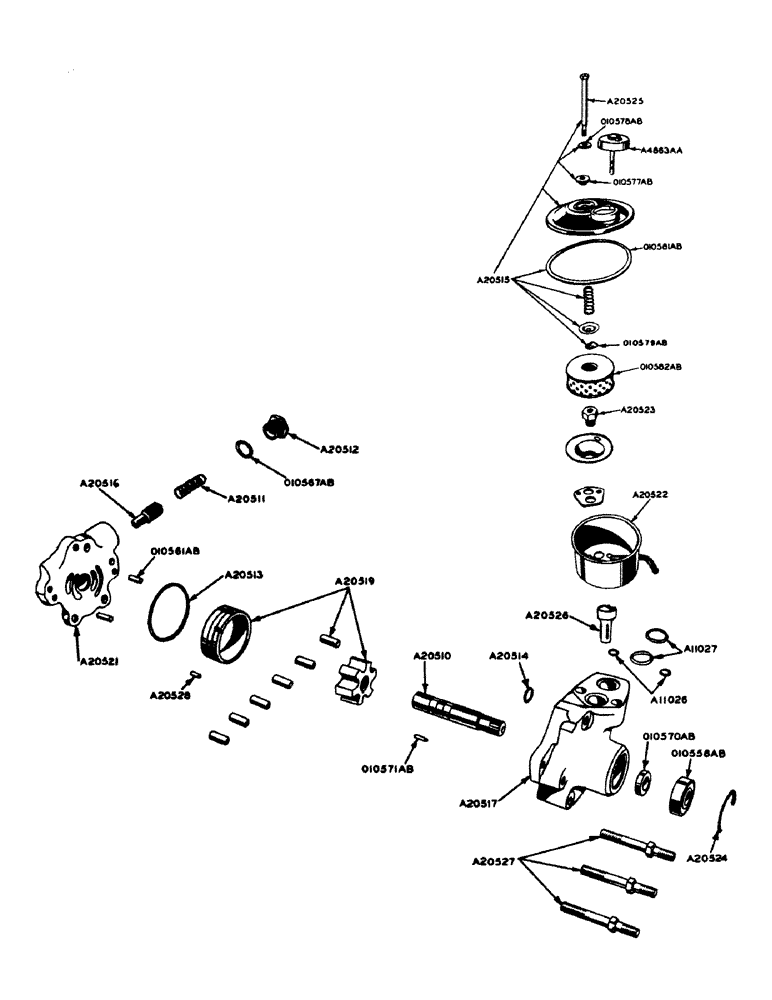

Запчасти Case IH 700 (156) - PARTS FOR A20372 HYDRAULIC POWER STEERING PUMP (05) - STEERING

A11026

GASKET

reservoir mounting screw

2шт.

A11027

GASKET

reservoir mounting bolt

2шт.

A20510

SHAFT

pump

1шт.

A20511

SPRING

flow control

1шт.

A20512

CAP, relief valve

1шт.

A20513

O-RING

"O" RING, pump, Serial Range: body-cover

1шт.

A20514

O-RING

"O" RING, by-pass

1шт.

A20515

X

COVER, reservoir

1шт.

A20516

VALVE

pressure relief

1шт.

A20517

BODY, pump w/bushing and venturi

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" N.C. hex hd. bolt w/lockwasher

2шт.

A20519

X

KIT, includes, 1 - cam, 6 - rollers and 1 carrier

1шт.

A20521

COVER

pump w/bushing and 2 - 010561AB dowels

1шт.

A20522

BODY, reservoir

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. cap screw

2шт.

A20523

STUD

reservoir body mounting

1шт.

A20524

RING, SNAP

SNAP RING, bearing retainer

1шт.

A20525

X

BOLT, reservoir cover

1шт.

A20526

VENTURI

pump body

1шт.

A20527

STUD, pump mounting

3шт.

A20528

PIN

DOWEL PIN, cam

1шт.

A4863AA

X

CAP AND GAUGE, reservoir cover

1шт.

O10558AB

X

BEARING, pump shaft (ND99503)

1шт.

O10561AB

PIN, dowel, pump, Serial Range: body-cover

2шт.

O10567AB

X

"O" RING, relief valve cap

1шт.

O10570AB

X

OIL SEAL, pump shaft

1шт.

O10571AB

X

KEY, driveshaft to roller carrier

1шт.

O10577AB

X

GASKET, reservoir cover screw

1шт.

O10578AB

X

WASHER, reservoir cover screw

1шт.

O10579AB

SPEED NUT, reservoir cover screw

1шт.

O10581AB

X

GASKET, reservoir cover

1шт.

O10582AB

X

ELEMENT, filter

1шт.
