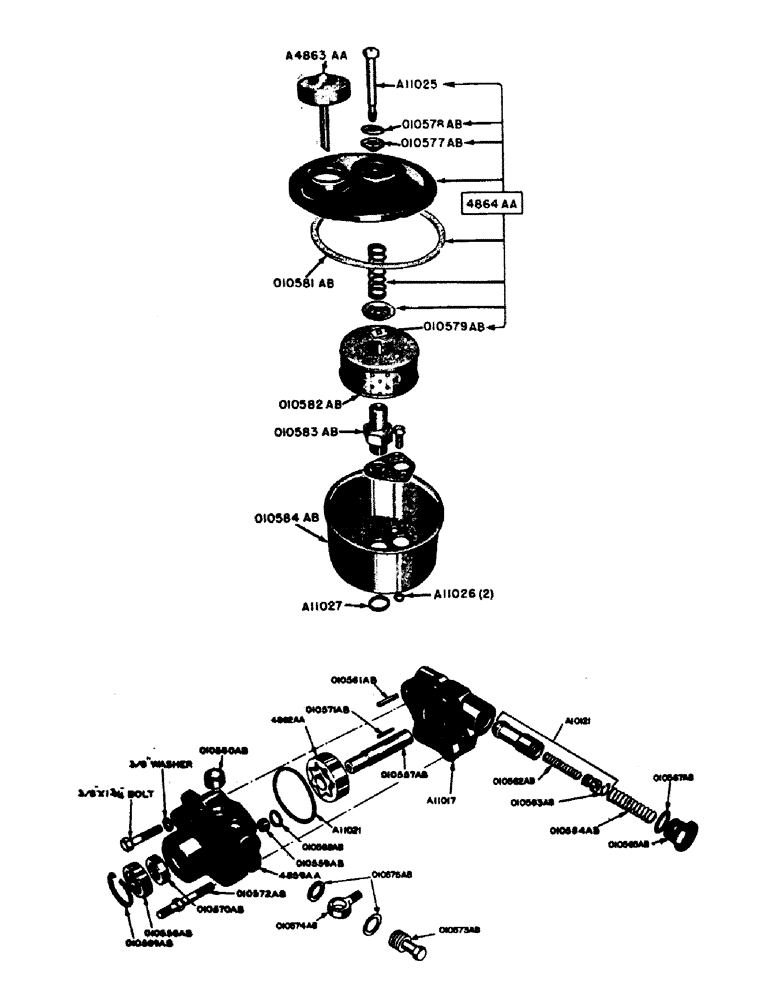

Запчасти Case IH 700 (154) - HYD. POWER STEERING PARTS FOR A10002 PUMP & RESERVOIR, HYD. POWER STEERING (05) - STEERING

A10121

SPARE PART

VALVE, pump, assembly

1шт.

A11017

COVER, pump, with bushing and 010561AB dowels

1шт.

A11025

SCREW, reservoir cover

1шт.

A11026

GASKET

"O" RING, mounting screw

2шт.

A11027

GASKET

"O" RING for 010583AB stud

1шт.

4859AA

BODY, pump, with bushings and 010559AB, 010560AB retainers

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" hex hd. cap screw, N.C. thrd. w/lockwasher

2шт.

4862AA

ROTOR ASSEMBLY (inner and outer rotor)

1шт.

A4863AA

X

CAP, filler, assembly, pump reservoir cover

1шт.

4864AA

COVER ASSEMBLY, pump reservoir

1шт.

O10557AB

SHAFT, pump

1шт.

O10558AB

X

BEARING, pump shaft

1шт.

O10559AB

RETAINER, pump body gasket (9/16" dia. x 1/4" long)

1шт.

O10560AB

RETAINER, pump body gasket (3/4" x 5/8" long)

1шт.

O10561AB

DOWEL, pump body

2шт.

O10562AB

SPRING, pump relief valve

1шт.

O10563AB

RING, SNAP

RETAINER RING, pump relief valve

1шт.

O10564AB

X

SPRING, pump flow control valve

1шт.

O10565AB

FITTING, bolt, pump valve cap

1шт.

O10566AB

"O" RING, pump, Serial Range: body-cover

1шт.

O10567AB

X

"O" RING, valve cap bolt fitting

1шт.

O10568AB

X

"O" RING, pump flow director

1шт.

O10569AB

RETAINER RING, for 010558AB bearing

1шт.

O10570AB

X

OIL SEAL, pump

1шт.

O10571AB

X

PIN, pump drive

1шт.

O10572AB

STUD, pump, Serial Range: body-cover

3шт.

O10573AB

BOLT, pump hose fitting

2шт.

O10574AB

FITTING, pump hose

2шт.

O10575AB

WASHER, for 010574AB hose fitting

4шт.

O10577AB

X

GASKET, pump reservoir cover screw

1шт.

O10578AB

X

WASHER, pump reservoir cover screw

1шт.

O10579AB

NUT, speed, pump reservoir screw

1шт.

O10581AB

X

GASKET, pump reservoir cover

1шт.

O10582AB

X

FILTER ELEMENT, pump reservoir

1шт.

O10583AB

STUD, pump reservoir return

1шт.

O10584AB

BODY, pump reservoir

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" hex hd. cap screw, N.C. thrd. w/lockwasher

2шт.
