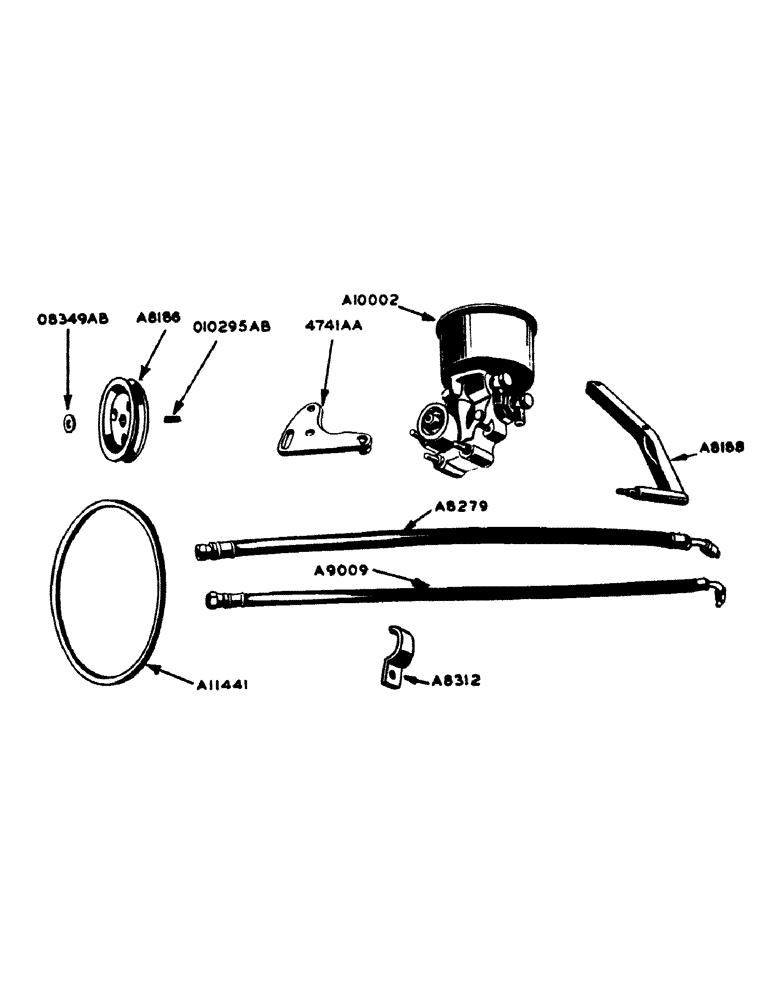

Запчасти Case IH 700 (153) - HYDRAULIC POWER STEERING PUMP (05) - STEERING
№
Артикул
Название
Примечание
Количество
A8186
PULLEY
power steering pump
1шт.
NSS
NOT SOLD SEPARAT
5/16" x 3/4" N.C. hex bolt w/lockwasher
1шт.
A8188
STRAP, pump mounting, with pivot pin (for A10002 pump)
1шт.
NSS
NOT SOLD SEPARAT
7/16" x 1-1/2" N.C. hex bolt w/lockwasher (for gasoline tractors only)
2шт.
NSS
NOT SOLD SEPARAT
3/8" N.F. hex nut and lockwasher
1шт.
A8279
HOSE ASSY.
HOSE, pump to valve (37-1/2" long) (for std. 4-wheel models) (for A10002 pump)
1шт.
NSS
NOT SOLD SEPARAT
Inverted flared tube male connector - 3/8" tube size x 3/8" thrd. (imperial no. 45W or weatherhead no. 236 x 6) (connects, Serial Range: hose-valve)
1шт.
A8312
CLIP, power steering hose (on radiator bracket)
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 3/4" N.F. hex bolt w/lockwasher
1шт.
A9009
TUBE ASSY.
HOSE, pump to valve (40" long) (for std. 4-wheel models) (for A10002 pump)
1шт.
NSS
NOT SOLD SEPARAT
Inverted flared tube male connector - 3/8" tube size x 3/8" pipe thrd. (Imperial #48W or Weatherhead #236 x 6) (connects, Serial Range: hose-valve)
1шт.
A9009
TUBE ASSY.
HOSE, pump to valve (40" long) (for general purpose and orchard models) (for A10002 pump)
2шт.
A10002
PUMP, HYDRAULIC
PUMP, power steering, with reservoir (return hose to pump body)
1шт.
A11441
X,0.38" W x 28.75" L
BELT, , Pump Drive 0.38" W x 28.75" L
1шт.
A20372
PUMP, power steering, with reservoir (return, Serial Range: hose-reservoir)
1шт.
A20401
STRAP, pump mounting, with pivot pin (A20372 pump)
1шт.
NSS
NOT SOLD SEPARAT
7/16" x 1-1/2" N.C. hex bolt w/lockwasher
2шт.
NSS
NOT SOLD SEPARAT
3/8" N.F. hex nut
1шт.
A20405
X
HOSE, valve to pump reservoir (return)
1шт.
NSS
NOT SOLD SEPARAT
5/8" hose clamp
1шт.
A20406
HOSE
pump to valve (pressure)
1шт.
4741AA
PLATE, power steering pump mounting
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1-1/4" N.F. hex bolt w/hex nut, lockwasher and plain washer
1шт.
NSS
NOT SOLD SEPARAT
3/8" N.F. hex nut w/lockwasher
3шт.
O8349AB
X
WASHER, power steering pump pulley
1шт.
O10295AB
X
KEY, power steering pump pulley
1шт.
Выбрано товаров: 26
