Запчасти Case IH 700 (150) - POWER STEERING GEAR, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (05) - STEERING

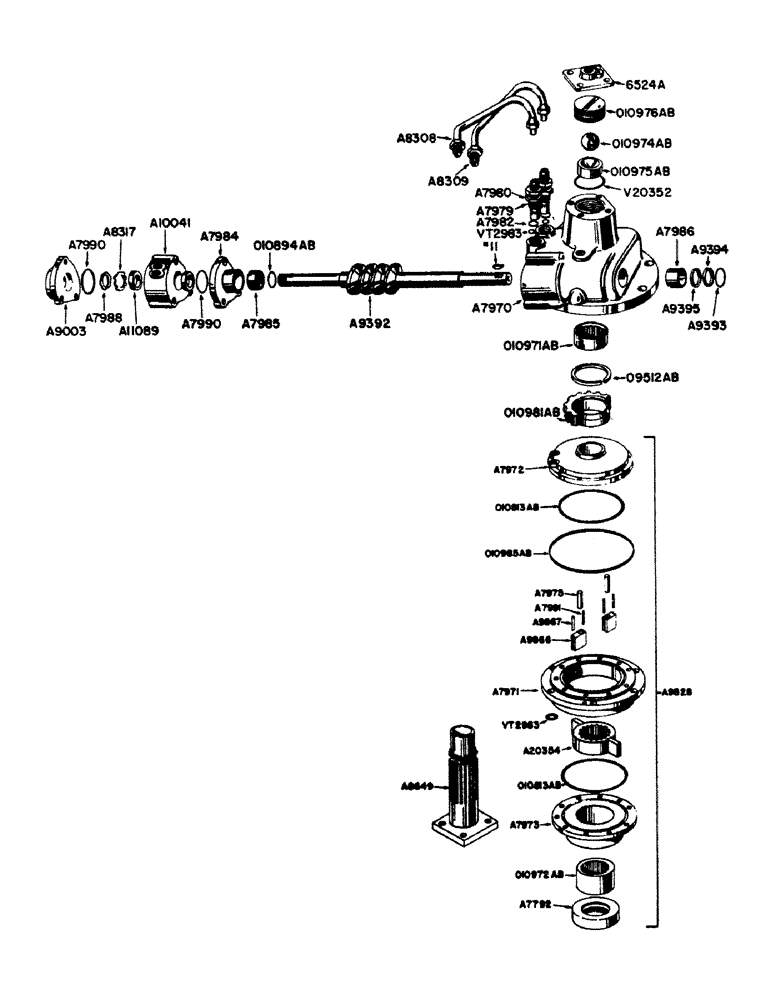

Схема запчастей Case IH 700 - (150) - POWER STEERING GEAR, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (05) - STEERING

Артикул

Название

Примечание

Количество

A7792

X

OIL SEAL, steering spindle upper

1шт.

A7970

HOUSING, steering gear

1шт.

NSS

NOT SOLD SEPARAT

1/2" sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

1/8" sq. hd. pipe plug

1шт.

A7971

BODY, vane

1шт.

A7972

COVER, power steering vane, upper

1шт.

NSS

NOT SOLD SEPARAT

3/8" hex ctsk. headless pipe plug

1шт.

A7973

COVER, power steering vane, lower

1шт.

REFER TO A7973, 1/4" PLUG IS 221-1841

1шт.

NSS

NOT SOLD SEPARAT

1/4" hex ctsk. headless pipe plug

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 2-3/4" N.C. hex socket hd. cap screw

10шт.

A7974

X

VANE, stationary (use 1 - A9866 and 1 - A9867)

1шт.

A7975

PIN

DOWEL PIN, stationary vane

2шт.

A7979

CONNECTOR, vane inlet and outlet

2шт.

A7980

LOCK NUT

LOCKNUT, vane inlet and outlet connector

2шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING, steering vane inlet and outlet connector

2шт.

A7983

SHAFT (use A9392 shaft with A9003 cap)

1шт.

A7984

CARRIER, worm shaft bearing

1шт.

A7985

BEARING, NEEDLE,1.25" ID x 1.5" OD x 0.75"

steering worm shaft, front (Torrington no. GB-2012-OH)

1шт.

A7986

NEEDLE BEARING,1" ID x 1.25" OD x 3"

BEARING, needle, steering worm shaft, rear (Torrington no. GB-1612-OH)

1шт.

A7988

NUT

steering worm shaft thrust bearing

1шт.

A7990

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

"O" RING, steering valve cap and worm shaft bearing carrier

2шт.

A7991

X

SEAL, power steering vane hub

2шт.

A8308

TUBE

power steering valve to housing, long

1шт.

A8309

TUBE, power steering valve to housing, short

1шт.

A8317

LOCK ASSY

LOCK, steering worm shaft nut

1шт.

A8649

SPINDLE, steering, upper section (4-1/32" spline)

1шт.

A9003

CAP, power steering valve

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3-3/4" N.C. hex bolt w/lockwasher

3шт.

A9392

SHAFT, steering worm

1шт.

NSS

NOT SOLD SEPARAT

No. 11 Woodruff key

1шт.

A9393

SEAL

dust, steering worm shaft

1шт.

A9394

RING

quad, steering worm shaft

1шт.

REFER TO A9393-A9394-A9395,IN KIT A22660

1шт.

A9395

CARRIER

steering gear housing dust seal

1шт.

REFER TO A9393-A9394-A9395,IN KIT A22660

1шт.

A9828

1шт.

VANE, torque motor, with covers and body assembly (consists of vane and body with 1 - A7972 cover, 1 - A7973 cover, 2 - 010813AB "o" ring, 1 - 010972AB bearing, 1 - A7792 seal, 2 - A9866 vanes, 2 - A9867 seals, 2 - A7975 pins, 1 - A7991 seal, 10 - VT2983 "o" rings, 1 - 1/4" pipe plug and 10 - 7/16" x 2-3/4" N.C. hex socket hd. cap screws)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" N.C. hex bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher

6шт.

A9866

PIVOT

VANE, stationary

2шт.

A9867

SEAL

stationary vane

1шт.

A10041

VALVE, power steering

1шт.

A11089

KIT

BEARING, thrust, steering worm shaft

2шт.

A20354

VANE, torque motor

1шт.

6524A

COVER, steering gear housing top

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" N.C. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/8" sq. hd. pipe plug

1шт.

O9512AB

X

SNAP RING, steering spindle upper section

1шт.

O10813AB

X

"O" RING, power steering vane body

2шт.

O10971AB

BEARING, ROLLER

BEARING, needle, steering upper spindle (small) (Torrington no. B2824)

1шт.

O10972AB

X

BEARING, needle, steering upper spindle (large) (Torrington no. NB-37)

1шт.

O10974AB

X

BALL, thrust, steering upper spindle

1шт.

O10975AB

SADDLE, steering upper spindle thrust ball

1шт.

O10976AB

PLUG, steering upper spindle thrust ball retaining

1шт.

O10981AB

GEAR, steering worm

1шт.

O10984AB

X

"O" RING, steering worm shaft bearing carrier

1шт.

O10985AB

X

"O" RING, steering gear vane cover

1шт.

V20352

SCREW

"O" RING, steering gear housing top cover

1шт.

VT2983

X

"O" RING, power steering vane cover bolt

10шт.

VT2983

X

"O" RING, steering vane inlet and outlet connection seal

2шт.

Выбрано товаров: 61
