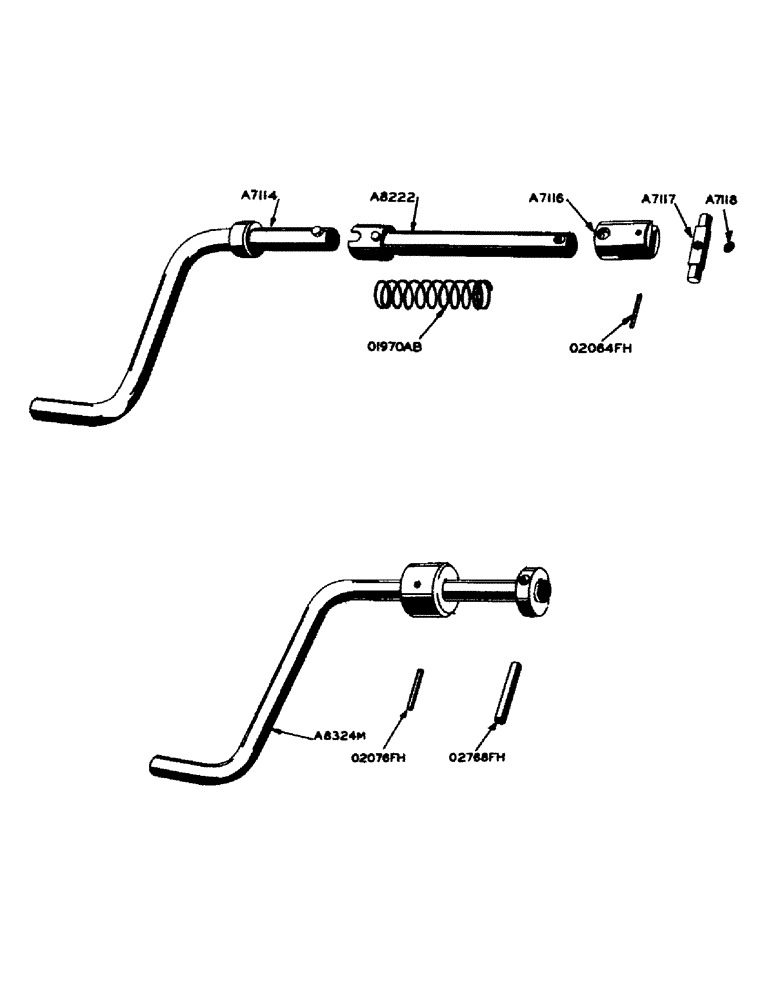

Запчасти Case IH 700 (095) - STARTING CRANK, SPECIAL, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (02) - ENGINE

A7114

CHAIN

CRANK, starting

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 1-1/2" type 1 groove pin

1шт.

A7116

SPROCKET

SLEEVE, starting shaft

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 1-1/2" type 1 groove pin

1шт.

A7117

PIN, starting crank

1шт.

A7118

WASHER, spring, starting crank pin

1шт.

A7153M

CRANK, starting, attachment (machinery item)

1шт.

A8222

SHAFT, with coupling and 7/16" x 1-1/2" type 1 groove pin

1шт.

O1970AB

SPRING, starting crank

1шт.

O2064FH

X

ROLL PIN, starting shaft sleeve to crank pin (3/16" x 1-1/2")

1шт.

A8324M

CRANK, starting, attachment (machinery item), special for Standard 4-wheel tractors

1шт.

O2076FH

X

ROLL PIN, starting crank (5/16" x 2-1/4"), special for Standard 4-wheel tractors

1шт.

O2768FH

X

ROLL PIN, starting crank collar (1/2" x 3"), special for Standard 4-wheel tractors

1шт.
