Запчасти Case IH 700 (094) - OIL COOLER HOSES AND TUBES (02) - ENGINE

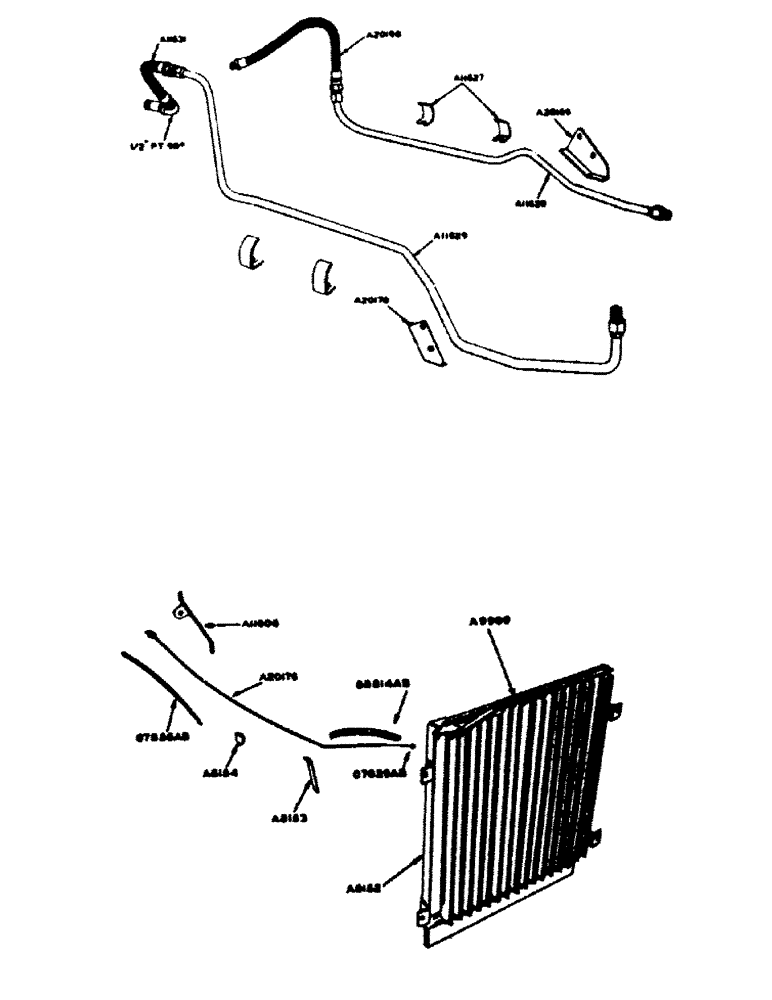

Схема запчастей Case IH 700 - (094) - OIL COOLER HOSES AND TUBES (02) - ENGINE

Артикул

Название

Примечание

Количество

A11627

CLIP, converter to radiator tube

4шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" fin. hex bolt (NC) w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/8" SAE PLAIN WASHER

8шт.

A11628

TUBE, from converter to flex. hose, right

1шт.

A23109

CONNECTOR, ELEC

use with tube above

1шт.

A11629

TUBE, from converter to flex. hose, left

1шт.

A11631

X

HOSE, flex., from tube to radiator, left

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 90 deg. P.T. galv. pipe female elbow

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" galv. pipe nipple

1шт.

A20169

GUARD, converter tube, R.H.

1шт.

NSS

NOT SOLD SEPARAT

5/8" N.C. hex bolt w/lockwasher

2шт.

A20170

GUARD, converter tube, L.H.

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1" N.C. hex bolt w/lockwasher

2шт.

A20198

X

HOSE, flexible from tube to radiator, right

1шт.

A20388

CLIP, R.H. oil cooler hose

1шт.

A8152

SHUTTER, radiator

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.F. hex bolt w/lockwasher, radiator shutter

4шт.

A8153

CLIP, shutter control cable (on cylinder block), radiator

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" N.C. rhd. mach. screw, radiator shutter

1шт.

NSS

NOT SOLD SEPARAT

5/16" Shakeproof ext.-int. tooth lockwasher #4018-24, radiator shutter

1шт.

A8154

CLIP, shutter control cable support (on rear hood latch clip), radiator

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" N.F. hex bolt, radiator shutter

1шт.

A9251

CONTROL, flexible, radiator shutter (for orchard models) (see A20176)

1шт.

A9252

BRACKET, shutter control (for orchard models) (see A11606), radiator

1шт.

A9909

SPRING, radiator shutter

1шт.

A11606

SUPPORT, shutter control cable and side lamp support strap (for all but orchard models) (see A9252), radiator

1шт.

A20176

CONTROL, flexible, radiator shutter (for all but orchard models) (see A9251)

1шт.

O7029AB

CLAMP, shutter control wire, radiator

1шт.

NSS

NOT SOLD SEPARAT

No. 8 x 1/4" rhd. mach. screw, radiator shutter

1шт.

O7281AB

CLIP, shutter control cable, on rear fuel tank stud (for orchard models), radiator

1шт.

Выбрано товаров: 30
