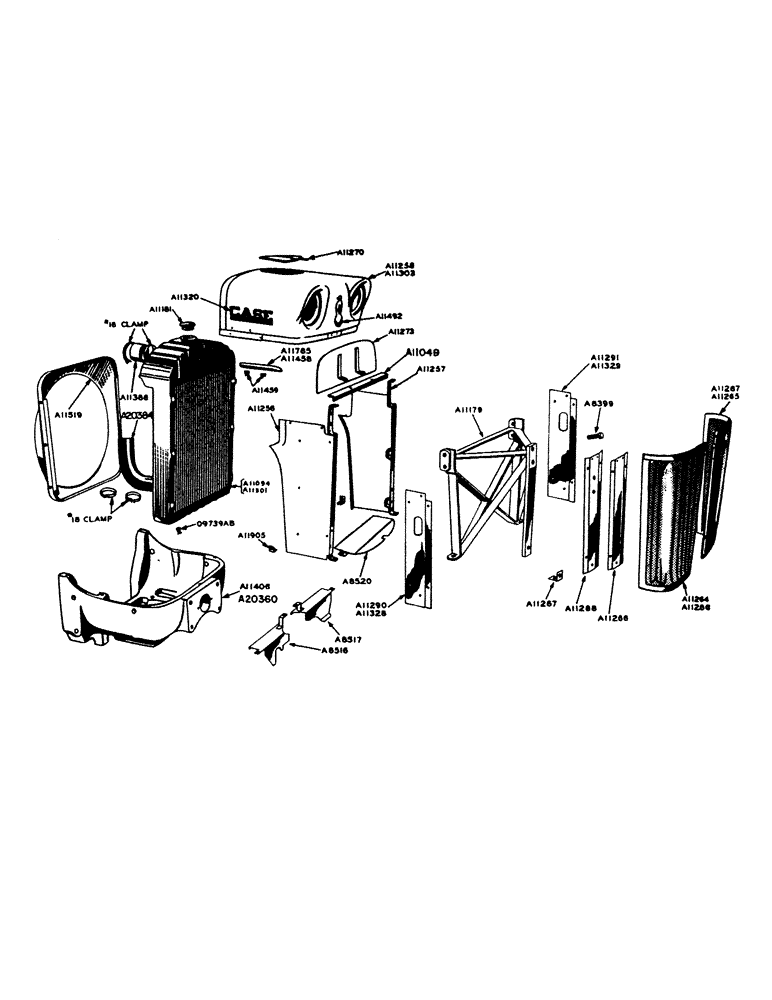

Запчасти Case IH 700 (092) - RADIATOR AND GRILLE (02) - ENGINE

A7915

SHIM,.0359" Thk

Cultivator support "A" frame (General purpose tractors) .0359" Thk

1шт.

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

radiator grill and "A" frame (general purpose tractors)

1шт.

A8516

BAFFLE, radiator, with clip, lower R.H. (for general purpose tractors)

1шт.

A8517

BAFFLE, radiator, with clip, lower L.H. (for general purpose tractors)

1шт.

A8520

PLATE, radiator baffle, lower, with clips (for std. 4 wheel tractor)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. hex bolt w/lockwasher

2шт.

A10259

CAP

radiator pressure, 4 lb. (SN8140001 and after) (see A11181)

1шт.

A11049

BRACE, top, radiator side members

1шт.

A11094

RADIATOR

short fillerneck (model 700) (prior to SN8140001) (see A20443)

1шт.

A11179M

FRAME, cultivator support (general purpose tractors) (machy. item)

1шт.

A11189

CAP, radiator, pressure, Serial Range: (prior-SN8140001)

1шт.

A11256

MEMBER, radiator side, R.H.

1шт.

A11257

MEMBER, radiator side, L.H.

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" N.F. hex bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/2" N.F. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/8" x 7/8" hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 Tinnerman speed grip nut, #C7988-1420

4шт.

A11258

CAP, radiator grill (std. 4 wheel tractors) (prior to SN8140001) (see A20450)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. truss hd. mach. screw (zinc plated)

4шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 Tinnerman speed grip nut (their #C7998-1420)

4шт.

A11264

GRILLE, radiator, R.H. (for std. 4 wheel tractor)

1шт.

A11265

GRILLE, radiator, L.H. (for std. 4 wheel tractor)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.C. truss hd. mach. screw (zinc plated)

8шт.

A11266

CENTER PIECE, radiator grill (for std. 4 wheel tractor)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. truss hd. mach. screw w/hex nut and lockwasher

3шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 Tinnerman speed grip nut (their #C7998-1420)

4шт.

A11267

BRACE, grill center piece lower

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt w/lockwasher

1шт.

A11270

DOOR

radiator grill cap, Serial Range: (prior-SN8140001)

1шт.

A11273

BAFFLE, radiator, upper

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.F. rhd. mach. screw

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. rhd. mach. screw w/hex nut

2шт.

NSS

NOT SOLD SEPARAT

1/4" #4014-20-00 Shakeproof ext.-int. lockwasher

4шт.

A11286

GRILLE, radiator, R.H. (general purpose and high clearance tractors)

1шт.

A11287

TUBE

GRILLE, radiator, L.H. (general purpose and high clearance tractors)

1шт.

A11288

CENTER PIECE, radiator grill (for general purpose tractor)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. truss hd. mach. screw w/hex nut and lockwasher (zinc plated)

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.C. truss hd. mach. screw (zinc plated)

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 Tinnerman speed grip nut (their #C7998-1420)

4шт.

A11290

MEMBER, radiator side, R.H. ext. (for general purpose tractor)

1шт.

A11291

MEMBER, radiator side, L.H. ext. (for general purpose tractor)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.C. truss hd. mach. screw (zinc plated)

6шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 Tinnerman speed grip nut (their #C7998-1420)

4шт.

A11303

CAP, radiator grill (general purpose and high clearance) (prior to SN8140001) (see A20452)

1шт.

A11319

X

CLIP, push on (medallion)

2шт.

A11319

X

CLIP, push on, CASE name plate, 3/16" dia. (Tinnerman #C-12005- 017)

4шт.

A11320

PLATE

name "CASE"

2шт.

A11328

DECAL

MEMBER, radiator side, R.H. ext. (for high clearance tractor)

1шт.

A11329

MEMBER, radiator side, L.H. ext. (for high clearance tractor)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" truss hd. mach. screw (zinc plated)

6шт.

A11386

X

HOSE, radiator inlet

1шт.

NSS

NOT SOLD SEPARAT

#16 HOSE CLAMP

2шт.

A11406

BRACKET, radiator (general purpose and high clearance tractors)

1шт.

A11458

MOLDING, trim, grill cap side (4 wheel tractor)

2шт.

A11459

BOLT

retainer (grill cap molding)

4шт.

NSS

NOT SOLD SEPARAT

#10-32 mach. screw nut w/ext.-int. Shakeproof lockwasher (zinc plated)

4шт.

A11492

X

MEDALLION, grill cap

1шт.

A11501

RADIATOR, short filler neck (model 800) (prior to SN8140001) (see A20445)

1шт.

A11519

SHROUD, radiator, 18" fan

1шт.

A11737

WASHER, spacer, radiator side member

2шт.

A11785

MOLDING, trim, grill cap side (general purpose and high clearance)

2шт.

A11905

CLIP, radiator side member rear support

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1/2" N.F. hex bolt

2шт.

A20279

COVER, radiator bracket, frt. (4 wheel tractors)

1шт.

NSS

NOT SOLD SEPARAT

3/8" 1" N.C. hex bolt w/lockwasher

2шт.

A20360

BRACKET, radiator and frt. axle (4 wheel tractors)

1шт.

A20384

RADIATOR HOSE,1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

- Radiator to Water Pump 1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

1шт.

NSS

NOT SOLD SEPARAT

#15 HOSE CLAMP

2шт.

A20443

RADIATOR

long filler neck (model 700) (SN8140001 and after) (see A11094)

1шт.

A20445

RADIATOR, long filler neck (model 800) (SN8140001 and after) (see A11501)

1шт.

A20450

CAP, radiator grill (std. 4 wheel tractors) (SN8140001 and after) (see A11258)

1шт.

A20452

CAP, grill (gen. purpose and high clearance) (SN8140001 and after) (see A11303)

1шт.

6471A

COVER, radiator bracket, frt. (general purpose)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex bolt w/lockwasher

2шт.

O9739AB

X

VALVE, radiator drain

1шт.

O6480HT

X

SPACER, radiator grill bolt (high clearance)

1шт.
