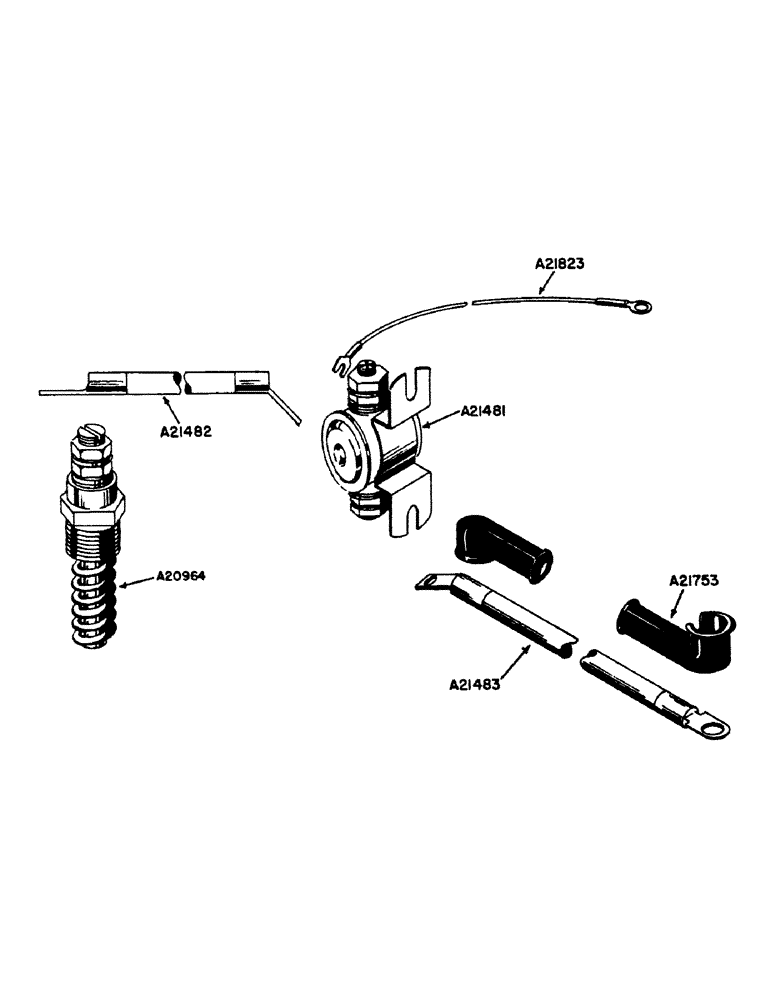

Запчасти Case IH 700 (091) - POWRCEL DIESEL, MANIFOLD HEATER (02) - ENGINE

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT, 1/4" x 5/8" N.F. hex (for A21481)

2шт.

25-114

NUT,1/4"-28, G5

HEX. NUT 1/4" N.F.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

195-18

WASHER,1/4"

PLAIN WASHER

2шт.

A20916

MANIFOLD GASKET

GASKET, heater

1шт.

A20964

HEATER ASSY.

HEATER, manifold

1шт.

A21481

SOLENOID

SWITCH, solenoid

1шт.

142341A1

PACKAGE

Use with solenoid switch

1шт.

A21482

CABLE

, Serial Range: heater-solenoid

1шт.

A21483

CABLE

solenoid to starting motor

1шт.

A21753

CAP

NIPPLE, cable (both ends of A21483)

2шт.

A21823

WIRE, starting switch to heater solenoid

1шт.

A182032

HEATER ASSY.

BLOCK, for gas engine

1шт.
