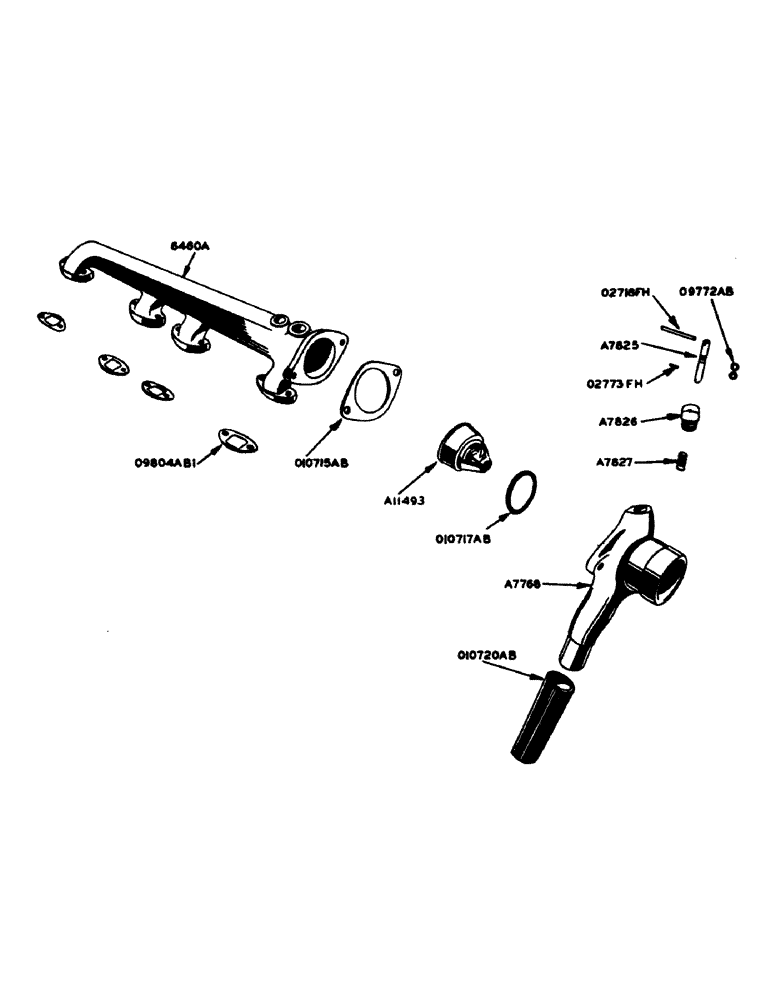

Запчасти Case IH 700 (090) - THERMOSTAT AND WATER MANIFOLD (02) - ENGINE

A7768

HOUSING, thermostat (with bleed valve hole) (see A20374)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher

2шт.

A7825

STEM, thermostat bleed valve

1шт.

A7826

SLEEVE, thermostat bleed valve stem

1шт.

A7827

SPRING

thermostat bleed valve

1шт.

A11493

THERMOSTAT

187 deg. - 202 deg. (includes 010717AB gasket)

1шт.

A20374

HOUSING

thermostat (less bleed valve hole) (see A7768)

1шт.

A21031

MANIFOLD

water (can use 6460A and 3/8" sq. hd. pipe plug)

1шт.

6460A

MANIFOLD, water (can use A21031)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/8" N.C. hex bolt w/lockwasher

8шт.

NSS

NOT SOLD SEPARAT

3/8" sq. hd. pipe plug

1шт.

O9772AB

X

"O" RING, thermostat bleed valve

2шт.

A27905

GASKET

water manifold (Replaces O9894AB1, O9804AB1)

4шт.

O10715AB

X

GASKET, thermostat housing

1шт.

O10717AB

X

GASKET, thermostat

1шт.

O10720AB

X

HOSE, water by-pass

1шт.

NSS

NOT SOLD SEPARAT

NO. 9 HOSE CLAMP (1-5/8" O.D. hose)

2шт.

O2718FH

X

ROLL PIN, (5/32" x 1-3/4") for A7825 stem

1шт.

O2773FH

X

ROLL PIN, (3/32" x 1/2"), for A7825 stem

1шт.
