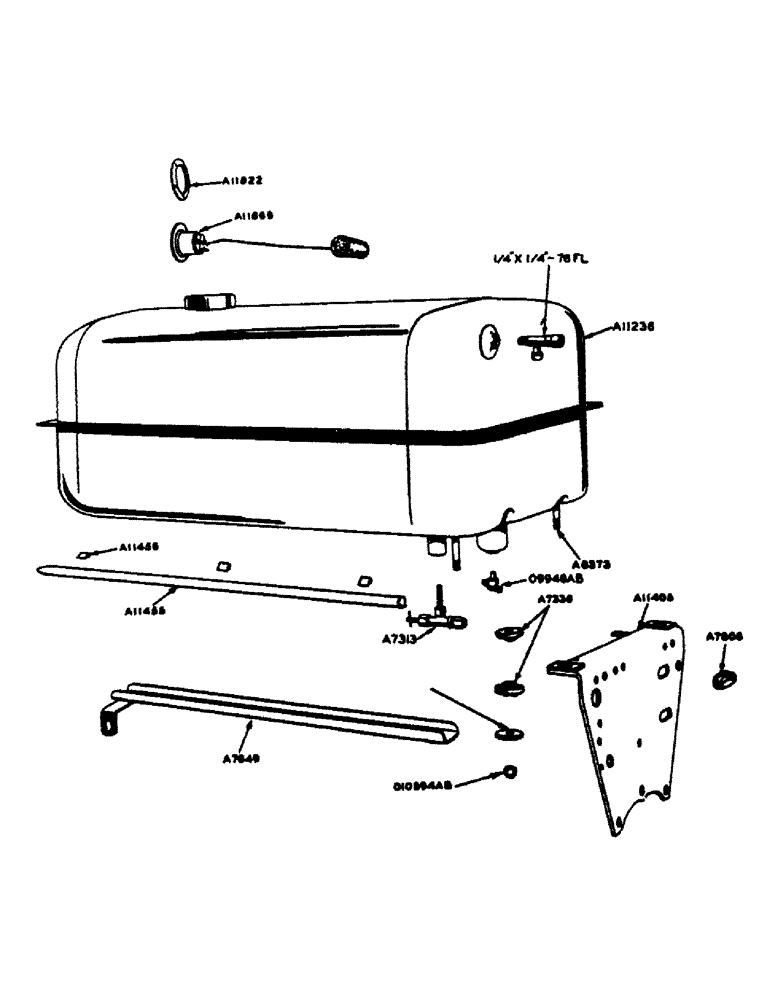

Запчасти Case IH 700 (070) - POWRCEL DIESEL ENGINE, FUEL TANK (02) - ENGINE

A7313

VALVE

needle, fuel tank

1шт.

A7336

CUSHION

fuel tank supports (rubber)

6шт.

A7649

CONDUIT, rear

1шт.

A7808

GROMMET

fuel tube, on fuel tank front support

1шт.

A8373

STUD

fuel tank mounting

3шт.

A11236

X

TANK, fuel, Serial Range: (prior-SN8140001)

1шт.

NSS

NOT SOLD SEPARAT

1/4" tube x 1/4" PT #76FL imperial flex. tee

1шт.

NSS

NOT SOLD SEPARAT

5/16" tube x 1/4" PT #68FL imperial flex. connector

1шт.

A11393

SUPPORT, steering column and fuel tank

1шт.

A11405

SUPPORT, fuel tank, front

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

3шт.

A11455

MOLDING

trim, side of fuel tank

2шт.

A11456

LOCK PIN

CLIP, fuel tank molding

6шт.

A11822

GASKET

fuel gauge sender

1шт.

A11869

X

SENDER, fuel gauge

1шт.

NSS

NOT SOLD SEPARAT

#10 - 32 x 7/16" rhd. mach. screw (zinc plated)

4шт.

NSS

NOT SOLD SEPARAT

#10 lockwasher

4шт.

A20411

CONDUIT, R.H., assembly (SN8140001 and after)

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 N.C. hex nut w/lockwasher

2шт.

A20418

TANK

fuel (SN8140001 and after)

1шт.

NSS

NOT SOLD SEPARAT

CONNECTOR, 5/16" tube x 1/4" P.T. imperial flex. #68FL

1шт.

O9949AB

X

VALVE, water drain

1шт.

O10594AB

X

STOP NUT, eleastic, fuel tank mounting stud (3/8" N.F. thrd.)

3шт.

O1558CH

X

WASHER, fuel tank mounting stud

3шт.
