Запчасти Case IH 700 (068) - POWRCEL DIESEL ENGINE, FILTERS & TUBES FOR MULTIPLUNGER FUEL PUMP (02) - ENGINE

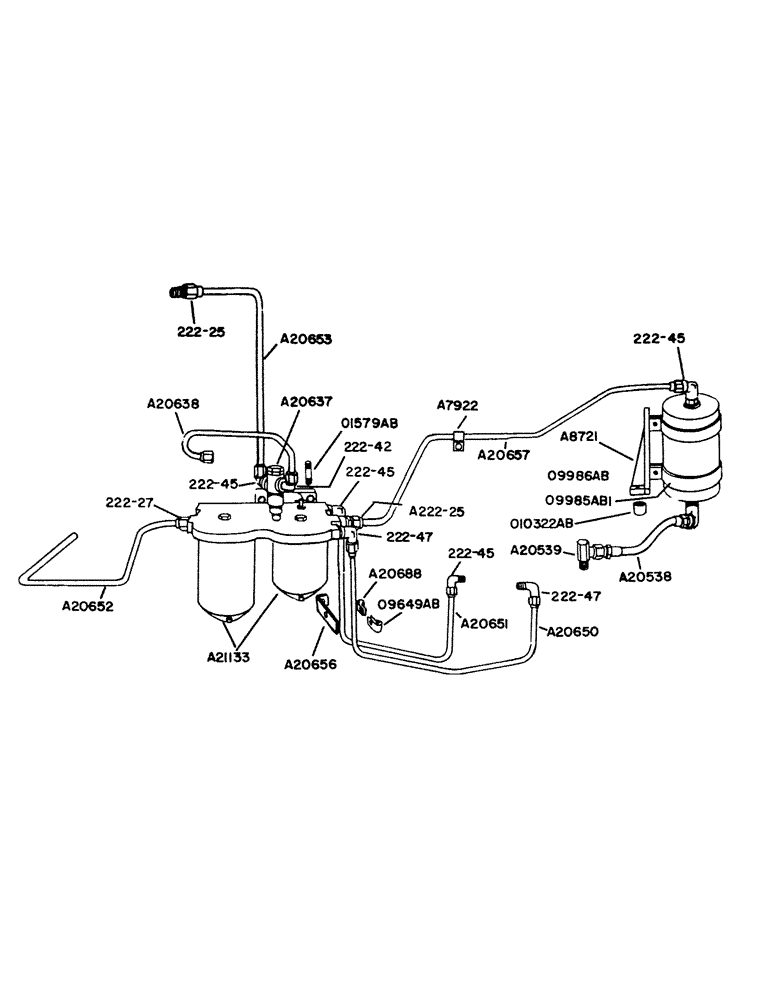

Схема запчастей Case IH 700 - (068) - POWRCEL DIESEL ENGINE, FILTERS & TUBES FOR MULTIPLUNGER FUEL PUMP (02) - ENGINE

Артикул

Название

Примечание

Количество

A7922

CLIP

for A20657 tube, first and second stage

1шт.

A20637

LOCK VALVE

VALVE, relief, first and second stage

1шт.

A20638

TUBE, leak-off from #4 nozzle to relief valve, first and second stage

1шт.

NSS

NOT SOLD SEPARAT

222-42 flex. elbow (1/4" tube x 1/8" P.T.) (tube to relief valve), first and second stage

1шт.

A20650

TUBE

first stage filter to fuel pump, and second

1шт.

NSS

NOT SOLD SEPARAT

222-47 flex. elbow (3/8" tube x 1/4" P.T.), first and second stage

2шт.

A20651

TUBE

fuel pump to second stage filter, and first

1шт.

NSS

NOT SOLD SEPARAT

222-45 flex. elbow (5/16" tube x 1/4" P.T.), first and second stage

2шт.

A20652

TUBE, fuel tank to first stage filter, and second

1шт.

NSS

NOT SOLD SEPARAT

222-27 flex. conn. (3/8" tube x 1/4" P.T.) tube to filter, first and second stage

1шт.

A20653

TUBE, relief valve to tank, first and second stage

1шт.

NSS

NOT SOLD SEPARAT

222-45 flex. elbow (5/16" tube x 1/4" P.T.) tube to relief valve, first and second stage

1шт.

NSS

NOT SOLD SEPARAT

222-25 flex. conn. (5/16" tube x 1/4" P.T.) tube to tank, first and second stage

1шт.

A20656

BRACKET, first and second stage filter tube clip

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex bolt w/lockwasher, first and second stage

1шт.

A20657

TUBE, second stage filter to final stage filter, and first

1шт.

NSS

NOT SOLD SEPARAT

222-25 flex. conn. (5/16" tube x 1/4" P.T.) (tube to second stage filter), and first

1шт.

NSS

NOT SOLD SEPARAT

222-45 flex. elbow (5/16" tube x 1/4" P.T.) (tube to third stage filter), first and second stage

1шт.

A20688

CLIP

for A20650 tube, first and second stage

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. rhd. mach. screw w/hex. nut and lockwasher, first and second stage

1шт.

A21133

FILTER

fuel, first and second stage (assembly)

1шт.

A1579AB

STUD, filter head to cylinder block, first and second stage

2шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex nut w/lockwasher, first and second stage

2шт.

O9649AB

CLIP, for A20651 tube, first and second stage

1шт.

A8721

BRACKET, final stage filter, fuel, and tubes for multiplunger fuel pump

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" N.C. hex bolt w/lockwasher, final stage, fuel filters and tubes for multiplunger fuel pump

2шт.

A20538

FUEL HOSE,0.38" ID x 8.50"

Final stage filter to fuel pump and tubes for multiplunger 0.38" ID x 8.50"

1шт.

A20539

FITTING

UNION, 90 deg. adapter, A20538 hose to fuel pump, final stage, filters and tubes for multiplunger

1шт.

O9985AB1

FILTER, fuel, final stage, and tubes for multiplunger fuel pump

1шт.

A9986AB

CLAMP, final stage filter, fuel, and tubes for multiplunger fuel pump

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" N.C. hex bolt w/plain washer, final stage, fuel filters and tubes for multiplunger fuel pump

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex bolt w/hex nut, final stage, fuel filters and tubes for multiplunger fuel pump

3шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" N.C. rhd. mach. screw w/hex nut, final stage, fuel filters and tubes for multiplunger fuel pump

2шт.

O10322AB

SPACER, final stage filter bracket, fuel, and tubes for multiplunger fuel pump

2шт.

Выбрано товаров: 34
