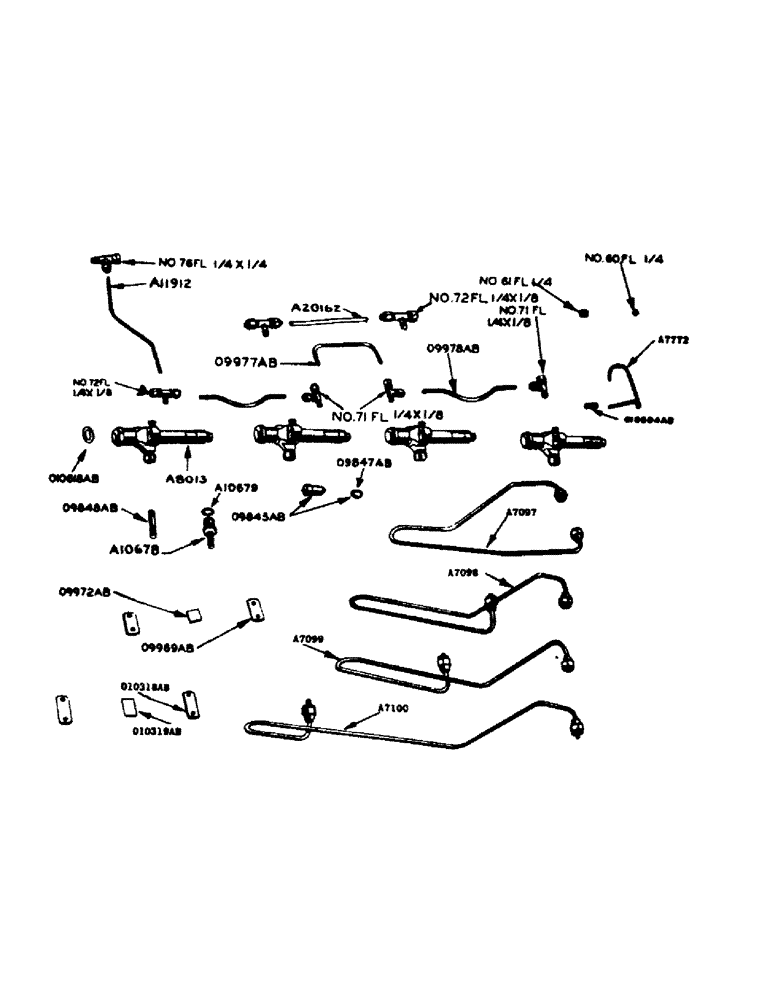

Запчасти Case IH 700 (061) - POWRCEL DIESEL ENGINE, FUEL INJECTOR NOZZLE AND TUBES - SINGLE PLUNGER PUMP (02) - ENGINE

A7097

TUBE

fuel injector, with sleeves and nuts, for no. 1 cylinder

1шт.

A7098

LOWER LINK

TUBE, fuel injector, with sleeves and nuts, for no. 2 cylinder

1шт.

A7099

PIN

TUBE, fuel injector, with sleeves and nuts, for no. 3 cylinder

1шт.

A7100

BUSHING

TUBE, fuel injector, with sleeves and nuts, for no. 4 cylinder

1шт.

A7772

TUBE, leak-off, fuel pump to injector nozzle (1/4" tubing)

1шт.

A8013

NOZZLE INJECTION

NOZZLE, injector, with holder and gasket

4шт.

A10678

STUD

nozzle holder, large

4шт.

NSS

NOT SOLD SEPARAT

3/8" light N.F. hex nut

4шт.

A10679

GASKET

injector nozzle holder stud

4шт.

A11912

TUBE, leak-off to fuel tank

1шт.

NSS

NOT SOLD SEPARAT

1/4" TUBE x 1/4" P.T. Imperial flex. #76FL tee

1шт.

A20162

TUBE

injector leak-off, upper (1/4" tubing) (see 09977AB)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. TEE #72FL (1/4" tube x 1/8" P.T.)

2шт.

O9845AB

X

NOZZLE, injector, with gasket

4шт.

O9847AB

X

GASKET, injector nozzle holder

4шт.

O9848AB

X

STUD, nozzle holder, small

4шт.

NSS

NOT SOLD SEPARAT

3/8" hex nut, light, N.F. thrd.

4шт.

O9969AB

X

CLAMP, injector tube (clamps 3 tubes)

2шт.

NSS

NOT SOLD SEPARAT

No. 10 x 1" rhd. mach. screw w/N.C. hex. nut and lockwasher

2шт.

O9972AB

X

CUSHION, between 09969AB clamp and injector tubes

2шт.

O9977AB

TUBE, injector leak-off (see A20162)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. TEE #71FL (1/4" tube x 1/8" P.T.)

2шт.

O9978AB

X

TUBE, injector leak-off, lower (1/4" tubing)

2шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. TEE #71FL (1/4" tube x 1/8" P.T.) at front nozzle

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. TEE #72FL (1/4" tube x 1/8" P.T.) at rear nozzle

1шт.

O10318AB

X

CLAMP, injector tube (clamps 4 tubes)

2шт.

NSS

NOT SOLD SEPARAT

No. 10 x 1" rhd. mach. screw with N.C. hex. nut and lockwasher

2шт.

O10319AB

X

CUSHION, between 010318AB clamp and injector tubes

2шт.

O10604AB

X

CONNECTION, fuel pump leak-off check valve

1шт.

O10618AB

X

GASKET, for injector pressure adjusting screw protective cap

4шт.

NSS

NOT SOLD SEPARAT

IMPERIAL BRASS no. 60FL sleeve for 1/4" tubing, for A11912, A20162, 09977AB and 09978AB tubes, and nuts, fuel

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL BRASS no. 61FL nut for 1/4" tubing, for A11912, A20162, 09977AB, 09978AB tubes, and sleeves, fuel

1шт.
