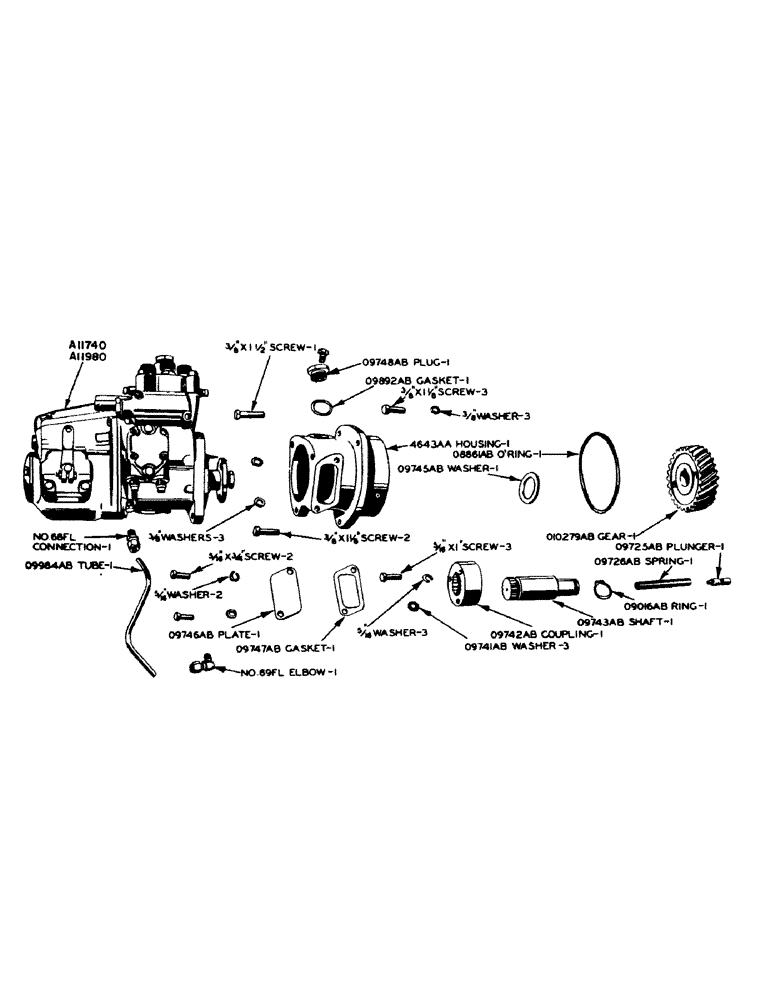

Запчасти Case IH 700 (060) - POWRCEL DIESEL ENGINE, SINGLE PLUNGER FUEL PUMP (02) - ENGINE

A11740

PUMP, fuel (American Bosch no. PSB-4A-75D-3594B4) (model 700)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher (fastens, Serial Range: pump-housing)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" N.F. hex bolt w/lockwasher (fastens, Serial Range: pump-housing)

1шт.

A11980

PUMP, fuel (American Bosch no. PSB-4A-75D-3594B5) (model 800)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher (fastens, Serial Range: pump-housing)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" N.F. hex bolt w/lockwasher (fastens, Serial Range: pump-housing)

1шт.

6314A

HOUSING (use 4643AA)

1шт.

4643AA

HOUSING, fuel pump drive shaft, with 2 - 09744AB bushings

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt w/lockwasher (fastens housing to cyl. block)

3шт.

O8861AB

X

"O" RING, fuel pump drive shaft housing

1шт.

O9016AB

X

SNAP RING, fuel pump drive shaft

1шт.

O9725AB

X

PLUNGER, fuel pump drive shaft thrust

1шт.

O9726AB

X

SPRING, fuel pump drive shaft thrust plunger

1шт.

O9741AB

WASHER, serrated, fuel pump coupling

3шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.F. hex bolt w/lockwasher

3шт.

O9742AB

COUPLING, fuel pump drive

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.F. hex bolt w/lockwasher

3шт.

O9743AB

SHAFT AND PINION, fuel pump drive

1шт.

O9745AB

X

WASHER, thrust, fuel pump drive shaft

1шт.

O9746AB

PLATE, fuel pump drive shaft housing

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex bolt w/lockwasher

2шт.

O9747AB

GASKET

fuel pump drive shaft housing plate

1шт.

O9748AB

PLUG, fuel pump drive shaft housing

1шт.

O9892AB

STUD

GASKET, fuel pump drive shaft housing plug

1шт.

O9984AB

TUBE, fuel pump lube oil, cylinder block to fuel pump (1/4" tubing)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. CONNECTOR, no. 68FL (1/4" tube size x 1/8" pipe thrd.) (connects tube to fuel pump)

1шт.

NSS

NOT SOLD SEPARAT

IMPERIAL FLEX. ELBOW, no. 69FL (1/4" tube size x 1/8" pipe thrd.) (connects tube with cylinder block)

1шт.

O10279AB

X

GEAR, fuel pump drive

1шт.

NSS

NOT SOLD SEPARAT

No. 141 Woodruff key

1шт.
