Запчасти Case IH 700 (051) - POWRCEL DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

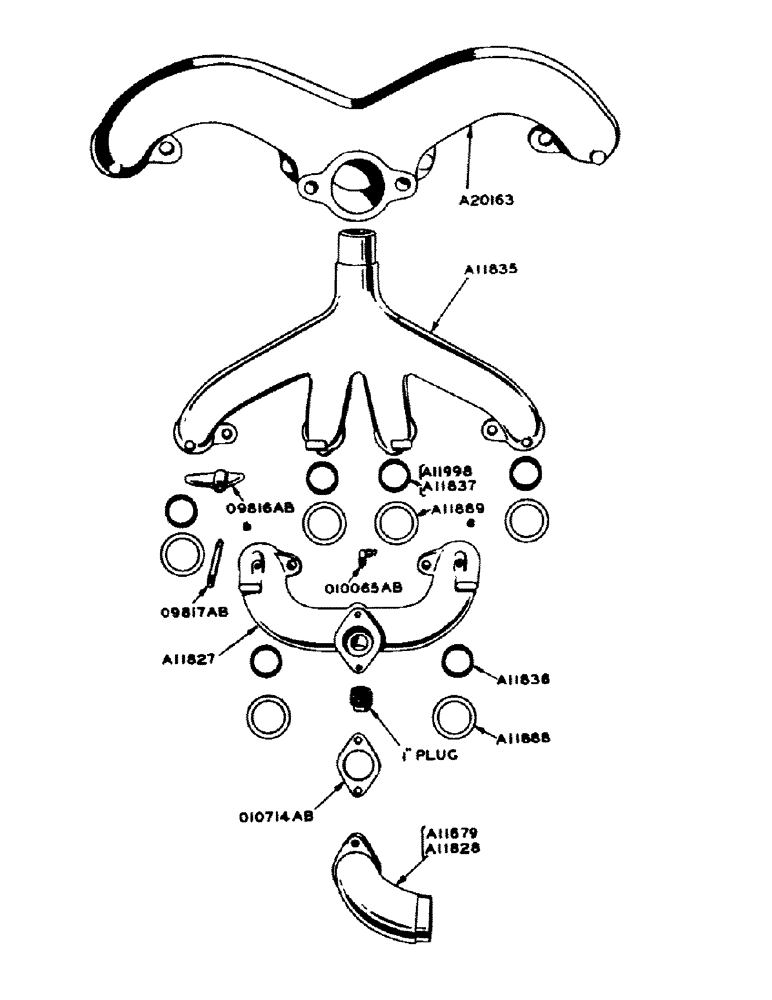

Схема запчастей Case IH 700 - (051) - POWRCEL DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

Артикул

Название

Примечание

Количество

A11679

ELBOW, intake manifold (for orchard tractors only) (see A11828)

1шт.

A11827

MANIFOLD, intake

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt with lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/8" sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

1" sq. hd. pipe plug

1шт.

A11828

ELBOW, intake manifold (for all but orchard tractors) (see A11679)

1шт.

A11835

MANIFOLD, exhaust (for all but orchard tractors) (see A20163)

1шт.

A11836

FERRULE

intake manifold

2шт.

A11837

FERRULE

exhaust manifold (for all but orchard tractors) (see A11998)

4шт.

A11888

MANIFOLD GASKET

intake manifold

2шт.

A11889

GASKET

exhaust manifold

4шт.

A11998

FERRULE

exhaust manifold (for orchard tractors only) (see A11837)

4шт.

A20163

MANIFOLD, exhaust (orchard tractors only) (see A11835)

1шт.

O9816AB

CLAMP, intake and exhaust manifold

4шт.

O9817AB

X

STUD, intake and exhaust manifold

4шт.

NSS

NOT SOLD SEPARAT

7/16" N.F. hex nut with plain washer

4шт.

O10714AB

X

GASKET, intake manifold elbow

1шт.

Выбрано товаров: 17
