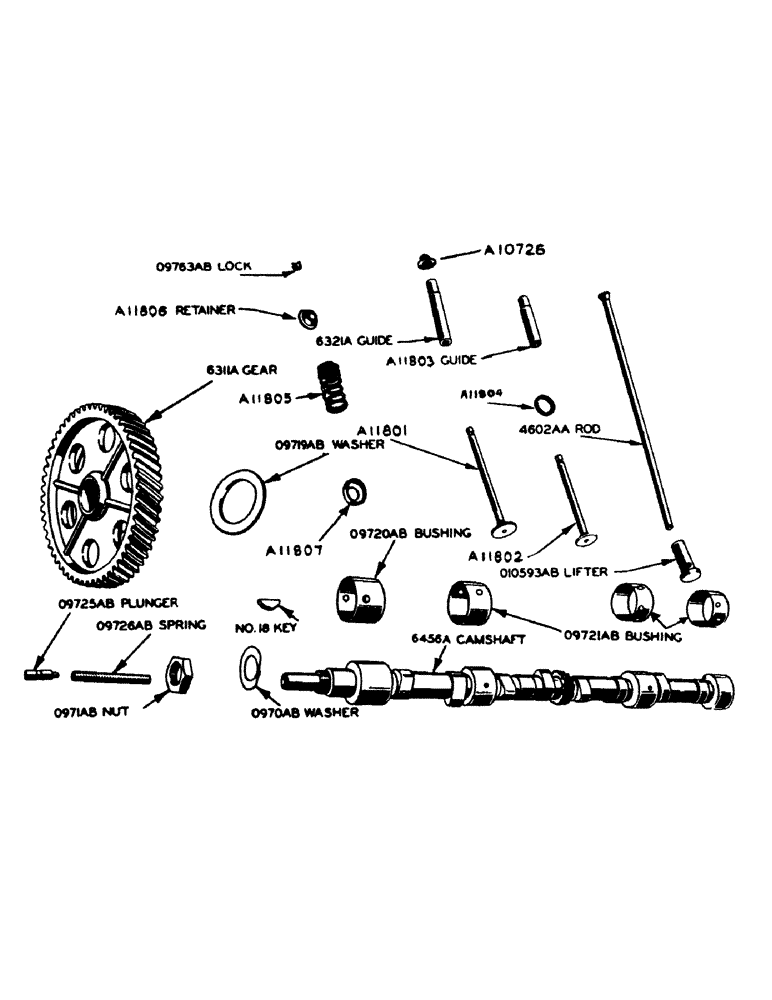

Запчасти Case IH 700 (048) - POWRCEL DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

A7205

LIFTER, push rod (.010 oversize) (see 010593AB) (for taper end push rod)

8шт.

A10726

SEAL

SHIELD, rubber, intake valve stem oil

4шт.

A11801

VALVE

inlet

4шт.

A11802

VALVE, exhaust

4шт.

A11803

GUIDE

exhaust valve

4шт.

A11804

INSERT, exhaust valve seat

4шт.

A11805

SPRING, inlet and exhaust valve

8шт.

A11806

RETAINER, valve spring

8шт.

A11807

SEAT, inlet and exhaust valve spring

8шт.

A21060

ROD

push (round end) (use w/A21105 screw and A21061 lifter)

8шт.

A21061

LIFTER, push rod (std. size) (for round end push rod) (use w/A21105 screw and A21060 rod)

8шт.

6311A

X

GEAR, camshaft

1шт.

NSS

NOT SOLD SEPARAT

#18 WOODRUFF KEY

1шт.

6321A

GUIDE, inlet valve

4шт.

6456A

CAMSHAFT

1шт.

A24361

PLUG

1шт.

4602AA

ROD

push (taper end) (see A21060)

8шт.

O970AB

X

LOCKWASHER, camshaft nut

1шт.

O971AB

X

NUT, camshaft (1-1/8" N.C. hex)

1шт.

O9719AB

WASHER, camshaft thrust

1шт.

O9720AB

BUSHING, camshaft, front

1шт.

For replacements, see paper copy of sub book.

1шт.

O9721AB

BUSHING, camshaft, second, third and rear

3шт.

O9725AB

X

PLUNGER, camshaft thrust

1шт.

O9726AB

X

SPRING, camshaft thrust plunger

1шт.

O9763AB

LOCK, valve spring retainer (2 per valve)

16шт.

O10593AB

HYDRAULIC LIFT

LIFTER, push rod (standard size) (see A7205) (for taper end push rod)

8шт.
