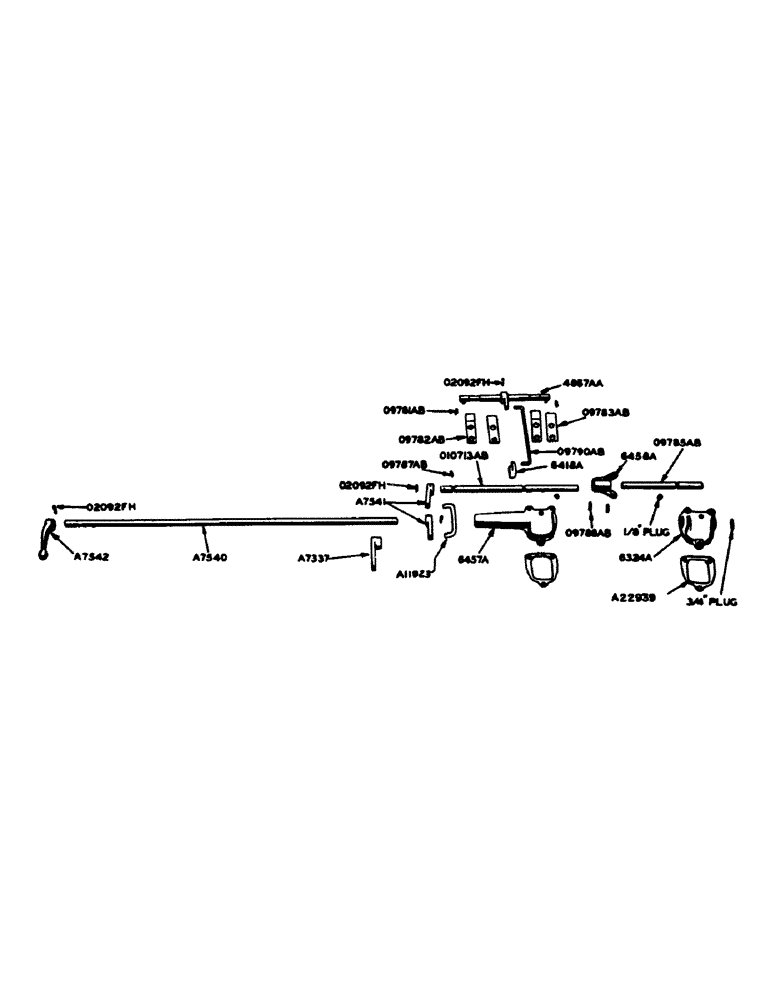

Запчасти Case IH 700 (046) - POWRCEL DIESEL ENGINE, DECOMPRESSOR (02) - ENGINE

A7337

BRACKET, decompressor rod

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" N.F. hex bolt w/hex. nut and lockwasher

2шт.

A7540

SHAFT, decompressor hand lever

1шт.

A7541

LEVER, decompressor control shaft

2шт.

A7542

LEVER, hand, decompressor control

1шт.

A11823

LINK, decompressor control

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin

2шт.

A22939

GASKET

decompressor control lever housing

2шт.

6324A

HOUSING, decompressor intermediate control lever

1шт.

NSS

NOT SOLD SEPARAT

3/4" welch plug

1шт.

NSS

NOT SOLD SEPARAT

1/8" slotted hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

5/16" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-3/4" N.C. hex bolt w/lockwasher

2шт.

6418A

LEVER, decompressor control

4шт.

6457A

HOUSING, decompressor intermediate control lever, rear

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-3/4" N.C. hex bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/8" slotted hd. pipe plug

1шт.

6458A

COUPLING, decompressor intermediate control shaft stop

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" N.C. sq. hd. oval point set screw w/hex. nut

2шт.

4867AA

SHAFT, decompressor, with lever and trip pin

2шт.

O9781AB

PIN, decompressor trip

4шт.

O9782AB

BRACKET, decompressor shaft, top

4шт.

NSS

NOT SOLD SEPARAT

7/16" x 4" N.C. hex bolt w/lockwasher

4шт.

O9783AB

BRACKET, decompressor shaft, bottom

4шт.

O9785AB

SHAFT, decompressor intermediate control, short

1шт.

O9787AB

X

"O" RING, decompressor intermediate control shafts

3шт.

O9788AB

X

SET SCREW, decompressor control shaft

2шт.

O9790AB

LINK, decompressor control, upper

2шт.

NSS

NOT SOLD SEPARAT

1/16" x 5/8" cotter pin

4шт.

O10713AB

SHAFT, decompressor intermediate control, rear

1шт.

O2092FH

X

ROLL PIN (3/16" x 1"), for 6418A, A7541 and A7542 levers

5шт.
