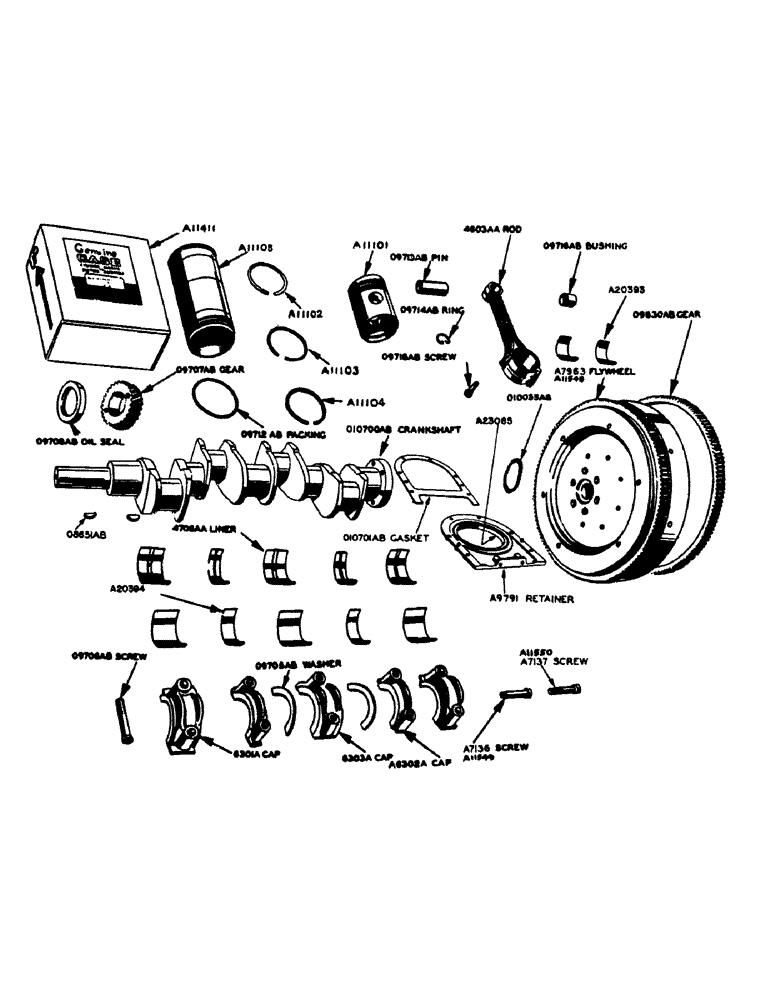

Запчасти Case IH 700 (044) - POWRCEL DIESEL, PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

A7173

X

LINERS, connecting rod bearing, top and bottom half (.002" undersize)

4шт.

A7175

X

LINERS, connecting rod bearing, top and bottom half (.010" undersize)

4шт.

A7177

SHIELD

LINERS, connecting rod bearing, top and bottom half (.020" undersize)

4шт.

A7179

X

LINERS, connecting rod bearing, top and bottom half (.030" undersize)

4шт.

A11101

PISTON

4шт.

A11102

RING

piston, top

4шт.

A11103

RING

piston, second and third

8шт.

A11104

RING

piston, oil

4шт.

A11105

X

SLEEVE, cylinder

4шт.

A11411

Set of (2) cylinder sleeves, pistons, rings and piston pins

2шт.

A11413

PACKAGE, RINGS

RINGS, piston, set of (16) perfect circle 2-in-1 chrome

1шт.

A20393

LINING

LINER, connecting rod bearing, top and bottom half (standard size)

4шт.

4603AA

X

LINER, connecting rod bearing, top and bottom half (standard size)

4шт.

O9712AB

X

"O" RING, cylinder sleeve

8шт.

O9713AB

PIN, piston

4шт.

O9714AB

X

RING, piston pin retainer

8шт.

O9716AB

BUSHING, connecting rod

8шт.

O9718AB

X

CAP SCREW, connecting rod

8шт.

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT, dowel, flywheel (model 700) (see A11549), crankshaft

2шт.

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT, flywheel (model 700) (see A11550), crankshaft

4шт.

A7151

SUPPORT

FLYWHEEL (use A7963), crankshaft

1шт.

A7182

KIT

LINERS, crankshaft bearing (wide-upper and lower) (.002" undersize)

3шт.

A7185

CHAIN

LINERS, crankshaft bearing (narrow-upper and lower) (.002" undersize)

2шт.

A7188

BEARING LINER

LINERS, crankshaft bearing (wide-upper and lower) (.010" undersize)

3шт.

A7191

SPINDLE

LINERS, crankshaft bearing (narrow-upper and lower) (.010" undersize)

2шт.

A7194

KIT

LINERS, crankshaft bearing (wide-upper and lower) (.020" undersize)

3шт.

A7197

LINERS, crankshaft bearing (narrow-upper and lower) (.020" undersize)

2шт.

A7200

KIT

LINERS, crankshaft bearing (wide-upper and lower) (.030" undersize)

3шт.

A7203

LINERS, crankshaft bearing (narrow-upper and lower) (.030" undersize)

2шт.

A7204

WASHER

crankshaft thrust (.006" oversize) (see 09705AB)

2шт.

A7963

FLYWHEEL, with ring gear (model 700) (see A11548), crankshaft

1шт.

A9791

RETAINER

crankshaft rear oil seal, with dowel pins

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher, crankshaft

6шт.

A11547

FLYWHEEL, (model 800) (use A11548), crankshaft

1шт.

A11548

Flywheel with ring gear (model 800) (see A7963), crankshaft

1шт.

A11549

STEP BOLT

BOLT, dowel, flywheel (model 800) (see A7136), crankshaft

2шт.

A11550

BOLT (SPREADER)

BOLT, flywheel (model 800) (see A7137), crankshaft

4шт.

A20394

LINING

LINER, crankshaft bearing (narrow-upper and lower) (standard size)

2шт.

A23085

OIL SEAL

OIL SEAL, crankshaft, rear

1шт.

6301A

CAP, crankshaft bearing, wide

2шт.

A6302A

X

CAP, crankshaft bearing, narrow

2шт.

6303A

CAP, crankshaft thrust bearing

1шт.

4706AA

X

LINER, crankshaft bearing (wide-upper and lower) (standard size)

3шт.

O8651AB

X

KEY, woodruff, for crankshaft

2шт.

O9705AB

X

WASHER, crankshaft thrust (standard size) (see A7204)

2шт.

O9706AB

SCREW, crankshaft bearing cap

10шт.

O9797AB

GASKET

GEAR, crankshaft

1шт.

O9708AB

X

OIL SEAL, crankshaft, front

1шт.

O9710AB

PIN, dowel, for A9791 retainer, crankshaft

2шт.

O9830AB

X

RING GEAR, flywheel (137 teeth), crankshaft

1шт.

O10035AB

X

"O" RING, flywheel, crankshaft

1шт.

O10700AB

CRANKSHAFT

1шт.

O10701AB

X

GASKET, crankshaft rear oil seal retainer

1шт.

A20151

GASKET

1шт.

Gasket kit - valve grind, includes the following (4) A7669, ring -rubber, for cylinder head gasket, (2) A9235, gasket - cylinder head, (2) A11888, gasket - intake manifold, (4) A11889, gasket - exhaust manifold, (2) 08569AB, o-ring-cylinder head oil passage, (2) 09772AB, o-ring - rocker arm shaft tube, (2) AA22939, gasket - decomprossor lever housing, (4) 09804AB1, gasket - water manifold, (2) 09959AB, gasket - cylinder head cover, (1) 010714AB gasket - intake manifold elbow, (1) 010715AB, gasket - thermost

1шт.
