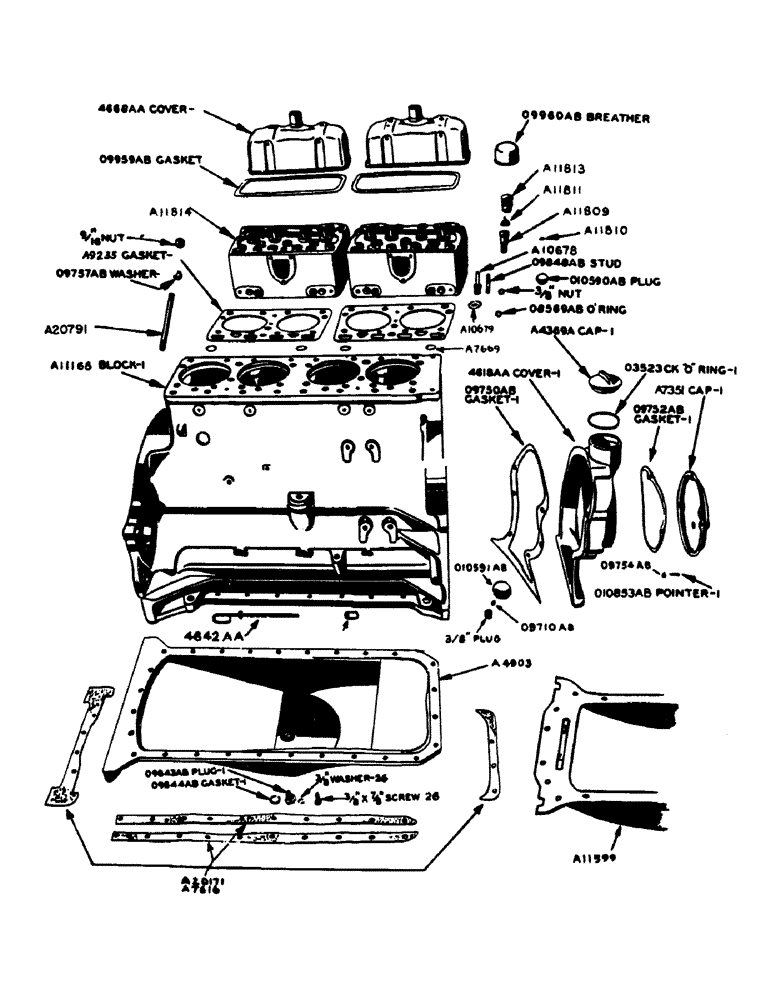

Запчасти Case IH 700 (042) - POWRCEL DIESEL ENG., CYL. HEAD & CYL. BLOCK, CYL. HEAD, POWRCEL, CYL. BLOCK & OIL PAN (02) - ENGINE

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

(for A7532) Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

A7509

PLUG

WELCH PLUG, 1-3/8", for cylinder block (stainless steel)

1шт.

A7532

CONDUIT, fastens to cylinder block, for wires

1шт.

A7616

GASKET KIT

GASKETS, set of oil pan (model 700)

1шт.

A7669

RING

rubber, for A9235 cylinder head gasket

4шт.

A9235

CYLINDER HEAD GASKET

cylinder head

2шт.

A10678

STUD

nozzle holder, large

4шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex nut

4шт.

A10679

GASKET

nozzle holder (A10678)

4шт.

A11112

BLOCK, cylinder (use A11168)

4шт.

A11168

BLOCK, cylinder, with bearing caps, camshaft bushings and plugs (see below)

1шт.

41-38

PLUG

Welch, 2-3/8"

1шт.

NSS

NOT SOLD SEPARAT

3/8" CTSK. headless pipe plug

4шт.

NSS

NOT SOLD SEPARAT

1" CTSK. headless pipe plug

1шт.

NSS

NOT SOLD SEPARAT

2-3/8" welch plug, stainless steel

1шт.

A11195

PLUG

adapter, techometer drive

1шт.

A11599

OIL PAN AND BAFFLE PLATE (model 800)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 7/8" N.C. hex bolt w/lockwasher

20шт.

A11800

HEAD, cylinder (use A11814)

1шт.

A11809

X

BODY, powrcel

4шт.

A11810

PIN,3.19mm OD x 6.99mm L

locating, powrcel body

4шт.

A11811

CAP, powrcel

4шт.

A11812

CLAMP

powrcel

4шт.

A11813

PLUG

SCREW, powrcel clamp

4шт.

A11814

NO LONGER SERVICED

HEAD, cylinder, with valve guides and inserts

2шт.

A20171

GASKET

S, set of oil pan and converter seal plate (model 800)

1шт.

A20791

SOCKET, lube oil level gauge

1шт.

A21058

BOLT

cylinder head

18шт.

NSS

NOT SOLD SEPARAT

9/16" N.F. hex nut

18шт.

A22493

BLOCK, stripped engine (consists of cylinder block, pistons, sleeves, rings, connecting rods, crankshaft and bearings. Does not include camshaft, valve lifters, cylinder heads, valve mechanism, etc.)

1шт.

4642AA

X

GAUGE, lube oil level, with felt washer

1шт.

4668AA

COVER, cylinder head

2шт.

4903AA

PAN, oil (model 700)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 7/8" N.C. hex bolt w/lockwasher

26шт.

O8569AB

X

"O" RING, in cylinder head gasket for oil passage

2шт.

O9738AB

WASHER, felt, lube oil level gauge

1шт.

O9757AB

X

WASHER, cylinder head stud

18шт.

O9843AB

X

PLUG, drain, oil pan magnetic

1шт.

O9844AB

X

GASKET, oil pan drain plug

1шт.

O9848AB

X

STUD, nozzle holder, small

4шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex nut

4шт.

O9959AB

X

GASKET, cylinder head cover

2шт.

O9960AB

X

BREATHER, cylinder head cover

2шт.

O10590AB

X

WELCH PLUG, 1-5/8" cylinder head (stainless steel)

4шт.

O10591AB

X

WELCH PLUG, 1-13/16" cylinder block (stainless steel)

1шт.

A7351

CAP, timing gear cover, with thrust button

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt with lockwasher, timing gear cover

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher, timing gear cover

3шт.

A4369A

CAP, oil filler, timing gear cover

1шт.

6316A

COVER, timing gear (use 4618AA)

1шт.

6469A

CAP, timing gear (use A7351), cover

1шт.

4618AA

COVER, timing gear, with 09708AB oil seal, dowel pin and thrust button

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. hex bolt with lockwasher, timing gear cover

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" N.C. hex bolt with lockwasher, timing gear cover

8шт.

O9710AB

PIN, dowel, timing gear cover

2шт.

O9750AB

X

GASKET, timing gear cover

1шт.

O9752AB

X

GASKET, timing gear cover cap

1шт.

O9754AB

BUTTON, thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER, timing, gear cover

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.C. hex bolt, timing gear cover

2шт.

NSS

NOT SOLD SEPARAT

1/4" Shakeproof ext.-int. tooth lockwasher #4014-20, timing gear cover

2шт.

O3523CK

X

"O" RING, for A4369A oil filler cap, timing gear cover

1шт.

A40476

HEATER

BLOCK, timing gear cover

1шт.
