Запчасти Case IH 700 (040) - POWRDYNE GAS ENGINE, DISTRIBUTOR IGNITION AND TACHOMETER DRIVE (02) - ENGINE

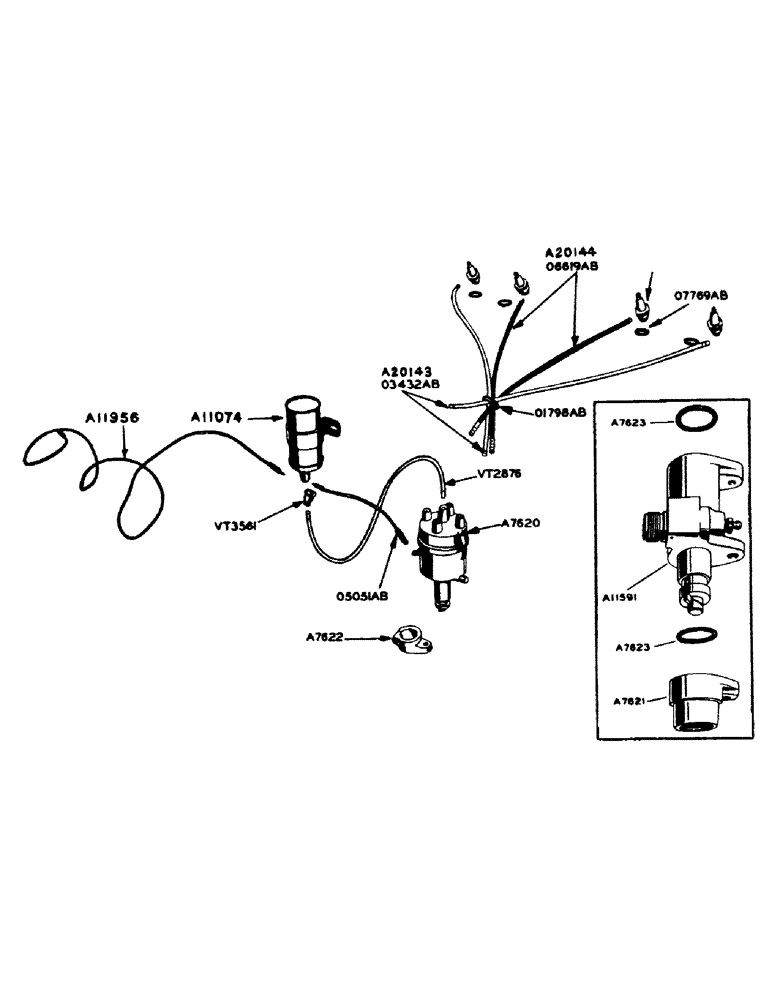

Схема запчастей Case IH 700 - (040) - POWRDYNE GAS ENGINE, DISTRIBUTOR IGNITION AND TACHOMETER DRIVE (02) - ENGINE

Артикул

Название

Примечание

Количество

A7620

DISTRIBUTOR, (electric auto-lite no. IAD6003-1B) (can use A20639)

1шт.

A7621

INSERT, distributor support

1шт.

A7622

CLAMP, distributor

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" N.C. hex bolt w/lockwasher

1шт.

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING, tachometer

2шт.

A11074

COIL

ignition (12 volt)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" N.C. rhd. mach. screw

2шт.

NSS

NOT SOLD SEPARAT

5/16" Shakeproof external-internal lockwasher #4018-24

2шт.

A11591

DRIVE, tachometer, assembly

1шт.

A11956

WIRE, ignition switch to coil (prior to SN-8140001) (see A20471)

1шт.

A20143

ELECTRICAL WIRE

WIRE, spark plug, to no. 1 and no. 4 cylinders (15" long) (for distributor ignition)

2шт.

A20144

ELECTRICAL WIRE

WIRE, spark plug, to no. 2 and no. 3 cylinder (11" long) (for distributor ignition)

2шт.

A20471

WIRE, ignition switch to coil (SN8140001) and after (see A11956)

1шт.

A20639

DISTRIBUTOR (WICO no. X30169)

1шт.

G44840

SPARK PLUG

PLUG, spark, 18 mm, champion #8 commercial (includes gasket)

4шт.

O6019A

HANDLE, spark plug wrench

1шт.

O1798AB

RING, ignition cable

1шт.

O3432AB

X

WIRE, spark plug, to no. 1 and no. 4 cylinders (18" long) (for magneto ignition)

2шт.

A5051AB

WIRE, coil to distributor (9" long), (can use 06616AB)

1шт.

O6168AB

CLIP, ignition switch to coil wire

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" N.C. rhd. mach. screw w/lockwasher

1шт.

O6616AB

WIRE, coil to distributor (11") (can use 05051AB)

1шт.

O6619AB

ELECTRICAL WIRE

WIRE, spark plug, to no. 2 and no. 3 cylinders (14" long) (for magneto ignition)

2шт.

O7421AB

WRENCH, spark plug

1шт.

O7769AB

X

GASKET, spark plug

4шт.

VT2876

X

WIRE, ignition, distributor to coil (12" long)

1шт.

VT3561

X

NIPPLE, distributor, coil and spark plug wires

6шт.

Выбрано товаров: 28
