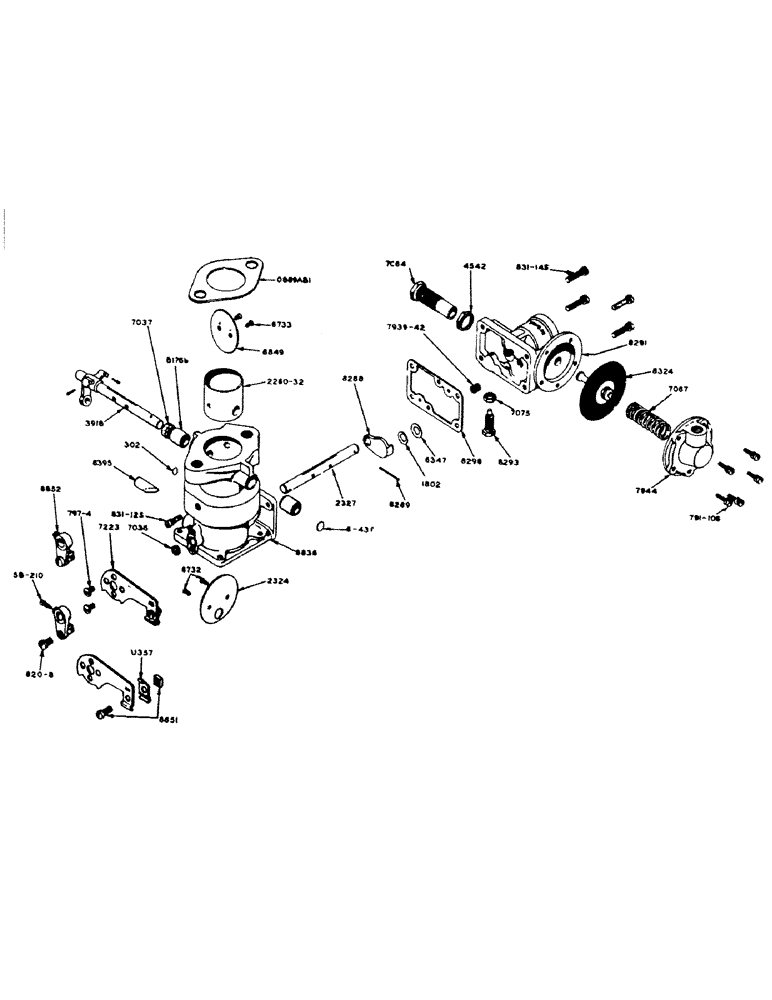

Запчасти Case IH 700 (034) - POWRDYNE GAS ENGINE, A10616 ENSIGN CARBURETOR PARTS, MODEL 1-1/4" X G--NO. 3896 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
2-70
KEY
SCREW, throttle stop adjusting
2шт.
5B210
SCREW, "B" set, choke lever
1шт.
6-43F
WELCH PLUG, 1/2" (brass)
1шт.
7C64G
SCREW, fuel adjusting
1шт.
B176B
BUSHING, throttle bearing
2шт.
302
WELCH PLUG, 3/16"
1шт.
U357
CLAMP, choke tube
1шт.
791-10S
SCREW, economizer cover and lockwasher
5шт.
797-4
SCREW, choke tube support
2шт.
820-8
SCREW, swivel, choke lever
1шт.
831-12S
SCREW, set, and lockwasher, for Venturi
1шт.
831-14S
SCREW, gas inlet, and lockwasher
4шт.
1802
TOY
WASHER, spring
1шт.
2260-32
VENTURI
1шт.
2324
LAMP
DISC, choke
1шт.
2327
ELBOW
SHAFT, choke
1шт.
3916
BUSHING
SHAFT, throttle and stop lever assembly
1шт.
4542
LOCKNUT, fuel adjusting screw
1шт.
6347
THREADED TIE-ROD
WASHER, valve lever
1шт.
6395
LOCK NUT,5/8"-11, GB
NOZZLE, balance tube
1шт.
6732
SCREW, choke shaft disc.
2шт.
6733
SCREW, throttle shaft disc.
2шт.
7036
BOLT,Hex, 1 1/4" - 12 x 3 1/2", Gr 8
WASHER, dust, choke lever
1шт.
7037
TESTER
WASHER, dust, throttle shaft
1шт.
7067
CYLINDER END CAP
SPRING, economizer
1шт.
7070
DIAPHRAGM (see 8324)
1шт.
7075
LOCTITE
LOCKNUT, starting adjusting screw
1шт.
7223
FLAP
SUPPORT, choke tube assy.
1шт.
7939-42
SCREW, bleeder
1шт.
7944
HYDRAULIC HOSE,0.50" ID x 100.00", SAE J517,SAE J516,SAE 100R17
COVER, economizer
1шт.
8288
BUSHING
LEVER, valve
1шт.
8289
WASHER
PIN, valve lever
1шт.
8291
SPINDLE
INLET, gas and economizer
1шт.
8293
CAP
SCREW, starting adjusting
1шт.
8296
DECAL
GASKET, gas inlet and economizer
1шт.
8324
TUBE
DIAPHRAGM, economizer, assy.
1шт.
8836
BEARING CUP
BODY (partial assy.)
1шт.
8849
X
DISC, throttle
1шт.
8851
SCREW, choke tube clamp, with nut
1шт.
8852
LEVER, choke, assmy
1шт.
O889AB1
X
GASKET, Serial Range: carburetor-manifold
1шт.
O8950AB
X
GASKET, carburetor adapter
1шт.
NSS
NOT SOLD SEPARAT
#12 - 24 x 5/8" rhd. mach. screw w/lockwasher
4шт.
Выбрано товаров: 43
