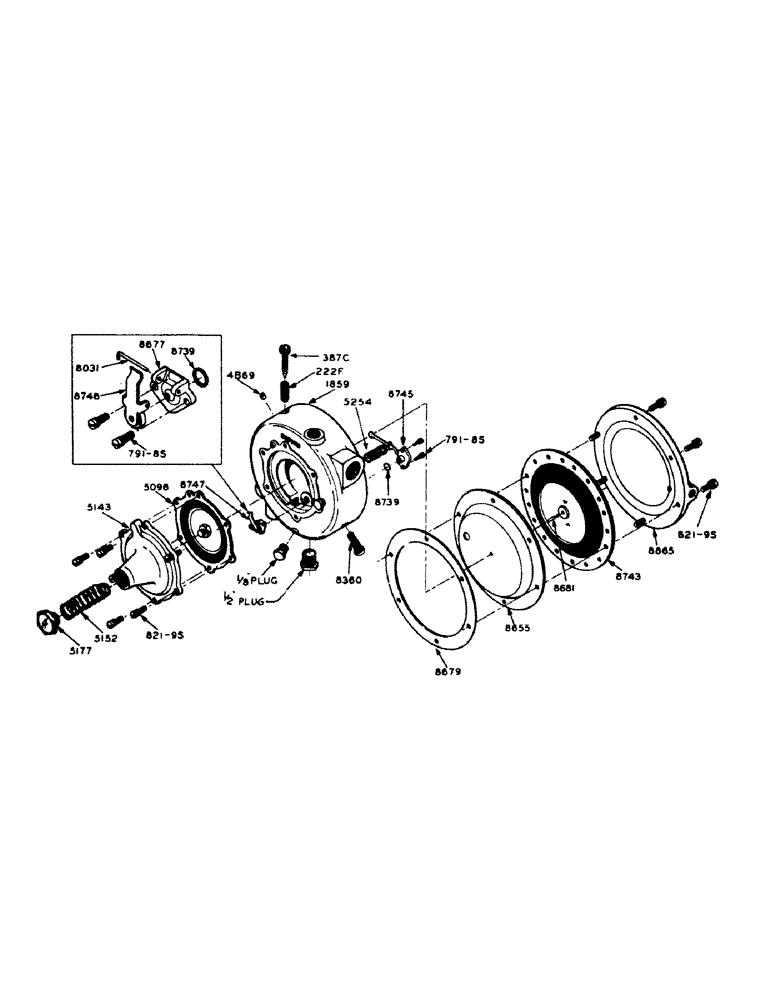

Запчасти Case IH 700 (033) - POWRDYNE GAS ENGINE, A8509 REGULATOR PARTS (02) - ENGINE

4B69

SCREW, "B" bleed

1шт.

222F

RETAINER, idle adjusting screw

1шт.

387C

SCREW, idle adjusting

1шт.

791-8S

SCREW, high and low pressure valve, with lockwasher

4шт.

821-9S

SCREW, pressure regulator spring retainer with lockwashers

6шт.

821-9S

SCREW, back cover plate, with lockwasher

6шт.

1859

U-BOLT

BODY, regulator, partial assembly

1шт.

NSS

NOT SOLD SEPARAT

3/8" pipe plug

1шт.

NSS

NOT SOLD SEPARAT

1/2" pipe plug

1шт.

2115

LOCK WASHER

KIT, repair parts, Includes: P/N 222F, P/N 387C, P/N 791-8S, P/N 821-9S, P/N 5096, P/N 5152, P/N 5254, P/N 8360, P/N 8679, P/N 8739, P/N 8743 and P/N 8747

1шт.

2444

ELEMENT

KIT, gasket (consists of 2 - 8739 and 1 - 8679)

1шт.

5096

JACK

DIAPHRAGM, pressure regulator, assembly

1шт.

5143

KIT

COVER, pressure regulator

1шт.

5152

GEAR

SPRING, pressure regulator

1шт.

5177

RETAINER, pressure regulator spring

1шт.

5254

BOLT

SPRING, low pressure valve

1шт.

8031

RIGID TUBE

PIN, pivot

1шт.

8360

STRAINER, fuel inlet, assembly

1шт.

8655

TUBE

PLATE, partition

1шт.

8677

SEAT, valve

1шт.

8679

PLUG

GASKET, partition plate

1шт.

Part of Repair Parts Kit P/N 2115

1шт.

8681

ROLLER

PIN, push

1шт.

8739

KEY

GASKET, high and low pressure valves

2шт.

8743

BEARING,15.88mm ID x 34.93mm OD x 11mm W

DIAPHRAGM, fuel regulator, assembly

1шт.

Part of Repair Parts Kit P/N 2115

1шт.

8745

BOLT

VALVE, low pressure, assembly

1шт.

8746

HYDRAULIC MOTOR

LEVER, valve, assembly

1шт.

8747

COUPLING

VALVE, high pressure, assembly

1шт.

8865

SPINDLE

PLATE, back cover

1шт.

NSS

NOT SOLD SEPARAT

1/8" pipe plug

1шт.
