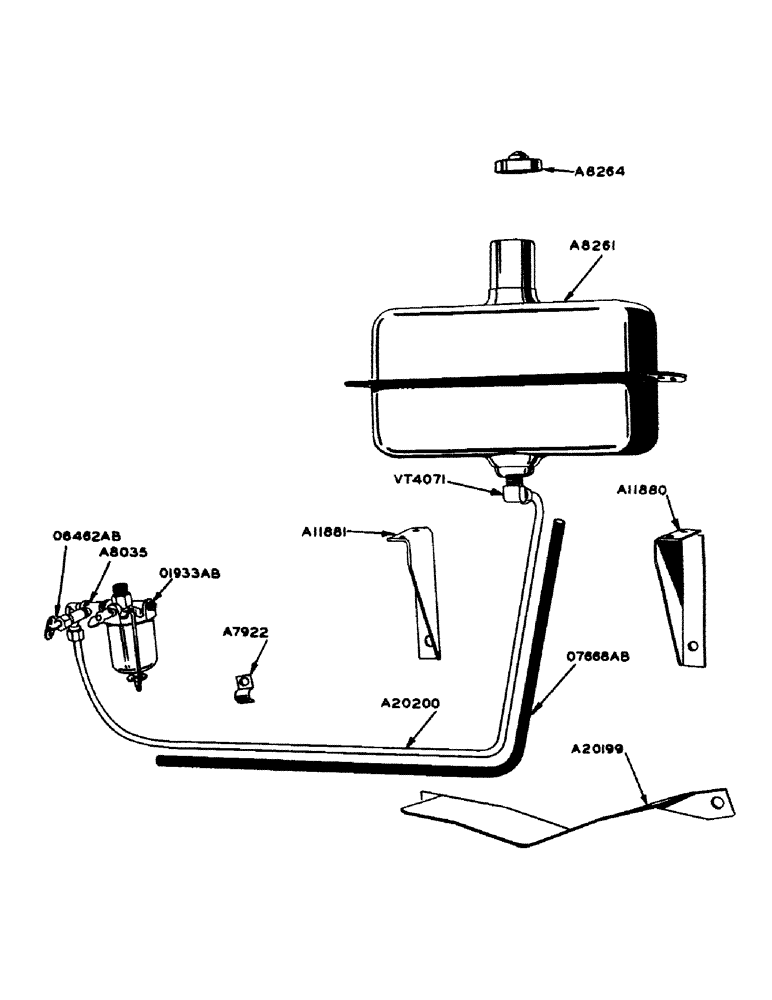

Запчасти Case IH 700 (028) - POWRDYNE GAS ENGINE, STARTING TANK FOR LOW COST FUEL (02) - ENGINE

A7922

CLIP

for A20200 tube, on fuel tank front support

1шт.

A8035

X

TEE, imperial #127B

1шт.

A8261

TANK, fuel, auxiliary

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex bolt w/hex. nut and lockwasher

4шт.

A8264

CAP, auxiliary fuel tank

1шт.

A11880

SUPPORT, auxiliary fuel tank, front

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt w/lockwasher

1шт.

A11881

SUPPORT, auxiliary fuel tank, rear

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt w/lockwasher

1шт.

A20199

PAN, drip

1шт.

A20200

TUBE, needle, Serial Range: valve-tank

1шт.

O6462AB

VALVE, needle, tube to fuel strainer

1шт.

O7668AB

LOOM, for tube from auxiliary, Serial Range: tank-strainer

1шт.

VT4071

ELBOW, with fuel filter

1шт.
