(027) - POWRDYNE GAS ENGINE, PARTS FOR 01933AB FUEL STRAINER

Запчасти Case IH 700 (027) - POWRDYNE GAS ENGINE, PARTS FOR 01933AB FUEL STRAINER (02) - ENGINE

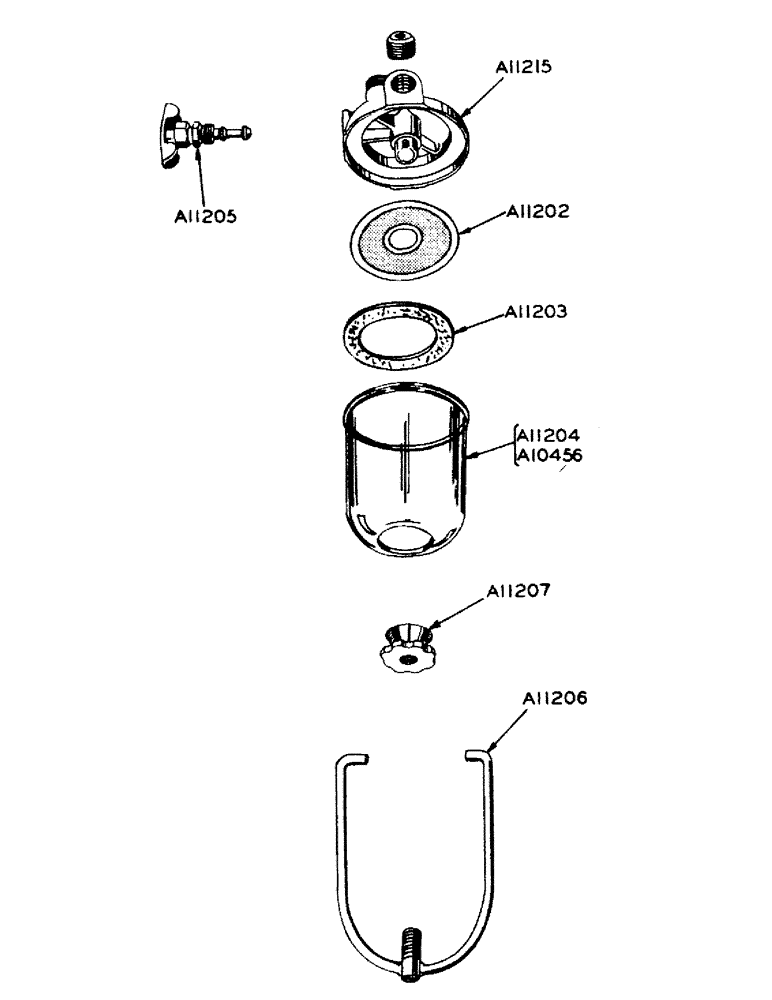

Схема запчастей Case IH 700 - (027) - POWRDYNE GAS ENGINE, PARTS FOR 01933AB FUEL STRAINER (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A10456

BOWL, metal (special for use with mounted corn and cotton pickers) (see A11204)

1шт.

A11202

SCREEN

ASSEMBLY

1шт.

A11203

GASKET

cork

1шт.

A11204

BOWL

glass (see A10456)

1шт.

A11205

VALVE

needle, assembly

1шт.

A11206

BAIL

ASSEMBLY

1шт.

A11207

NUT

CUP AND NUT, assembly

1шт.

A11215

BODY

strainer

1шт.
