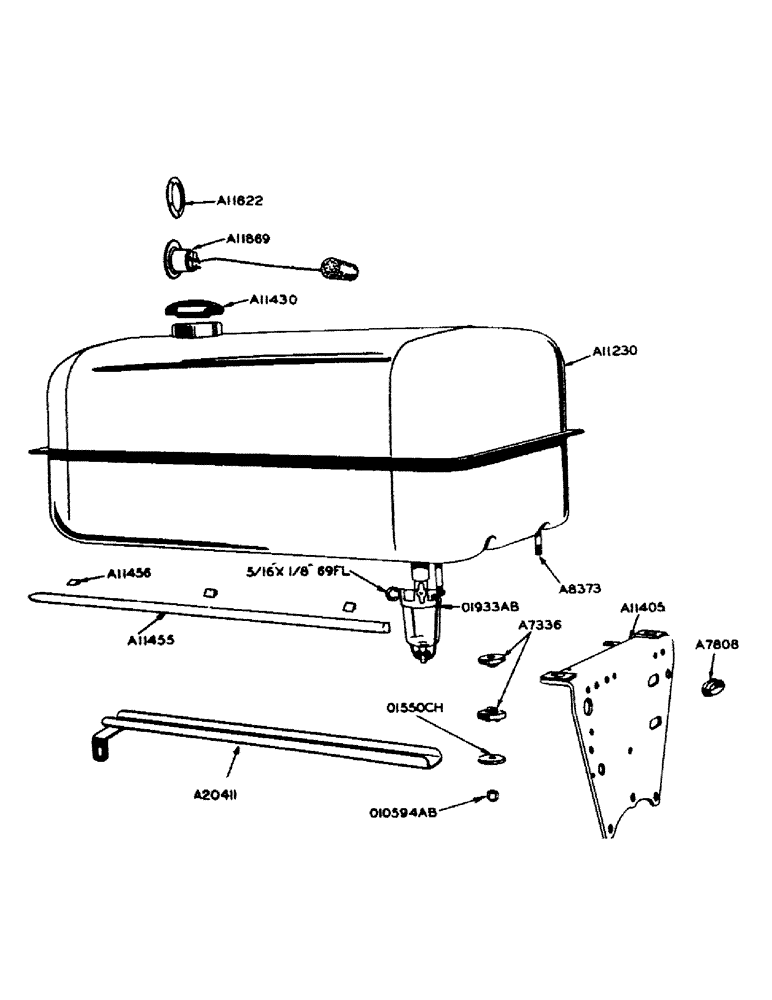

Запчасти Case IH 700 (026) - POWRDYNE GAS ENGINE, FUEL TANK (02) - ENGINE

A7336

CUSHION

fuel tank support (rubber)

6шт.

A7808

GROMMET

fuel tube, on fuel tank front support

1шт.

A8373

STUD

fuel tank mounting

3шт.

A8461

TUBE, fuel, Serial Range: stainer-carburetor

1шт.

NSS

NOT SOLD SEPARAT

Imperial flex. elbow no. 69FL (5/16" tube size x 1/8" P.T.)

2шт.

A11230

TANK

fuel, Serial Range: (prior-SN8140001)

1шт.

A11393

SUPPORT, steering column and fuel tank

1шт.

A11405

SUPPORT, fuel tank, front

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

3шт.

A11430

CAP, fuel tank

1шт.

A11455

MOLDING

trim, side of fuel tank

2шт.

A11456

LOCK PIN

CLIP, fuel tank molding

6шт.

A11822

GASKET

fuel tank sending gauge

1шт.

A11869

X

SENDER, fuel gauge

1шт.

NSS

NOT SOLD SEPARAT

#10-32 x 7/16" rhd. mach. screw (zinc plated)

4шт.

NSS

NOT SOLD SEPARAT

#10 LOCKWASHER

4шт.

A20411

CONDUIT, R.H. assembly (SN8140001 and after)

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 N.C. hex nut w/lockwasher

2шт.

A20420

FUEL TANK

TANK, fuel (SN8140001 and after)

1шт.

A20619

GASKET

gas cap assembly

1шт.

O1933AB

X

STRAINER, fuel

1шт.

NSS

NOT SOLD SEPARAT

1/8" sq. hd. pipe plug

1шт.

O10594AB

X

STOP NUT, elastic, fuel tank mounting stud (3/8" - 24 N.F. thrd.)

3шт.

O1558CH

X

WASHER, fuel tank mounting stud

3шт.
