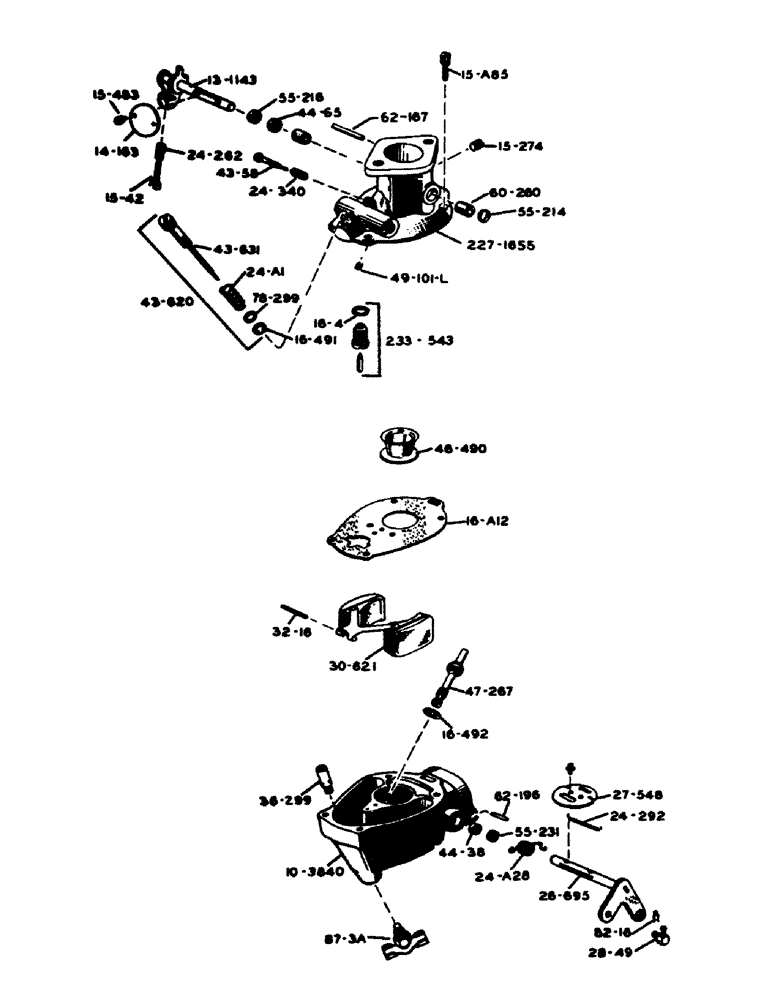

Запчасти Case IH 700 (022) - SPARK IGNITION ENGINE, A20685 MARVEL-SCHEBLER CARBURETOR, MODEL TSX-782 (02) - ENGINE

10-3840

BODY ASSEMBLY

1шт.

13-1143

SHAFT, throttle, and lever assembly

1шт.

Included in 286-1277 service parts kit

1шт.

14-163

SHAFT

FLY, throttle

1шт.

15-42

SCREW, throttle adjusting (#8-32 x 3/4" fill. head)

1шт.

15-A85

SCREW, throttle, Serial Range: body-bowl

4шт.

15-274

SCREW, (5/16" - 24 headless plug)

1шт.

15-483

SCREW, choke fly (#6-32 x 1/4" binding head)

2шт.

Included in 286-1277 service parts kit

1шт.

15-483

SCREW, throttle fly (#6-32 x 1/4" binding head)

2шт.

Included in 286-1277 service parts kit

1шт.

16-4

GASKET, float valve seat

1шт.

Included in 16-594 gasket set

1шт.

16-A12

GASKET, throttle, Serial Range: body-bowl

1шт.

Included in 16-594 gasket set

1шт.

16-491

GASKET, main adjusting needle

1шт.

Included in 16-594 gasket set

1шт.

16-492

X

GASKET, nozzle

1шт.

Included in 16-594 gasket set

1шт.

16-594

GASKET SET, Includes: P/N 16-4, 16-A12, 16-491 and 16-492

1шт.

Included in 286-1277 service parts kit

1шт.

24-A1

SPRING, main adjusting needle packing

1шт.

24-A28

SPRING, choke return

1шт.

Included in 286-1277 service parts kit

1шт.

24-262

SPRING, throttle stop screw

1шт.

24-292

SPRING, choke fly flapper

1шт.

24-340

SPRING, idle needle

1шт.

Included in 286-1277 service parts kit

1шт.

26-695

SHAFT, choke, and lever assembly

1шт.

27-548

FLY, choke, assembly

1шт.

28-49

SWIVEL, choke

1шт.

30-621

FLOAT AND LEVER ASSEMBLY

1шт.

32-16

SHAFT, float lever

1шт.

Included in 286-1277 service parts kit

1шт.

36-299

SEAT, main adjusting needle

1шт.

Included in 286-1277 service parts kit

1шт.

43-58

NEEDLE, idle adjusting

1шт.

Included in 286-1277 service parts kit

1шт.

43-620

NEEDLE, main adjusting, assembly, complete

1шт.

43-631

NEEDLE, main adjusting, assembly

1шт.

44-38

PACKING, choke shaft

1шт.

44-65

PACKING, throttle shaft

1шт.

Included in 286-1277 service parts kit

1шт.

46-490

VENTURI (1-1/16" dia. throat)

1шт.

47-267

NOZZLE, main

1шт.

49-101-L

JET, idle

1шт.

Included in 286-1277 service parts kit

1шт.

55-214

CUP, throttle shaft

1шт.

Included in 286-1277 service parts kit

1шт.

55-216

RETAINER, throttle shaft packing

1шт.

Included in 286-1277 service parts kit

1шт.

55-231

RETAINER, choke shaft packing

1шт.

60-260

BUSHING, throttle shaft

2шт.

Included in 286-1277 service parts kit

1шт.

62-167

PIN, throttle stop

1шт.

62-196

PIN, choke stop

1шт.

78-299

WASHER, main adjusting needle

1шт.

82-16

COTTER, hair pin, choke swivel

1шт.

87-3A

COCK, drain

1шт.

227-1655

BODY AND BOWL COVER ASSEMBLY, throttle

1шт.

233-543

VALVE AND SEAT ASSEMBLY, float

1шт.

Included in 286-1277 service parts kit

1шт.

286-1277

KIT, service parts, Includes: P/N 13-1143, 15-483, 16-594, 24-A28, 24-340, 32-16, 36-299, 43-58, 44-38, 44-65, 49-101-L, 55-214, 55-216, 55-231, 60-260 and 233-543

1шт.

A7612

CHOKE CONTROL

1шт.

A20685

CARBURETOR

Marvel-Schebler model TSX-782 (replaces A7777 TSX616 after present stocks are exhausted)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

No. 8-32 x 3/8" rhd. mach. screw w/nut and lockwasher

1шт.

O889AB1

X

GASKET, Serial Range: carburetor-manifold

1шт.

O4591AB1

CLIP, choke control

1шт.

NSS

NOT SOLD SEPARAT

No. 10 x 3/4" N.C. rhd. mach. screw w/nut and lockwasher

1шт.

O8813AB

LOOM, choke control (48" long)

1шт.
